Atco Royale 30 - F016310242 - Cutter Assembly

Atco Royale 30 - F016310242 - Cutter Assembly

Description

Atco Royale 30

Article number: F016310242

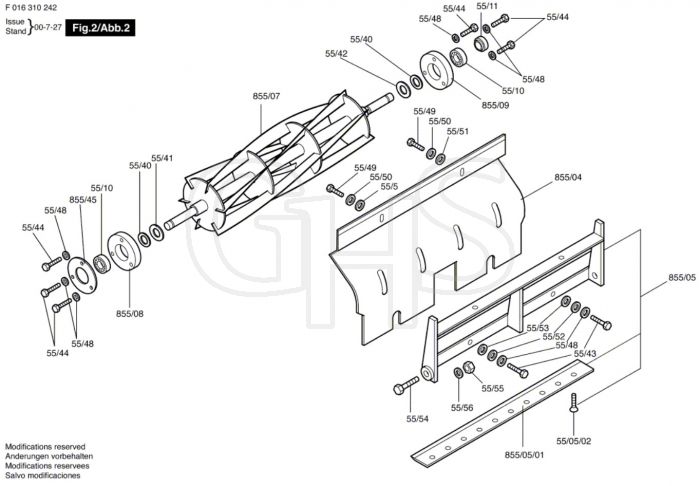

Cutter Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	5510		ALL13786 Out of stock	Ball Bearings		£20.34 £16.95
	5511		ALL20310 Out of stock	Spacer Ring		£11.68 £9.73
	5540		ALF016A58577 Out of stock	Washer M 20		£1.98 £1.65
	5541		ALF016L12531 Out of stock	Washer		£1.62 £1.35
	5542		ALF016L13787 Out of stock	Washer What 19		£20.74 £17.28
	5543		ALF016L20252 Out of stock	Screw 5/16 Unf x 5/8		£2.46 £2.05
	5544		ALF016L20253 Out of stock	Screw		£1.10 £0.92
	5548		ALF016L18181 Out of stock	Lock Washer 1/2"		£1.80 £1.50
	5552		ALF016L12918 Out of stock	Washer		£2.50 £2.08
	5554		ALL20334 Out of stock	Barrel Bolt		£21.64 £18.03
	85504		ALL36453 In stock	Sheet Metal		£39.78 £33.15
	85507		ALF016L20748 Out of stock	Spindle		£766.52 £638.77
	85508		ALL20753 Out of stock	Ring		£74.14 £61.78
	85509		ALL20751 Out of stock	Ring		£74.14 £61.78
	85545		ALL13401 Out of stock	Washer		£21.98 £18.32
	550502		ALF016L20363 In stock	Screw		£5.96 £4.97
	8550501		ALF016101021 In stock	Lower Knife		£146.70 £122.25

Description

Atco Royale 30

Article number: F016310242

Cutter Assembly - Parts Diagram
