Atco Royale 20 - F016310042 - Front Roller Assembly

Description

Atco Royale 20

Article number: F016310042

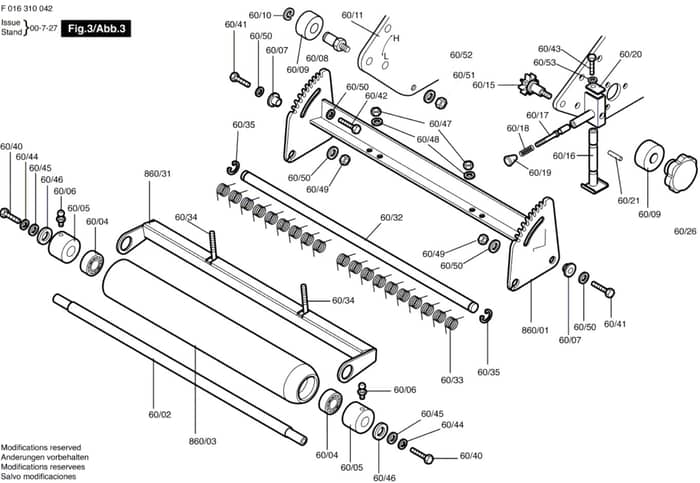

Front Roller Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
6002	ALF016L59880 Out of stock	Spindle	£36.30 £30.25
6005	BQF016L59886 Out of stock	Spacer	£18.37 £15.31
6006	BQF016L17057 Out of stock	Nipples	£1.72 £1.43
6007	ALF016L59599 Out of stock	Roller Pivot	£12.48 £10.40
6008	ALL37200 Out of stock	Bolts	£35.36 £29.47
6009	ALW25222 In stock	Rubber Buffers	£12.48 £10.40
6010	ALF016L24960 In stock	Clip	£3.82 £3.18
6011	ALF016L59658 Out of stock	Label	£3.98 £3.32
6015	ALF016L59686 In stock	Pinion	£65.44 £54.53
6016	ALF016L59907 Out of stock	Strut	£25.36 £21.13
6017	ALF016L59899 Out of stock	Locking Pin	£9.24 £7.70
6018	ALF016L59905 Out of stock	Spring	£6.50 £5.42
6019	ALF016L59904 In stock	Sealing Cap	£12.62 £10.52
6021	ALF016T48332 Out of stock	Bolts	£1.10 £0.92
6026	ALF016L59603 In stock	Button	£23.30 £19.42
6032	ALF016L59618 Out of stock	Retaining Strip	£43.70 £36.42
6033	ALF016A57887 In stock	Spring	£2.60 £2.17
6034	ALF016L59615 In stock	Bolts	£20.30 £16.92
6035	ALF016L08585 In stock	Safety Clip 1/2"	£1.48 £1.23
6040	ALF016L20461 Out of stock	Screw	£2.46 £2.05
6041	ALF016W25213 In stock	Hexagon Screw Was 170	£3.08 £2.57
6043	ALF016L35326 Out of stock	Self-Tapping Screw	£1.10 £0.92
6045	ALF016L09966 Out of stock	Washer	£2.46 £2.05
6046	ALF016L59557 In stock	Washer	£13.38 £11.15
6047	ALF016L35457 In stock	Nut M8	£2.46 £2.05
6048	ALF016L35411 Out of stock	Washer 8.5mm	£1.18 £0.98
6051	ALF016L18018 Out of stock	Nut	£2.46 £2.05
6053	ALF016L35389 Out of stock	Lock Washer	£1.40 £1.17
86001	ALF016102235 Out of stock	Roller Carrier	£49.40 £41.17
