Atco Club B20 - F016L80907 - Drive Assembly

Name: Atco Club B20 - F016L80907 - Drive Assembly
SKU: club_b20_f016l80907_drive_assy-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Club B20 - F016L80907 - Drive Assembly

Description

Atco Club B20

Article number: F016L80907

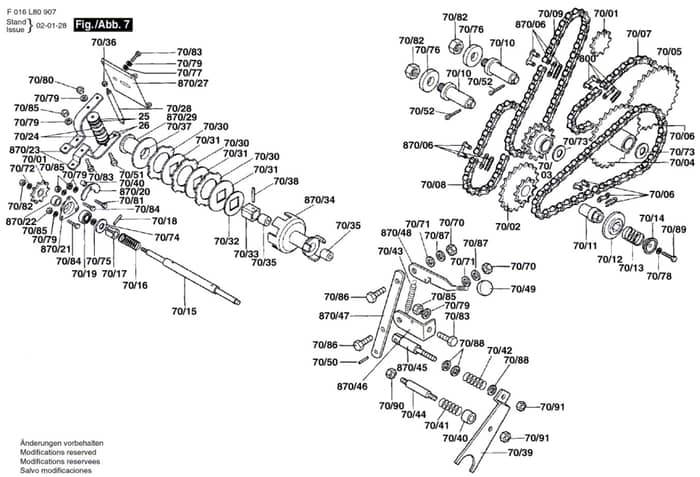

Drive Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
7001	ALF016L12433	Sprocket	Out of stock	£29.64 £24.70
7002	ALF016L20312	Sprocket	Out of stock	£337.62 £281.35
7004	ALF016L20321	Sprocket	Out of stock	£193.20 £161.00
7005	ALF016L20327	Transport Rail	Out of stock	£110.84 £92.37
7006	ALF016L66785	Chain 1/2" N-38	Out of stock	£81.84 £68.20
7007	ALF016L66786	Chain 1/2" N-34	Out of stock	£63.43 £52.86
7008	ALF016L66787	Chain 1/2" N-28	In stock	£92.27 £76.89
7009	ALF016L66788	Chain 1/2" N-43	In stock	£86.66 £72.22
7010	ALL20333	Shaft	Out of stock	£90.20 £75.17
7011	ALL20315	Cuff	In stock	£62.40 £52.00
7012	ALL20314	Driver	In stock	£93.48 £77.90
7013	ALF016L12757	Spring	Out of stock	£12.91 £10.76
7014	ALL20316	Washer	Out of stock	£2.89 £2.41
7015	ALL20297	Clutch Shaft	Out of stock	£110.84 £92.37
7016	ALL35789	Compression Spring	Out of stock	£13.99 £11.66
7017	ALL09422	Adjustment Sleeve	Out of stock	£10.06 £8.38
7018	ALF016L09498	Taper Pin	Out of stock	£5.95 £4.96
7019	ALF016L03729	Ball Bearings	Out of stock	£65.44 £54.53
7024	ALF016L10198	Washer	Out of stock	£2.88 £2.40
7028	ALL21862	Bolts	Out of stock	£12.40 £10.33
7030	ALL12661	Friction Disc	In stock	£35.09 £29.24
7031	ALL33634	Washer	Out of stock	£13.36 £11.13
7032	ALL12662	Washer	Out of stock	£5.00 £4.17
7033	ALL21176	Drive Plate	Out of stock	£24.86 £20.72
7035	ALF016L13440	Socket	Out of stock	£7.94 £6.62
7037	ALF016L03958	Bearing Bush 19x22x16mm	Out of stock	£8.29 £6.91
7038	ALF016L16272	Bolts	Out of stock	£3.32 £2.77
7039	ALL12755	Clutch Fork	Out of stock	£31.06 £25.88
7041	ALF016L12380	Contact Tab	Out of stock	£12.70 £10.58
7042	ALF016L12656	Spring	Out of stock	£13.44 £11.20
7043	ALF016L12774	Spring Lever	Out of stock	£13.34 £11.12
7044	ALL21507	Bearing Journal	Out of stock	£19.82 £16.52
7049	ALF016L20418	Button	Out of stock	£10.76 £8.97
7050	ALF016L12750	Bearing Journal Was 90	Out of stock	£1.40 £1.17
7051	ALL20305	Bearing Pin	Out of stock	£17.56 £14.63
7052	ALF016L13230	Split Pin	Out of stock	£2.46 £2.05
7070	ALF016L06955	Lock Nut 5/16 Unf	Out of stock	£1.78 £1.48
7071	ALF016L10273	Lock Washer	Out of stock	£1.14 £0.95
7072	ALF016L12381	Lock Washer	Out of stock	£1.40 £1.17
7073	ALL13233	Washer	Out of stock	£2.60 £2.17
7076	ALF016L13237	Washer	Out of stock	£2.58 £2.15
7078	ALF016L18174	Lock Washer	Out of stock	£2.46 £2.05
7081	ALF016L18730	Screw	Out of stock	£1.78 £1.48
7084	ALF016L20253	Screw	Out of stock	£1.14 £0.95
7089	ALF016L18167	Screw 1/4 Unf x 1/2	Out of stock	£2.46 £2.05
7091	ALF016L20338	Clamping Nut	Out of stock	£1.42 £1.18
87006	ALF016L21249	Chain Lock	In stock	£10.31 £8.59
87020	ALF016100712	Spigot	Out of stock	£6.84 £5.70
87021	ALF016L65640	Storekeeper	Out of stock	£16.14 £13.45
87022	ALL12434	Claw Ring	Out of stock	£9.58 £7.98
87023	ALF016L65618	Clutch Fork	Out of stock	£26.00 £21.67
87027	ALL12798	Mounting Bracket	Out of stock	£8.96 £7.47
87029	ALF016L20300	Switching Ring	Out of stock	£119.42 £99.52
87034	ALF016L12964	Drive Device	Out of stock	£157.32 £131.10
87045	ALL20414	Tie Rod End	Out of stock	£21.31 £17.76
87046	ALL12749	Spigot	Out of stock	£7.10 £5.92
87048	ALF016J10129	Lever	Out of stock	£19.78 £16.48
