Atco Club 20 - F016312142 - Main Assembly

Name: Atco Club 20 - F016312142 - Main Assembly
SKU: club_20_f016312142_main_assy-group
Price: 0.84 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Atco Club 20 - F016312142 - Main Assembly

Description

Atco Club 20

Article number: F016312142

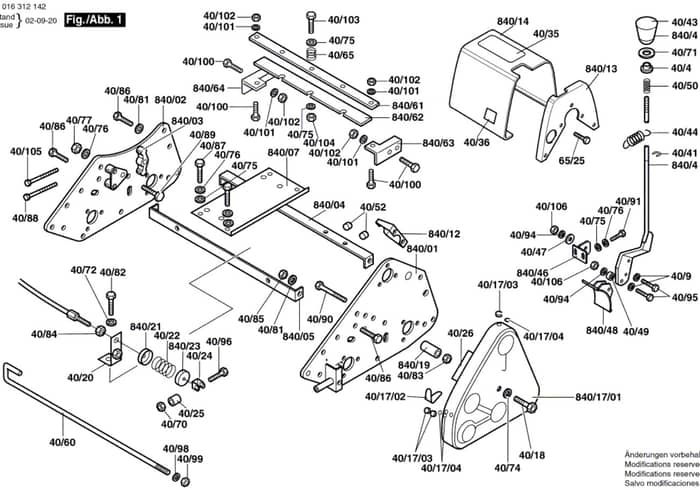

Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
4018	ALF016L20336	Special Nut	In stock	£8.77 £7.31
4020	ALF016L66048	Holding Arm	Out of stock	£12.02 £10.02
4022	ALF016L09482	Spring	Out of stock	£9.86 £8.22
4024	ALF016L66085	Clevis	Out of stock	£8.00 £6.67
4025	ALL34691	Washer	Out of stock	£5.50 £4.58
4026	ALF016L12766	Label	Out of stock	£14.05 £11.71
4035	ALF016L61021	Sign	Out of stock	£20.16 £16.80
4036	ALF016L63202	Adhesive Sign	Out of stock	£18.53 £15.44
4041	ALF016L59709	Safety Clip	Out of stock	£2.60 £2.17
4043	ALF016L59921	Adhesive Sign	Out of stock	£16.99 £14.16
4044	ALF016L36810	Spring	Out of stock	£17.57 £14.64
4047	ALF016L36820	Eccentric Disc	Out of stock	£16.14 £13.45
4049	ALF016L36826	Washer	Out of stock	£7.27 £6.06
4050	ALF016L37756	Spring	Out of stock	£3.44 £2.87
4052	ALF016L63773	Plugs	Out of stock	£9.85 £8.21
4060	ALL33683	Pull Rod	Out of stock	£42.02 £35.02
4065	ALF016L09854	Compression Spring	Out of stock	£3.02 £2.52
4070	ALF016L59926	Lock Nut	Out of stock	£2.45 £2.04
4071	ALF016L09685	Washer 1.213x630x028	Out of stock	£4.84 £4.03
4072	ALF016L11107	Lock Washer	Out of stock	£1.14 £0.95
4074	ALF016L12635	Washer 0.38mm	Out of stock	£1.40 £1.17
4075	ALF016L13811	Washer	Out of stock	£2.46 £2.05
4076	ALF016L18028	Spring Washer	In stock	Was £1.40 £1.17 Special Price £1.01 £0.84
4077	ALF016L18048	Nut	Out of stock	£2.46 £2.05
4081	ALF016L18182	Spring Washer 1/2"	Out of stock	£2.58 £2.15
4082	ALF016L18408	Hexagon Screw	Out of stock	£1.36 £1.13
4083	ALF016L18609	Nut	Out of stock	£2.58 £2.15
4084	ALF016L18723	Clamping Nut	Out of stock	£1.10 £0.92
4085	ALF016L20239	Nut 1/2"	Out of stock	£2.46 £2.05
4086	ALF016L20344	Screw	Out of stock	£3.32 £2.77
4087	ALF016L20345	Screw	Out of stock	£1.40 £1.17
4088	ALF016L20375	Adjusting Screw	Out of stock	£17.04 £14.20
4089	ALF016L20376	Bearing Journal	Out of stock	£27.06 £22.55
4090	ALF016L20388	Barrel Bolt	Out of stock	£2.18 £1.82
4091	ALF016L20402	Screw	Out of stock	£2.26 £1.88
4094	ALF016T40590	Washer Ø8.15mm	Out of stock	£1.14 £0.95
4095	ALF016W25673	Barrel Bolt	Out of stock	£1.40 £1.17
4096	ALF016W25710	Hexagon Screw	Out of stock	£3.08 £2.57
4098	ALF016L18129	Washer 12.1x6.4x1.5	Out of stock	£1.42 £1.18
4099	ALF016L35329	Nut M6	In stock	Was £2.46 £2.05 Special Price £1.19 £0.99
6525	ALF016L20407	Screw 5/16 Unpa x3/4	Out of stock	£1.14 £0.95
40100	ALF016L20252	Screw 5/16 Unf x 5/8	Out of stock	£2.46 £2.05
40101	ALF016L18181	Lock Washer 1/2"	Out of stock	£1.81 £1.51
40102	ALF016L20303	Nut 5/16-Unf D/C	Out of stock	£2.46 £2.05
40103	ALF016L20472	Screw	Out of stock	£2.26 £1.88
40104	ALF016L06956	Lock Nut	Out of stock	£1.78 £1.48
40105	ALL33701	Screw	Out of stock	£23.81 £19.84
40106	ALF016L11218	Lock Nut M8	Out of stock	£1.40 £1.17
84003	ALF016L12805	Locking Lever	In stock	£17.30 £14.42
84012	ALF016100714	Coupling Clip	Out of stock	£23.16 £19.30
84013	ALF016L65624	Support Bracket	Out of stock	£24.40 £20.33
84021	ALF016L22615	Spigot	Out of stock	£10.36 £8.63
84023	ALL22614	Spigot	Out of stock	£12.60 £10.50
84046	ALF016L36817	Holding Arm	Out of stock	£41.32 £34.43
84048	ALF016L36822	Brake Shoe	Out of stock	£80.92 £67.43
84061	ALF016L66083	Scraper	Out of stock	£23.42 £19.52
401702	ALL20319	Plate	In stock	Was £3.30 £2.75 Special Price £2.38 £1.98
401703	ALF016L16703	Oil Tank	Out of stock	£8.77 £7.31
401704	ALF016T49100	Collar 12mm T40	In stock	£2.58 £2.15
8401701	ALF016L65616	Chain Cover	Out of stock	£55.98 £46.65
