Atco Balmoral 17S - Up to 002848A - Drive Assembly

Atco Balmoral 17S - Up to 002848A - Drive Assembly
Atco Balmoral 17S - Up to 002848A - Drive Assembly

Description

Atco Balmoral 17S

Article number: Up to 002848A

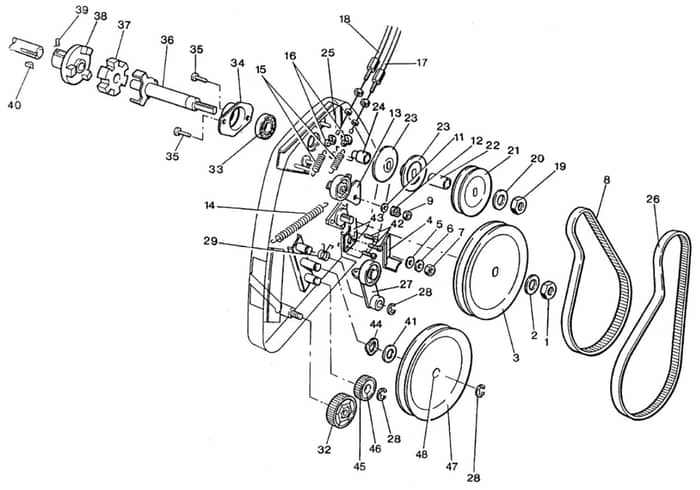

Drive Assembly - Parts Diagram

Ref. Img. Part No. Details
  1 Nut M12 Nyloc
Nut M12 Nyloc
ALF016L23210 In stock
Nut M12 Nyloc
£2.53 £2.11

  2 Washer (Crankshaft)
Washer (Crankshaft)
ALF016L17849 Out of stock
Washer (Crankshaft)
£0.76 £0.63

  3
ALF016A58578 In stock
£65.46 £54.55

  5 Washer
Washer
BQF016T48531 Out of stock
Washer
£0.67 £0.56

  6 Washer Spring 5/16 Sw Sec
Washer Spring 5/16 Sw Sec
ALF016L35307 In stock
Washer Spring 5/16 Sw Sec
£1.58 £1.32

  7 Nut M8
Nut M8
ALF016L35457 In stock
Nut M8
£2.46 £2.05

  8 Belt
Belt
ALF016A58728 In stock
Belt
£27.32 £22.77

  9 Nut M6
Nut M6
ALF016L35329 In stock
Nut M6
Was £2.46 £2.05 Special Price £1.19 £0.99

  11 Washer Plain
Washer Plain
ALF016L35316 In stock
Washer Plain
£3.12 £2.60

  12 Washer Spring
Washer Spring
ALF016L10273 Out of stock
Washer Spring
£1.10 £0.92

  14 Spring Return
Spring Return
ALF016A58046 Out of stock
Spring Return
£5.20 £4.33

  15 Spring (Control Cable)
Spring (Control Cable)
ALF016L08487 In stock
Spring (Control Cable)
£7.04 £5.87

  16 Cable Shackle
Cable Shackle
ALF016L66172 In stock
Cable Shackle
£3.24 £2.70

  17 Cable Clutch Land Drive
Cable Clutch Land Drive
ALF016A58035 In stock
Cable Clutch Land Drive
£17.68 £14.73

  18 Use F016A58036 x 1 (Cable Clutch Cy
Use F016A58036 x 1 (Cable Clutch Cy
ALF016A58036 In stock
Use F016A58036 x 1 (Cable Clutch Cy
£20.48 £17.07

  19 Nut
Nut
BQF016L18605 Out of stock
Nut
£0.82 £0.68

  20
BQF016A57907 Out of stock
£0.82 £0.68

  21 Pulley
Pulley
ALF016L09227 In stock
Pulley
£30.70 £25.58

  24 Spacer Short
Spacer Short
ALF016A57780 In stock
Spacer Short
£5.64 £4.70

  25 Use F016A58340 x 1 (Release Pin Ass
Use F016A58340 x 1 (Release Pin Ass
ALF016P75399 In stock
Use F016A58340 x 1 (Release Pin Ass
£16.60 £13.83

  26 Belt Cylinder
Belt Cylinder
ALF016A57941 In stock
Belt Cylinder
£38.80 £32.33

  27 Jockey Arm
Jockey Arm
ALF016A58991 In stock
Jockey Arm
£75.60 £63.00

  28 Clip E
Clip E
ALF016A57759 In stock
Clip E
£2.11 £1.76

  29 Spring Return
Spring Return
BQF016A57996 Out of stock
Spring Return
£1.15 £0.96

  32 Gear Cylinder
Gear Cylinder
ALF016A57590 In stock
Gear Cylinder
£44.12 £36.77

  33 Bearing
Bearing
ALF016A57838 In stock
Bearing
£22.14 £18.45

  35 Screw
Screw
ALF016L35387 In stock
Screw
£2.46 £2.05

  37 Rubber Coupling
Rubber Coupling
ALF016L09518 In stock
Rubber Coupling
£13.62 £11.35

  38 Engine Coupling Opc-Pun
Engine Coupling Opc-Pun
BQF016S10270 Out of stock
Engine Coupling Opc-Pun
£0.00 £0.00

  39 Screw 5/16Unfx5/16 Socket
Screw 5/16Unfx5/16 Socket
ALF016L20896 Out of stock
Screw 5/16Unfx5/16 Socket
£5.20 £4.33

  40 Key Engine Elcom
Key Engine Elcom
BQF016L34001 Out of stock
Key Engine Elcom
£2.56 £2.13

  41 Washer 1.213 x630x028
Washer 1.213 x630x028
ALF016L09685 Out of stock
Washer 1.213 x630x028
£4.68 £3.90

  42 Use F016A57756 x 1 (Screw M5)
Use F016A57756 x 1 (Screw M5)
ALF016A57756 In stock
Use F016A57756 x 1 (Screw M5)
£1.55 £1.29

  46 Bush
Bush
ALF016A57761 In stock
Bush
£22.52 £18.77

  47 Pulley & Gear Assy
Pulley & Gear Assy
ALF016A58667 In stock
Pulley & Gear Assy
£71.34 £59.45


Description

Atco Balmoral 17S

Article number: Up to 002848A

Drive Assembly - Parts Diagram
