Atco Admiral 16SE - F016509242 - Drive Assembly

Atco Admiral 16SE - F016509242 - Drive Assembly

Description

Atco Admiral 16SE

Article number: F016509242

Drive Assembly - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	51		BQF016103832 Out of stock	Reel		£21.26 £17.72
	52		BQF016T48437 Out of stock	Roller Shaft		£10.25 £8.54

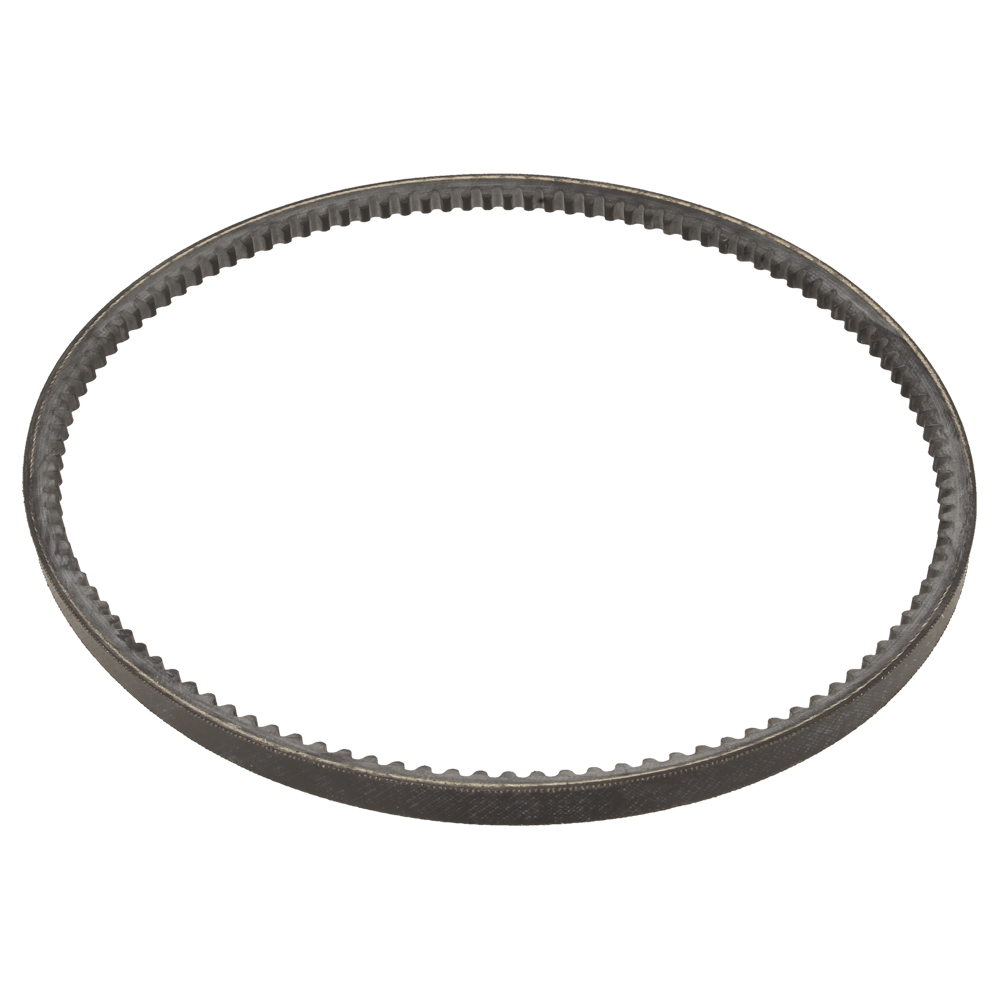

	113		3616 Out of stock	Main Drive Belt		£11.52 £9.60
	114		BQF016T48516 Out of stock	Washer		£1.18 £0.98

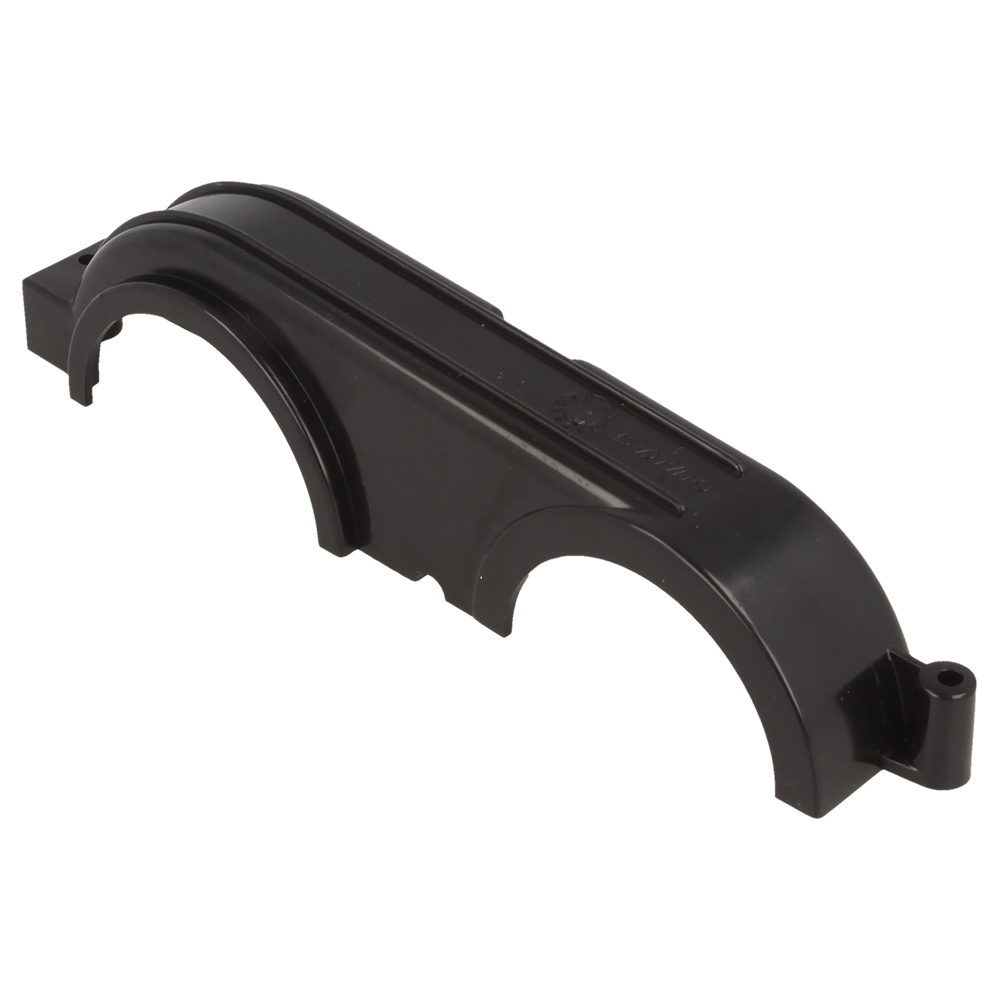

	115		BQF016T48518 Out of stock	Belt Guard		£6.78 £5.65
	510		ALF016T48457 Out of stock	Screw M6		£2.46 £2.05
	512		BQF016L36243 Out of stock	Bearing Bush		£4.39 £3.66
	547		BQF016T48766 Out of stock	Bearing Bush		£1.18 £0.98
	548		ALF016L36483 Out of stock	Coiled Spring Pin		£2.30 £1.92
	4026		ALF016T45870 Out of stock	Retaining Clip		£1.34 £1.12
	4027		ALF016T48549 In stock	Collar		£2.58 £2.15
	5411		BQF016T48517 Out of stock	Washer		£2.63 £2.19

Description

Atco Admiral 16SE

Article number: F016509242

Drive Assembly - Parts Diagram
