Allett Stirling 51 Handle Assembly

Allett Stirling 51 Handle Assembly
Allett Stirling 51 Handle Assembly

Description

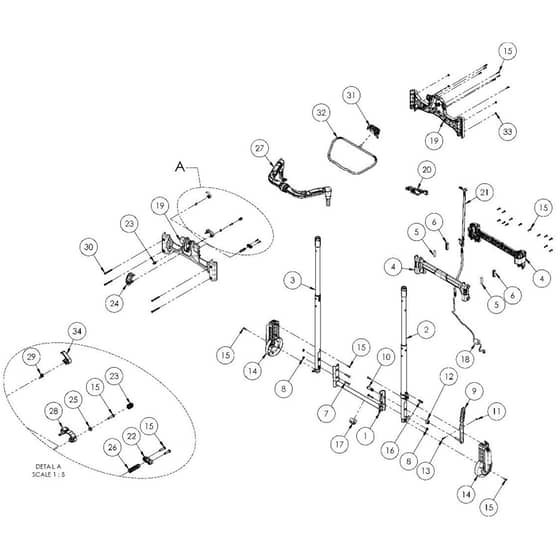

Allett Stirling 51 Cordless Cylinder Mower - Handle Assembly Parts Diagram

Model: STIR51

Motor: 56 Volt Lithium-Ion Battery

Serial Number: 1-21-0001 onward

Ref. Img. Part No. Details
  1 Spindle Assy
Spindle Assy
ALF016J13508 Out of stock
Spindle Assy
£68.68 £57.23

  2 Telescope Tube
Telescope Tube
ALF016J13516 Out of stock
Telescope Tube
£46.62 £38.85

  3 Telescope Tube
Telescope Tube
ALF016J13526 Out of stock
Telescope Tube
£36.79 £30.66

  4 Beam Assembly
Beam Assembly
ALF016J13527 Out of stock
Beam Assembly
£137.34 £114.45

  5 Rubber Block
Rubber Block
ALF016J13528 Out of stock
Rubber Block
£1.24 £1.03

  6 Clamp Block
Clamp Block
ALF016J13529 Out of stock
Clamp Block
£1.22 £1.02

  7 Square Neck Bolt
Square Neck Bolt
ALF016J13513 Out of stock
Square Neck Bolt
£1.15 £0.96

  8 Prevailing Torque Hexagon Nut
Prevailing Torque Hexagon Nut
ALF016J13512 Out of stock
Prevailing Torque Hexagon Nut
£1.15 £0.96

  9 Handle Lever Set
Handle Lever Set
ALF016J13535 Out of stock
Handle Lever Set
£9.74 £8.12

  10 Sleeve
Sleeve
ALF016J13532 Out of stock
Sleeve
£8.71 £7.26

  11 E Ring
E Ring
ALF016J13533 Out of stock
E Ring
£0.80 £0.67

  12 Nut
Nut
ALF016J13531 Out of stock
Nut
£1.85 £1.54

  13 Pin
Pin
ALF016J13534 Out of stock
Pin
£0.80 £0.67

  14 Decorative Cover Assy
Decorative Cover Assy
ALF016J13510 Out of stock
Decorative Cover Assy
£26.48 £22.07

  15 Hexagon Socket Screw
Hexagon Socket Screw
ALF016J13511 Out of stock
Hexagon Socket Screw
£1.15 £0.96

  16 Compression Spring
Compression Spring
ALF016J13536 Out of stock
Compression Spring
£2.76 £2.30

  17 Switch Actuator
Switch Actuator
ALF016J13509 Out of stock
Switch Actuator
£4.56 £3.80

  18 Magnet Ring
Magnet Ring
ALF016J13507 Out of stock
Magnet Ring
£6.12 £5.10

  19 Switch Box Assy
Switch Box Assy
ALF016J13505 Out of stock
Switch Box Assy
£53.42 £44.52

  20 4909.1 Switch Electric Assembly
4909.1 Switch Electric Assembly
ALF016J13515 Out of stock
4909.1 Switch Electric Assembly
£50.62 £42.18

  21 Internal Wire Assy
Internal Wire Assy
ALF016J13514 Out of stock
Internal Wire Assy
£60.95 £50.79

  22 Clamp
Clamp
ALF016J13517 Out of stock
Clamp
£2.29 £1.91

  23 Spring
Spring
ALF016J13502 Out of stock
Spring
£1.68 £1.40

  24 Button
Button
ALF016J13503 Out of stock
Button
£3.13 £2.61

  26 Compression Spring
Compression Spring
ALF016J13518 Out of stock
Compression Spring
£2.54 £2.12

  27 Handle Set
Handle Set
ALF016J13522 Out of stock
Handle Set
£106.57 £88.81

  28 Switch Actuator
Switch Actuator
ALF016J13520 Out of stock
Switch Actuator
£3.43 £2.86

  29 Torsion Spring
Torsion Spring
ALF016J13525 Out of stock
Torsion Spring
£1.15 £0.96

  30 Hexagon Socket Screw
Hexagon Socket Screw
ALF016J13504 Out of stock
Hexagon Socket Screw
£1.61 £1.34

  31 Switch Lever
Switch Lever
ALF016J13521 Out of stock
Switch Lever
£9.67 £8.06

  32 Control Handle
Control Handle
ALF016J13523 Out of stock
Control Handle
£46.70 £38.92

  33 Prevailing Torque Hexagon Nut
Prevailing Torque Hexagon Nut
ALF016J13506 Out of stock
Prevailing Torque Hexagon Nut
£0.80 £0.67

  34 Switch Actuator
Switch Actuator
ALF016J13524 Out of stock
Switch Actuator
£3.59 £2.99


Description

Allett Stirling 51 Cordless Cylinder Mower - Handle Assembly Parts Diagram

Model: STIR51

Motor: 56 Volt Lithium-Ion Battery

Serial Number: 1-21-0001 onward
