Allett Buckingham 20H Drive Assembly

Name: Allett Buckingham 20H Drive Assembly
SKU: Buckingham 20H F0163104428-group
Price: 0.92 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

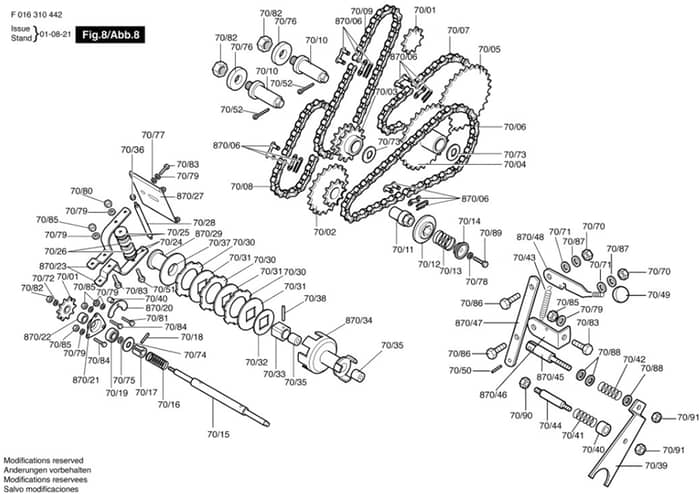

Allett Buckingham 20H Drive Assembly Parts Diagram - F0163104428 - Applicability: 00010101 > 99991231

Be the first to review this product

0 product questions

	Part No.	Details
7001	ALF016L12433 Out of stock	Sprocket Wheel (12T)	£29.64 £24.70
7002	ALF016L20312 Out of stock	Sprocket Wheel (20T)	£337.62 £281.35
7003	ALF016L20320 Out of stock	Sprocket & Bush	£179.00 £149.17
7004	ALF016L20321 Out of stock	Sprocket Wheel	£209.32 £174.43
7005	ALF016L20327 Out of stock	Sprocket	£110.84 £92.37
7006	ALF016L66785 Out of stock	Chain 1/2" x 38	£85.93 £71.61
7007	ALF016L66786 Out of stock	Chain 1/2" x 34	£61.84 £51.53
7008	ALF016L66787 In stock	Chain 1/2" x 28	£83.26 £69.38
7009	ALF016L66788 In stock	Chain 1/2" x 43	£86.66 £72.22
7010	ALL20333 Out of stock	Pin Shaft	£90.20 £75.17
7011	ALL20315 In stock	Sleeve	£64.98 £54.15
7012	ALL20314 In stock	Carrier	£93.48 £77.90
7013	ALF016L12757 In stock	Compression Spring	£12.91 £10.76
7014	ALL20316 In stock	Washer	£2.89 £2.41
7015	ALL20297 Out of stock	Clutch Shaft	£110.84 £92.37
7016	ALL35789 Out of stock	Compression Spring	£12.62 £10.52
7017	ALL09422 Out of stock	Adjusting Sleeve	£10.06 £8.38
7018	ALF016L09498 Out of stock	Taper Pin	£5.94 £4.95
7019	ALF016L03729 Out of stock	Ball Bearing	£65.44 £54.53
7024	ALF016L10198 Out of stock	Clutch Shim	£2.60 £2.17
7025	ALF016L13296 Out of stock	Plain Washer	£2.46 £2.05
7026	ALF016L10233 In stock	Bearing	£27.08 £22.57
7028	ALL21862 Out of stock	Fulcrum Pin	£12.40 £10.33
7030	ALL12661 In stock	Clutch Plate	£31.66 £26.38
7031	ALL12579 In stock	Driving Disc	£13.36 £11.13
7032	ALL12662 Out of stock	Spacing Disc	£4.84 £4.03
7033	ALL21176 Out of stock	Driving Square	£24.86 £20.72
7035	ALF016L13440 Out of stock	Bushing	£7.94 £6.62
7036	ALF016T49100 In stock	Set Ring 12mm	£2.58 £2.15
7037	ALF016L03958 Out of stock	Bushing	£8.02 £6.68
7038	ALF016L16272 Out of stock	Spirol Pin	£3.32 £2.77
7039	ALL12755 Out of stock	Clutch Fork	£31.06 £25.88
7040	ALL13695 Out of stock	Collar	£10.08 £8.40
7041	ALF016L12380 Out of stock	Clutch Fork Spring	£12.70 £10.58
7042	ALF016L12656 Out of stock	Pull Rod Spring	£13.00 £10.83
7043	ALF016L12774 Out of stock	Spring Lever	£12.90 £10.75
7044	ALL21507 Out of stock	Journal	£19.82 £16.52
7049	ALF016L20418 Out of stock	Knob	£10.40 £8.67
7050	ALF016L12750 Out of stock	Pivot Pin	£1.40 £1.17
7051	ALL20305 Out of stock	Bearing Pin	£17.56 £14.63
7052	ALF016L13230 Out of stock	Split Pin	£2.46 £2.05
7070	ALF016L06955 Out of stock	Self-Locking Nut	£1.72 £1.43
7071	ALF016L10273 Out of stock	Spring Washer 5/16"	£1.10 £0.92
7072	ALF016L12381 Out of stock	Spring Washer	£1.40 £1.17
7073	ALL13233 Out of stock	Plain Washer	£2.60 £2.17
7074	ALF016L13235 Out of stock	Plain Washer	£1.32 £1.10
7075	ALF016L13236 Out of stock	Washer	£3.02 £2.52
7076	ALF016L13237 Out of stock	Washer	£2.58 £2.15
7078	ALF016L18174 Out of stock	Locking Washer	£2.46 £2.05
7079	ALF016L18181 Out of stock	Spring Washer 5/16"	£1.80 £1.50
7080	ALF016L18609 Out of stock	Nut 5/16" UNF	£2.58 £2.15
7081	ALF016L18730 Out of stock	Screw 5/16" UNF	£1.72 £1.43
7082	ALF016L20239 Out of stock	Nut 1/2" UNF	£2.46 £2.05
7083	ALF016L20252 Out of stock	Screw	£2.46 £2.05
7084	ALF016L20253 Out of stock	Screw 5/16" UNF	£1.10 £0.92
7085	ALF016L20303 Out of stock	Nut 5/16" UNF	£2.46 £2.05
7087	ALF016T40590 Out of stock	Plain Washer	£1.10 £0.92
7088	ALF016L18129 Out of stock	Plain Washer 12.1x6.4x1.5	£1.42 £1.18
7089	ALF016L18167 Out of stock	Screw 1/4" UNF	£2.46 £2.05
7090	ALF016L18723 Out of stock	Lock Nut 1/4"	£1.10 £0.92
7091	ALF016L20338 Out of stock	Lock Nut 1/4" UNF	£1.42 £1.18
87006	ALF016L21249 In stock	Connecting Link	£10.30 £8.58
87020	ALF016100712 Out of stock	Location Piece	£6.84 £5.70
87021	ALF016L65640 Out of stock	Bearing Holder	£16.14 £13.45
87022	ALL12434 Out of stock	Collar	£9.58 £7.98
87023	ALF016L65618 Out of stock	Bracket	£26.00 £21.67
87027	ALL12798 Out of stock	Mounting Bracket	£8.96 £7.47
87029	ALF016L20300 Out of stock	Clutch Sleeve	£119.42 £99.52
87034	ALF016L12964 Out of stock	Drive Assy	£163.90 £136.58
87045	ALL20414 Out of stock	Pull Rod	£21.30 £17.75
87046	ALL12749 Out of stock	Pivot Bracket	£6.86 £5.72
87048	ALF016J10129 Out of stock	Lever	£19.78 £16.48
