AL-KO T18-110.6 HDS - 127324 - Battery - Fuel Tank: 12.2015 - 9.2016

Name: AL-KO T18-110.6 HDS - 127324 - Battery - Fuel Tank: 12.2015 - 9.2016
SKU: AK127324_8_12_2015_9_2016-group
Price: 0.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T18-110.6 HDS - 127324 - Battery - Fuel Tank: 12.2015 - 9.2016

Description

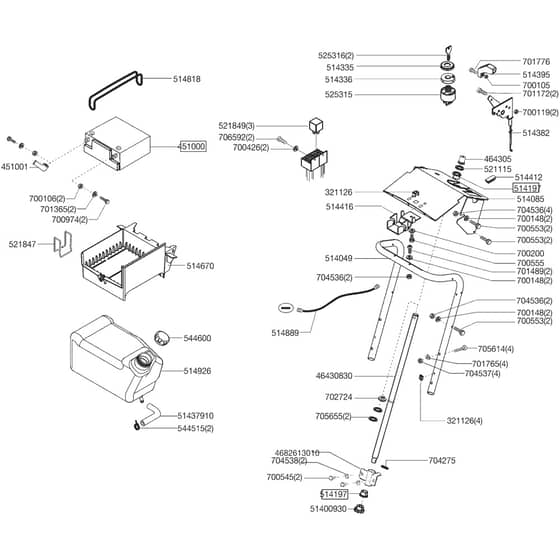

AL-KO T18-110.6 HDS - 127324 - Battery - Fuel Tank - Parts Diagram

12.2015 - 9.2016

Be the first to review this product

0 product questions

	Part No.	Details
451000	AK493414 Out of stock	Battery - 12V/17Ah	£90.74 £75.62
451001	AK451001 Out of stock	Terminal Cover	£3.68 £3.07
464305	AK464305 Out of stock	Spacer	£7.02 £5.85
514049	AK514049 Out of stock	Support Rod	£34.57 £28.81
514197	AK514197 Out of stock	Bushing	£4.22 £3.52
514335	AK514335 Out of stock	Ignition Lock Nut	£2.94 £2.45
514336	AK514336 Out of stock	Spacer	£5.24 £4.37
514382	AK514382 Out of stock	Cable - Single Cylinder	£21.08 £17.57
514395	AK473491 Out of stock	Use Ak473491	£5.60 £4.67
514412	AK514412 Out of stock	Plug	£1.76 £1.47
514416	AK514416 Out of stock	Plate	£6.32 £5.27
514670	AK514670 Out of stock	Battery Box	£16.70 £13.92
514818	AK514818 Out of stock	Rubber Strap F. Battery	£5.09 £4.24
514889	AK514889 Out of stock	Earth Cable	£9.66 £8.05
514926	AK457706 Out of stock	Use Ak521794	£55.67 £46.39
521115	AK521115 Out of stock	Quick Fastening 20mm	£2.30 £1.92
521847	AK521847 Out of stock	Retainer	£13.67 £11.39
521849	AK521849 Out of stock	Relay	£33.86 £28.22
525315	AK525315 In stock	Ignition Switch	£30.77 £25.64
525316	AK525316 Out of stock	Ignition Key - Delta Type	£4.91 £4.09
544515	AK544515 Out of stock	Clip	£0.73 £0.61
544600	AK544600 Out of stock	Tank Cap	£9.53 £7.94
700105	AK700105 Out of stock	Nut	£0.88 £0.73
700106	AK700106 Out of stock	Nut	£0.88 £0.73
700119	AK700119 Out of stock	Nut M5	£1.76 £1.47
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700426	AK700426 Out of stock	Washer M4	£0.88 £0.73
700545	AK700545 Out of stock	Bolt M8x16	£0.71 £0.59
700553	AK700553 Out of stock	Screw M6x40	£0.71 £0.59
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700974	AK700974 Out of stock	Screw	£0.71 £0.59
701172	AK701172 Out of stock	Screw	£0.49 £0.41
701365	AK701365 Out of stock	Washer	£0.29 £0.24
701489	AK703363 Out of stock	Use Ak703363	£0.71 £0.59
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
701776	AK701776 Out of stock	Screw	£0.73 £0.61
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
704275	AK704275 Out of stock	Roll Pin	£0.88 £0.73
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
705614	AK705614 Out of stock	Bolt	£0.88 £0.73
706592	AK706592 Out of stock	Screw	£0.71 £0.59
46430830	AK46430830 Out of stock	Steering Column	£52.46 £43.72
51437910	AK51437910 Out of stock	Fuel Line	£9.66 £8.05
2147483647	AK4682613010 Out of stock	Steering Set	£22.46 £18.72
