AL-KO T16-102 HD Edition - 119726 - Engine & Engine Mount

Name: AL-KO T16-102 HD Edition - 119726 - Engine & Engine Mount
SKU: AK119726_4-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T16-102 HD Edition - 119726 - Engine & Engine Mount

Description

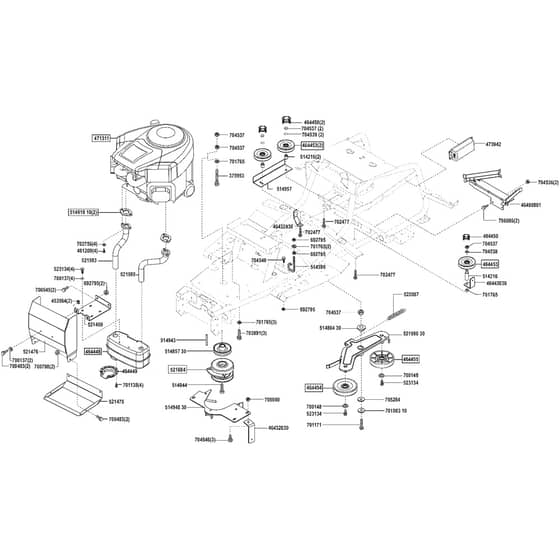

AL-KO T16-102 HD Edition - 119726 - Engine & Engine Mount - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details

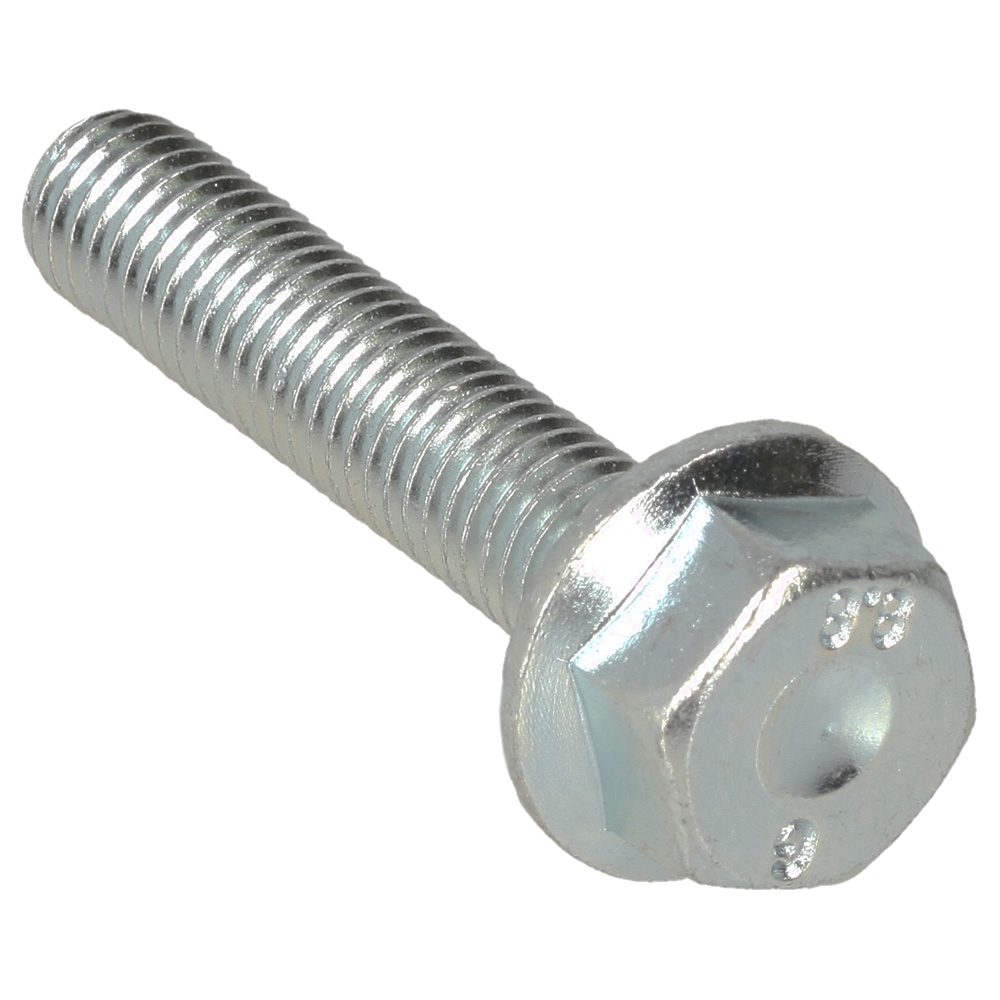

375953	AK375953 Out of stock	Screw M8x40	£2.11 £1.76
453564	AK453564 Out of stock	Caged Nut	£2.21 £1.84
461209	AK461209 Out of stock	Screw	£1.50 £1.25
464448	AK46444810 Out of stock	Use Ak46444810	£49.69 £41.41
464449	AK464449 Out of stock	Deflector	£3.24 £2.70
464450	AK464450 Out of stock	Cover	£1.73 £1.44
464453	AK464453 Out of stock	V-Pulley Small	£19.16 £15.97
464454	AK464454 Out of stock	V-Pulley Large	£27.22 £22.68
464455	AK464455 Out of stock	Flat Pulley	£56.76 £47.30

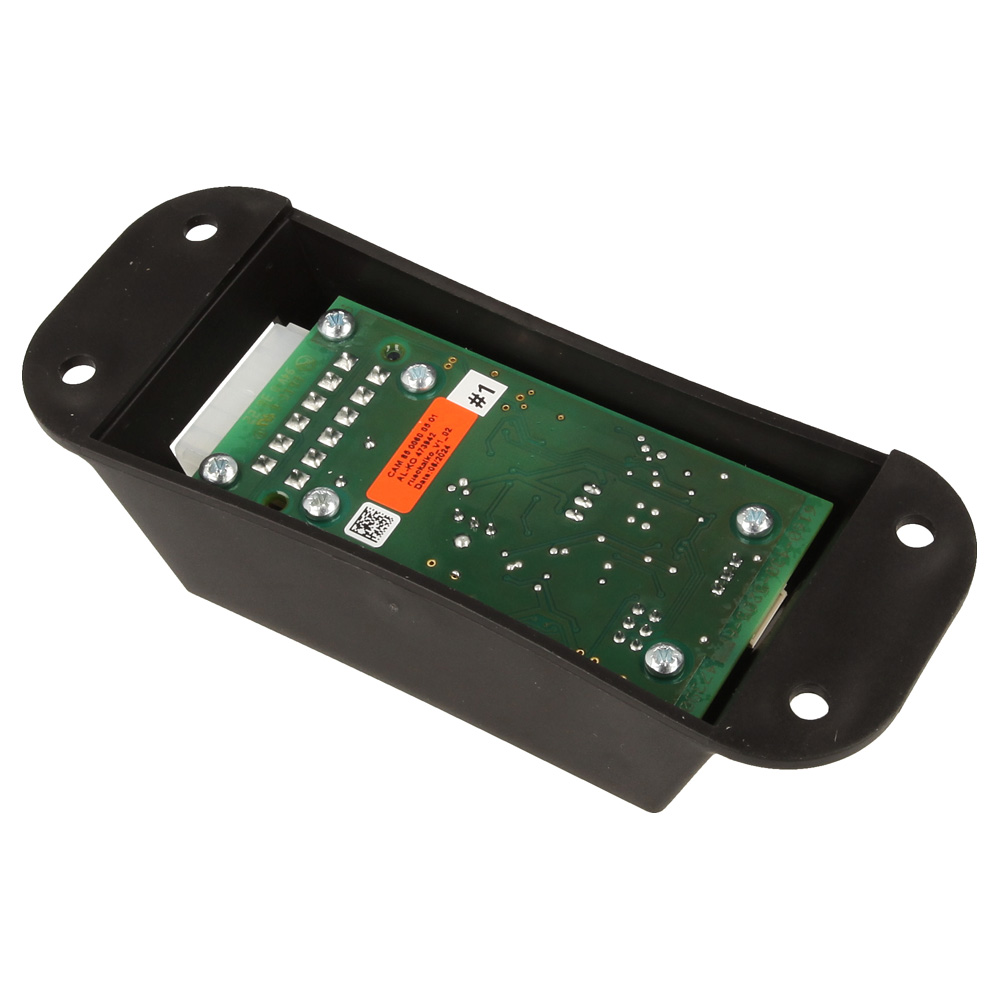

473942	AK473942 Out of stock	Pcb	£74.83 £62.36
514216	AK514216 Out of stock	Case	£2.68 £2.23
514398	AK514398 Out of stock	Guide	£3.68 £3.07
514943	AK514943 Out of stock	Key	£1.16 £0.97
514944	AK514944 Out of stock	Bolt 75mm	£9.16 £7.63
521469	AK521469 Out of stock	Plate	£8.95 £7.46
521475	AK521475 Out of stock	Plate	£12.08 £10.07
521476	AK521476 Out of stock	Plate	£65.10 £54.25
521583	AK521583 Out of stock	Exhaust Elbow	£29.57 £24.64
521585	AK521585 Out of stock	Exhaust Elbow	£29.56 £24.63
521684	AK521684 Out of stock	Clutch	£280.60 £233.83
522087	AK522087 Out of stock	Spring	£7.79 £6.49
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
692795	AK692795 Out of stock	Nut	£1.24 £1.03
700137	AK700137 Out of stock	Washer M6	£0.88 £0.73
700483	AK700483 Out of stock	Screw M6x12 Din933	£0.71 £0.59
700545	AK700545 Out of stock	Bolt M8x16	£0.71 £0.59
700798	AK700798 Out of stock	Nut	£0.73 £0.61
701138	AK706592 Out of stock	Use Ak706592	£13.22 £11.02
701171	AK701171 Out of stock	Screw M8x30	£0.88 £0.73
701765	AK700201 Out of stock	Ak701765	£0.73 £0.61
702477	AK702477 Out of stock	Screw	£1.69 £1.41
702756	AK702756 Out of stock	Nla - Shb Sich Schnorr S 8 Mechanvz	£0.73 £0.61
703891	AK703891 Out of stock	Screw	£4.03 £3.36
704536	AK704536 In stock	Nut M6	Was £0.88 £0.73 Special Price £0.62 £0.52
704537	AK704537 Out of stock	Lock Nut M8	£0.94 £0.78
704538	AK704538 Out of stock	Washer M8	£0.88 £0.73
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
705284	AK705284 Out of stock	Spring Washer M10	£34.26 £28.55
705900	AK705900 Out of stock	Nut	£0.73 £0.61
706086	AK706086 Out of stock	Screw M6x20	£0.73 £0.61
46432830	AK46432830 Out of stock	Mount	£8.45 £7.04
46432930	AK46432930 Out of stock	Mount	£8.78 £7.32
46443030	AK46443030 Out of stock	Mount	£11.06 £9.22
51461810	AK51461810 Out of stock	Gasket	£2.45 £2.04
51480430	AK51480430 Out of stock	Spacer	£2.98 £2.48
51485730	AK51485730 Out of stock	Pulley	£56.17 £46.81
52109630	AK52109630 Out of stock	Pulley Arm	£51.24 £42.70
70108310	AK701083 Out of stock	Use Ak701083	£0.71 £0.59
