AL-KO T15-102 HD Powerline - 118866 - Transmission: 8.2006 - 8.2007

Name: AL-KO T15-102 HD Powerline - 118866 - Transmission: 8.2006 - 8.2007
SKU: AK118866_3_8_2006_8_2007-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T15-102 HD Powerline - 118866 - Transmission: 8.2006 - 8.2007

Description

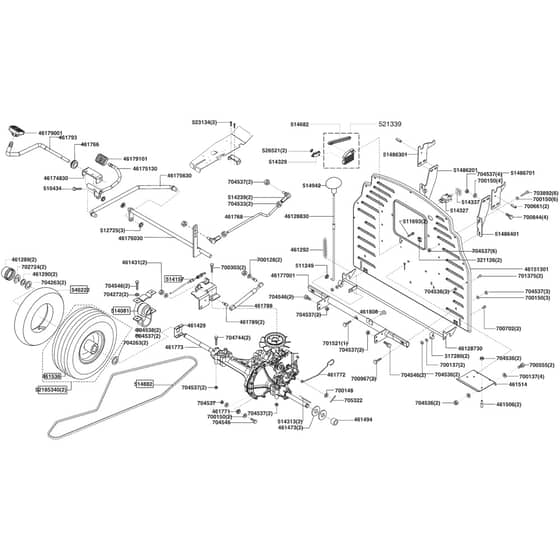

AL-KO T15-102 HD Powerline - 118866 - Transmission - Parts Diagram

8.2006 - 8.2007

Be the first to review this product

0 product questions

	Part No.	Details
317280	AK317280 Out of stock	Clip	£3.00 £2.50
461289	AK461289 Out of stock	Hub Cap	£4.48 £3.73
461290	AK461290 Out of stock	Washer	£2.10 £1.75
461292	AK461292 Out of stock	Spring	£4.39 £3.66
461429	AK461429 Out of stock	Plate	£6.16 £5.13
461431	AK461431 Out of stock	Nut	£0.73 £0.61
461473	AK461473 Out of stock	Disc	£10.16 £8.47
461494	AK46149430 Out of stock	Use Ak46149430	£5.09 £4.24
461506	AK461506 Out of stock	Bolt	£1.92 £1.60
461536	AK471020 Out of stock	Use Ak471020	£91.64 £76.37
461772	AK461772 Out of stock	Rod	£6.67 £5.56
461788	AK461788 Out of stock	Damper	£52.22 £43.52
461789	AK461789 Out of stock	Joint	£4.74 £3.95
461793	AK46174430 Out of stock	Pedal Arm	£28.45 £23.71
461808	AK461808 Out of stock	Screw	£4.75 £3.96
510434	AK525779 Out of stock	Use Ak525779	£1.22 £1.02
511249	AK511249 Out of stock	Grip Fix Washer - 7mm	£1.25 £1.04
511693	AK468878 Out of stock	Use Ak468878	£0.71 £0.59
512725	AK512725 Out of stock	Push Nut 12mm	£1.50 £1.25
514081	AK514081 Out of stock	Bearing Assembly	£32.99 £27.49
514157	AK514157 Out of stock	Trans Brake Cable	£33.40 £27.83
514239	AK514239 In stock	Ball Joint	£8.45 £7.04
514313	AK514313 Out of stock	Key	£1.22 £1.02
514327	AK514327 Out of stock	Pressure Switch - (Grey Type)	£21.82 £18.18
514329	AK514329 Out of stock	Switch	£15.67 £13.06
514337	AK514337 Out of stock	Cap	£4.76 £3.97
514682	AK493511 Out of stock	Use Ak493511	£4.03 £3.36
514882	AK514882 Out of stock	Transmission Drive Belt	£54.94 £45.78
514942	AK514942 Out of stock	Button	£1.92 £1.60
521339	AK521339 Out of stock	Arm And Case Assy	£15.23 £12.69
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
526521	AK526521 Out of stock	Push Fix 2.5mm	£0.73 £0.61
546222	AK468870 Out of stock	Use Ak468870	£47.60 £39.67
700128	AK700128 Out of stock	Washer	£0.88 £0.73
700137	AK700137 Out of stock	Washer M6	£0.88 £0.73
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700303	AK703926 Out of stock	Ak700303	£1.69 £1.41
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700661	AK700661 Out of stock	Sleeve	£0.71 £0.59
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
700844	AK704128 Out of stock	Use Ak704128	£0.71 £0.59
700967	AK700967 Out of stock	Screw	£1.24 £1.03
701375	AK701375 Out of stock	Screw	£0.73 £0.61
701521	AK701521 Out of stock	Screw M8x40	£1.24 £1.03
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
703892	AK703892 Out of stock	Screw	£0.73 £0.61
704263	AK705617 Out of stock	Use Ak705617	£0.88 £0.73
704272	AK704272 Out of stock	Washer 8mm	£0.73 £0.61
704533	AK704533 Out of stock	Nut - M8 Nyloc	£0.71 £0.59
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
704545	AK704545 Out of stock	Screw M8x25	£0.71 £0.59
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
704744	AK704744 Out of stock	Screw	£1.40 £1.17
705322	AK705322 Out of stock	Cotter Pin	£0.71 £0.59
46128730	AK46128730 Out of stock	Alko Rear Box Latch	£20.94 £17.45
46128830	AK46128830 Out of stock	Lever	£14.92 £12.43
46151301	AK46151301 Out of stock	Back Plate	£65.83 £54.86
46174830	AK46174830 Out of stock	Mount	£8.04 £6.70
46175130	AK46175130 Out of stock	Pedal Arm	£42.62 £35.52
46175630	AK46175630 Out of stock	Connecting Rod	£31.94 £26.62
46177001	AK46431701 Out of stock	Use Ak46431701	£52.31 £43.59
46179001	AK46179001 Out of stock	Foot Pad	£5.09 £4.24
46179101	AK46179101 Out of stock	Foot Pad	£12.56 £10.47
51486201	AK51486201 Out of stock	Bearing Bracket Rh	£15.10 £12.58
51486301	AK51486301 Out of stock	Bearing Bracket Rh	£13.30 £11.08
51486401	AK51486401 Out of stock	Nla - Bearing Arm Left Bottom R9005	£14.92 £12.43
51486701	AK51486701 Out of stock	Bearing Bracket Lh	£11.77 £9.81
52185340	AK457684 Out of stock	Use Ak47101840	£169.70 £141.42
