AL-KO T13-85 LUX HVC - 118217 - Chassis

Name: AL-KO T13-85 LUX HVC - 118217 - Chassis
SKU: AK118217_2-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

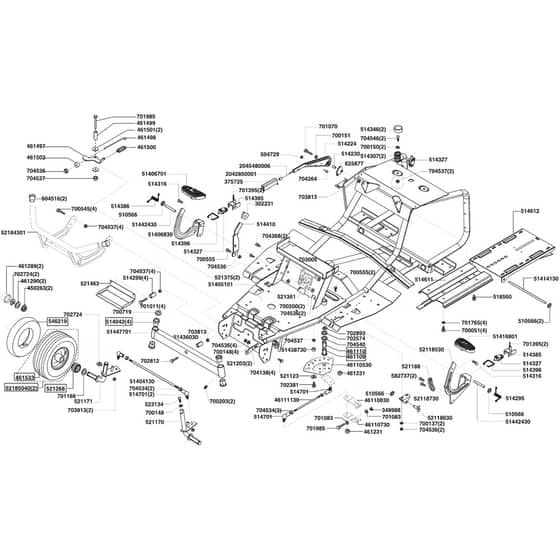

AL-KO T13-85 LUX HVC - 118217 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
302231	AK302231 Out of stock	Grip	£6.48 £5.40
348988	AK692795 Out of stock	Nut	£1.24 £1.03
375725	AK375725 Out of stock	Handle	£9.83 £8.19
450263	AK450263 Out of stock	Ak450263	£2.51 £2.09
461109	AK461109 Out of stock	Bush	£9.00 £7.50
461110	AK461110 Out of stock	Bush	£3.53 £2.94
461231	AK461231 Out of stock	Nut	£0.71 £0.59
461289	AK461289 Out of stock	Ak461289	£4.48 £3.73
461290	AK461290 Out of stock	Ak461290	£2.10 £1.75
461497	AK461497 Out of stock	Arm	£10.92 £9.10
461498	AK46149830 Out of stock	Use Ak46149830	£5.81 £4.84
461499	AK46149930 Out of stock	Use Ak46149930	£3.32 £2.77
461500	AK461500 Out of stock	Ak461500	£4.16 £3.47
461501	AK468023 Out of stock	Use Ak46802330	£3.34 £2.78
461502	AK46150230 Out of stock	Use Ak46150230	£3.53 £2.94
461533	AK461533 Out of stock	Tyre 13x5.00-6	£46.45 £38.71
504516	AK519076 Out of stock	Plug - 2.5cm	£1.13 £0.94
504729	AK504729 Out of stock	Locking Washer	£0.73 £0.61
510566	AK510566 Out of stock	Fastener 8mm	£1.24 £1.03
514042	AK514042 Out of stock	Bush	£11.06 £9.22
514224	AK514224 Out of stock	Lever	£72.40 £60.33
514230	AK514230 Out of stock	Sleeve	£3.47 £2.89
514299	AK514299 Out of stock	Spacer	£3.17 £2.64
514307	AK514307 Out of stock	Seat Spring	£4.60 £3.83
514316	AK514316 Out of stock	Screw	£1.24 £1.03
514327	AK514327 Out of stock	Pressure Switch - (Grey Type)	£21.82 £18.18
514346	AK514346 Out of stock	Ak514346	£1.43 £1.19
514385	AK514385 Out of stock	Holder	£2.30 £1.92
514386	AK514386 Out of stock	Spring Rh	£4.04 £3.37
514396	AK51439630 Out of stock	Use Ak51439630	£2.11 £1.76
514410	AK514410 Out of stock	Arm Rh	£13.00 £10.83
514611	AK514611 Out of stock	Centre Plate	£40.92 £34.10
514612	AK514612 Out of stock	Rear Plate	£48.56 £40.47
514701	AK514701 Out of stock	Ball Joint - Alt Nut Lower Migb/T6171 M10x1	£17.47 £14.56
518560	AK518560 Out of stock	Screw M4x16	£0.73 £0.61
521123	AK521123 Out of stock	Washer	£5.09 £4.24
521170	AK51403730 Out of stock	Use Ak51403730	£35.46 £29.55
521171	AK51403830 Out of stock	Use Ak51403830	£34.85 £29.04
521188	AK521188 Out of stock	Guide	£1.82 £1.52
521268	AK521268 Out of stock	Bearing - 20x30x55	£9.62 £8.02
521361	AK521361 Out of stock	Ak521361	£31.20 £26.00
521375	AK521375 Out of stock	Ak521375	£0.71 £0.59
523134	AK523134 Out of stock	Ak523134	£0.71 £0.59
546219	AK546219 Out of stock	Inner Tube 13x500x6	£29.08 £24.23
582737	AK606135 Out of stock	Use Ak606135	£0.71 £0.59
625877	AK625877 Out of stock	Gear Segment	£7.02 £5.85
700051	AK700051 Out of stock	Ak700051	£0.71 £0.59
700137	AK700137 Out of stock	Ak700137	£0.88 £0.73
700150	AK700150 Out of stock	Ak700150	£1.15 £0.96
700151	AK700151 Out of stock	Washer M10	£0.73 £0.61
700200	AK700200 Out of stock	Ak700200	£0.71 £0.59
700203	AK700203 Out of stock	Ak700203	£0.88 £0.73
700545	AK700545 Out of stock	Ak700545	£0.71 £0.59
700555	AK700555 Out of stock	Ak700555	£0.71 £0.59
700719	AK700719 Out of stock	Ak700719	£1.58 £1.32
701011	AK701011 Out of stock	Ak701011	£1.24 £1.03
701070	AK701070 Out of stock	Screw	£1.31 £1.09
701083	AK701083 Out of stock	Ak701083	£0.71 £0.59
701166	AK701166 Out of stock	Washer	£0.71 £0.59
701395	AK701395 Out of stock	Rivet	£0.74 £0.62
701765	AK700201 Out of stock	Ak701765	£0.73 £0.61
701985	AK703550 Out of stock	Ak701985	£23.34 £19.45
702381	AK702381 Out of stock	Screw	£0.90 £0.75
702574	AK702574 Out of stock	Washer	£1.68 £1.40
702724	AK702724 Out of stock	Ak702724	£0.88 £0.73
702812	AK705433 Out of stock	Use Ak705433	£1.92 £1.60
702893	AK702893 Out of stock	Clip	£0.73 £0.61
703813	AK703813 Out of stock	Ak703813	£0.71 £0.59
704138	AK705968 Out of stock	Use Ak705968	£0.71 £0.59
704264	AK704264 Out of stock	Bolt	£4.00 £3.33
704368	AK704368 Out of stock	Screw	£0.73 £0.61
704534	AK704534 Out of stock	Ak704534	£0.71 £0.59
704536	AK704536 In stock	Ak704536	£0.88 £0.73
704537	AK704537 Out of stock	Ak704537	£1.16 £0.97
704540	AK704540 Out of stock	Washer M12	£0.71 £0.59
704546	AK704546 Out of stock	Ak704546	£0.71 £0.59
46110530	AK46110530 Out of stock	Quadrant	£47.94 £39.95
46110730	AK46110730 Out of stock	Ak46110730	£7.57 £6.31
46110830	AK46110830 Out of stock	Ak46110830	£7.38 £6.15
46111130	AK46111130 Out of stock	Height Adj Bar	£6.50 £5.42
51405101	AK51405101 Out of stock	Frame	£551.34 £459.45
51406830	AK51406830 Out of stock	Throttle Arm	£21.07 £17.56
51416801	AK51416801 Out of stock	Pedal Lh	£9.49 £7.91
51436030	AK51436030 Out of stock	Bush	£4.56 £3.80
51438730	AK51438730 Out of stock	Spacer	£2.98 £2.48
51442430	AK51442430 Out of stock	Shaft	£5.81 £4.84
51447701	AK521078 Out of stock	Use Ak521078	£76.34 £63.62
52118530	AK52118530 Out of stock	Lever	£33.00 £27.50
52118630	AK521186 Out of stock	Use Ak521186	£5.18 £4.32
52118730	AK521187 Out of stock	Use Ak521187	£9.66 £8.05
52184301	AK52184501 Out of stock	Use Ak52184501	£70.19 £58.49
52185040	AK457697 Out of stock	Use Ak457697	£81.79 £68.16
2042850001	AK2042850001 Out of stock	Button	£4.48 £3.73
2045480006	AK2045480006 Out of stock	Spring	£11.59 £9.66
