AL-KO T13-85 HD LUX HVC - 118145 - Transmission: from 3.2006

Name: AL-KO T13-85 HD LUX HVC - 118145 - Transmission: from 3.2006
SKU: AK118145_3_from_3_2006-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-85 HD LUX HVC - 118145 - Transmission: from 3.2006

Description

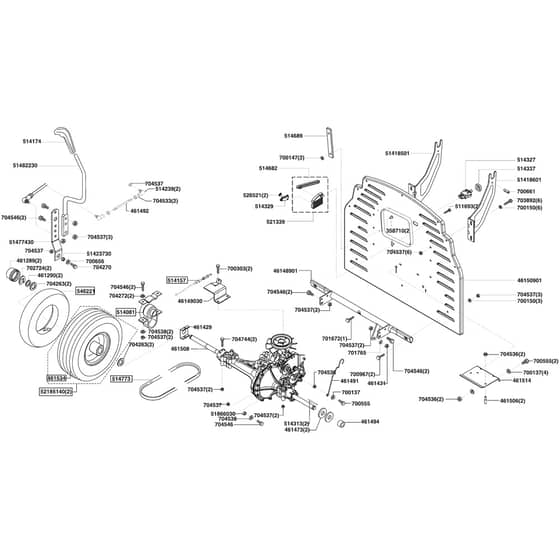

AL-KO T13-85 HD LUX HVC - 118145 - Transmission - Parts Diagram

from 3.2006

Be the first to review this product

0 product questions

	Part No.	Details
358710	AK358710 Out of stock	Rivet	£0.83 £0.69
461289	AK461289 Out of stock	Ak461289	£4.48 £3.73
461290	AK461290 Out of stock	Ak461290	£2.10 £1.75
461429	AK461429 Out of stock	Plate	£6.16 £5.13
461431	AK461431 Out of stock	Nut	£0.73 £0.61
461473	AK461473 Out of stock	Disc	£10.16 £8.47
461491	AK461491 Out of stock	Rod	£8.08 £6.73
461492	AK46149230 Out of stock	Use Ak46149230	£7.02 £5.85
461494	AK46149430 Out of stock	Use Ak46149430	£5.09 £4.24
461506	AK461506 Out of stock	Bolt	£1.92 £1.60
461534	AK461534 Out of stock	Tyre	£73.73 £61.44
511693	AK468878 Out of stock	Use Ak468878	£0.71 £0.59
514081	AK514081 Out of stock	Bearing Assembly	£32.99 £27.49
514157	AK514157 Out of stock	Trans Brake Cable	£33.40 £27.83
514174	AK514174 Out of stock	Ak514174	£9.14 £7.62
514239	AK514239 In stock	Ball Joint	£8.45 £7.04
514313	AK514313 Out of stock	Ak514313	£1.22 £1.02
514327	AK514327 Out of stock	Pressure Switch - (Grey Type)	£21.82 £18.18
514329	AK514329 Out of stock	Switch	£15.67 £13.06
514337	AK514337 Out of stock	Cap	£4.76 £3.97
514682	AK493511 Out of stock	Use Ak493511	£4.03 £3.36
514689	AK514689 Out of stock	Flap	£2.98 £2.48
514773	AK514773 Out of stock	Drive Belt (13 x 2830 Ld)	£49.25 £41.04
521339	AK521339 Out of stock	Arm And Case Assy	£15.23 £12.69
526521	AK526521 Out of stock	Ak526521	£0.73 £0.61
546221	AK468870 Out of stock	Use Ak546222	£47.60 £39.67
700137	AK700137 Out of stock	Ak700137	£0.88 £0.73
700147	AK703451 Out of stock	Ak700147	£0.64 £0.53
700150	AK700150 Out of stock	Ak700150	£1.15 £0.96
700303	AK703926 Out of stock	Ak700303	£1.69 £1.41
700555	AK700555 Out of stock	Ak700555	£0.71 £0.59
700656	AK705284 Out of stock	Use Ak705284	£3.53 £2.94
700661	AK700661 Out of stock	Sleeve	£0.71 £0.59
700967	AK700967 Out of stock	Screw	£1.24 £1.03
701672	AK701672 Out of stock	Screw M8x45	£1.49 £1.24
701765	AK700201 Out of stock	Ak701765	£0.73 £0.61
702724	AK702724 Out of stock	Ak702724	£0.88 £0.73
703892	AK703892 Out of stock	Screw	£0.73 £0.61
704263	AK705617 Out of stock	Use Ak705617	£0.88 £0.73
704270	AK704270 Out of stock	Screw M8x25	£0.88 £0.73
704272	AK704272 Out of stock	Washer 8mm	£0.73 £0.61
704533	AK704533 Out of stock	Ak704533	£0.71 £0.59
704536	AK704536 In stock	Ak704536	£0.88 £0.73
704537	AK704537 Out of stock	Ak704537	£1.16 £0.97
704538	AK704538 Out of stock	Ak704538	£0.86 £0.72
704546	AK704546 Out of stock	Ak704546	£0.71 £0.59
704744	AK704744 Out of stock	Screw	£1.40 £1.17
46148901	AK46431601 Out of stock	Use Ak46431601	£49.48 £41.23
46149030	AK461490 Out of stock	Use Ak461490	£8.63 £7.19
46150901	AK46150901 Out of stock	Flap	£65.83 £54.86
51418501	AK514185 Out of stock	Use Ak514185	£26.09 £21.74
51418601	AK514186 Out of stock	Use Ak514186	£26.09 £21.74
51423730	AK514237 Out of stock	Use Ak514237	£1.76 £1.47
51477430	AK51477430 Out of stock	Plate	£8.78 £7.32
51482230	AK51482230 Out of stock	Gear-Shift Lever	£202.76 £168.97
51866030	AK51866030 Out of stock	Sleeve	£1.40 £1.17
52185140	AK46483340 Out of stock	Use Ak46483340	£149.20 £124.33
