AL-KO T13-102 Lux HVC - 118347 - Fuel Tank And Battery: from 2.2006

Description

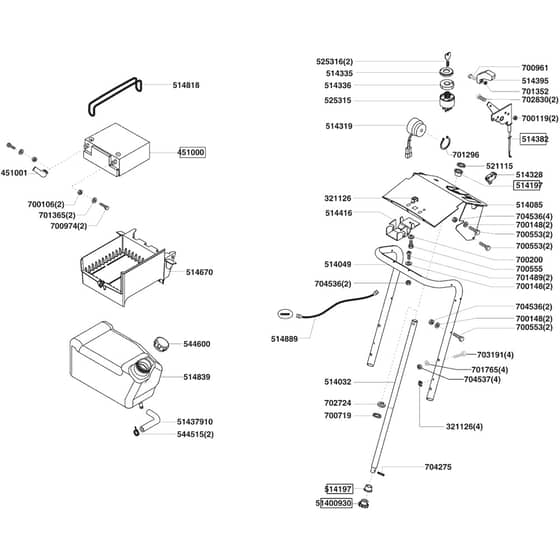

AL-KO T13-102 Lux HVC - 118347 - Fuel Tank And Battery - Parts Diagram

from 2.2006

Be the first to review this product

0 product questions

	Part No.	Details
451000	AK493414 Out of stock	Battery - 12V/17Ah	£124.16 £103.47
451001	AK451001 Out of stock	Terminal Cover	£3.68 £3.07
514032	AK51403230 Out of stock	Use Ak51403230	£33.34 £27.78
514049	AK514049 Out of stock	Support Rod	£34.57 £28.81
514197	AK514197 Out of stock	Bushing	£4.22 £3.52
514319	AK458562 Out of stock	Buzzer	£18.48 £15.40
514328	AK514328 Out of stock	Light Switch	£14.53 £12.11
514335	AK514335 Out of stock	Ignition Lock Nut	£2.94 £2.45
514336	AK514336 Out of stock	Spacer	£5.24 £4.37
514382	AK514382 Out of stock	Cable - Single Cylinder	£21.08 £17.57
514395	AK473491 Out of stock	Use Ak473491	£5.26 £4.38
514416	AK514416 Out of stock	Plate	£6.32 £5.27
514670	AK514670 Out of stock	Battery Box	£16.70 £13.92
514818	AK514818 Out of stock	Rubber Strap F. Battery	£4.86 £4.05
514839	AK457706 Out of stock	Use Ak521794	£66.66 £55.55
514889	AK514889 Out of stock	Earth Cable	£9.66 £8.05
521115	AK521115 Out of stock	Quick Fastening 20mm	£2.23 £1.86
525315	AK525315 In stock	Ignition Switch	£30.77 £25.64
525316	AK525316 Out of stock	Ignition Key - Delta Type	£4.91 £4.09
544515	AK544515 Out of stock	Clip	£0.73 £0.61
544600	AK544600 Out of stock	Tank Cap	£9.53 £7.94
700106	AK700106 Out of stock	Nut	£0.88 £0.73
700119	AK700119 Out of stock	Nut M5	£1.76 £1.47
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700553	AK700553 Out of stock	Screw M6x40	£0.71 £0.59
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700719	AK700719 Out of stock	Washer 22mm	£1.58 £1.32
700961	AK700961 Out of stock	Screw	£0.73 £0.61
700974	AK700974 Out of stock	Screw	£0.71 £0.59
701296	AK701296 Out of stock	Circlip	£0.88 £0.73
701352	AK701352 Out of stock	Nut	£0.88 £0.73
701365	AK701365 Out of stock	Washer	£0.29 £0.24
701489	AK703363 Out of stock	Use Ak703363	£0.71 £0.59
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
702830	AK702830 Out of stock	Screws	£0.73 £0.61
703191	AK705614 Out of stock	Use Ak705614	£0.88 £0.73
704275	AK704275 Out of stock	Roll Pin	£0.88 £0.73
704536	AK704536 In stock	Nut M6	Was £0.88 £0.73 Special Price £0.62 £0.52
704537	AK704537 Out of stock	Lock Nut M8	£0.94 £0.78
51437910	AK51437910 Out of stock	Fuel Line	£9.66 £8.05
