AL-KO T13-102 Lux HVC - 118347 - Fuel Tank And Battery: 9.2002 - 4.2004

Name: AL-KO T13-102 Lux HVC - 118347 - Fuel Tank And Battery: 9.2002 - 4.2004
SKU: AK118347_6_9_2002_4_2004-group
Price: 0.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO T13-102 Lux HVC - 118347 - Fuel Tank And Battery: 9.2002 - 4.2004

Description

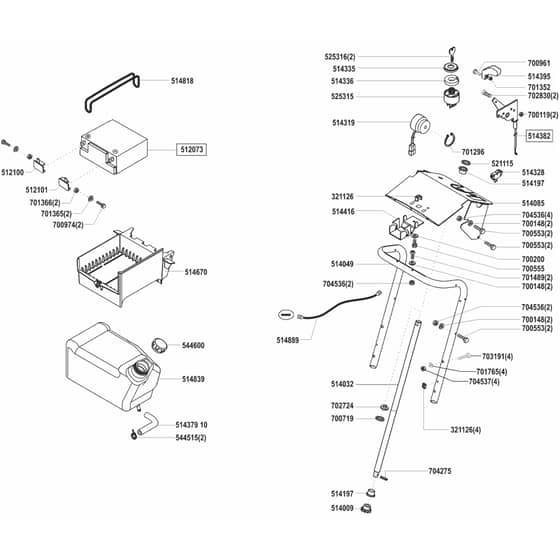

AL-KO T13-102 Lux HVC - 118347 - Fuel Tank And Battery - Parts Diagram

9.2002 - 4.2004

Be the first to review this product

0 product questions

	Part No.	Details
512073	AK493414 Out of stock	Use Ak451000	£90.74 £75.62
512100	AK512100 Out of stock	Clip	£4.40 £3.67
514032	AK51403230 Out of stock	Use Ak51403230	£33.34 £27.78
514049	AK514049 Out of stock	Support Rod	£34.57 £28.81
514197	AK514197 Out of stock	Bushing	£4.22 £3.52
514319	AK458562 Out of stock	Buzzer	£18.95 £15.79
514328	AK514328 Out of stock	Light Switch	£14.53 £12.11
514335	AK514335 Out of stock	Ignition Lock Nut	£2.94 £2.45
514336	AK514336 Out of stock	Spacer	£5.24 £4.37
514382	AK514382 Out of stock	Cable - Single Cylinder	£21.08 £17.57
514395	AK473491 Out of stock	Use Ak473491	£5.60 £4.67
514416	AK514416 Out of stock	Plate	£6.32 £5.27
514670	AK514670 Out of stock	Battery Box	£16.70 £13.92
514818	AK514818 Out of stock	Rubber Strap F. Battery	£5.09 £4.24
514839	AK457706 Out of stock	Use Ak521794	£55.67 £46.39
514889	AK514889 Out of stock	Earth Cable	£9.66 £8.05
521115	AK521115 Out of stock	Quick Fastening 20mm	£2.30 £1.92
525315	AK525315 In stock	Ignition Switch	£30.77 £25.64
525316	AK525316 Out of stock	Ignition Key - Delta Type	£4.91 £4.09
544515	AK544515 Out of stock	Clip	£0.73 £0.61
544600	AK544600 Out of stock	Tank Cap	£9.53 £7.94
700119	AK700119 Out of stock	Nut M5	£1.76 £1.47
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700553	AK700553 Out of stock	Screw M6x40	£0.71 £0.59
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700719	AK700719 Out of stock	Washer 22mm	£1.58 £1.32
700961	AK700961 Out of stock	Screw	£0.73 £0.61
700974	AK700974 Out of stock	Screw	£0.71 £0.59
701296	AK701296 Out of stock	Circlip	£0.88 £0.73
701352	AK701352 Out of stock	Nut	£0.88 £0.73
701365	AK701365 Out of stock	Washer	£0.29 £0.24
701489	AK703363 Out of stock	Use Ak703363	£0.71 £0.59
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
702830	AK702830 Out of stock	Screws	£0.73 £0.61
703191	AK705614 Out of stock	Use Ak705614	£0.88 £0.73
704275	AK704275 Out of stock	Roll Pin	£0.88 £0.73
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
51437910	AK51437910 Out of stock	Fuel Line	£9.66 £8.05
