AL-KO Solo Premium T18-105.4 HD V2 - 127707 - Chassis

Name: AL-KO Solo Premium T18-105.4 HD V2 - 127707 - Chassis
SKU: AK127707_2-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Solo Premium T18-105.4 HD V2 - 127707 - Chassis

Description

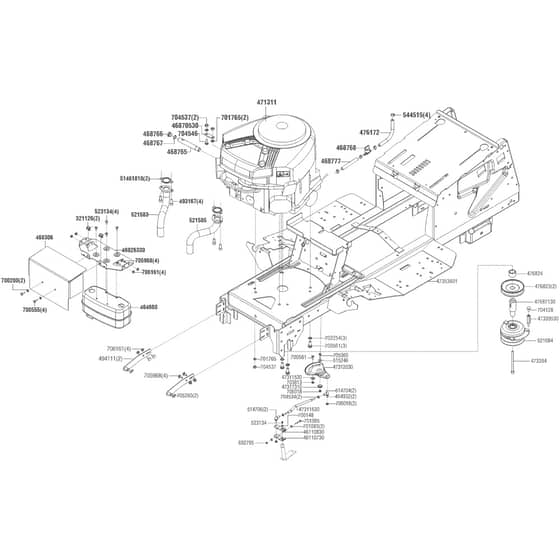

AL-KO Solo Premium T18-105.4 HD V2 - 127707 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
464660	AK46444810 Out of stock	Use Ak46444810	£49.69 £41.41

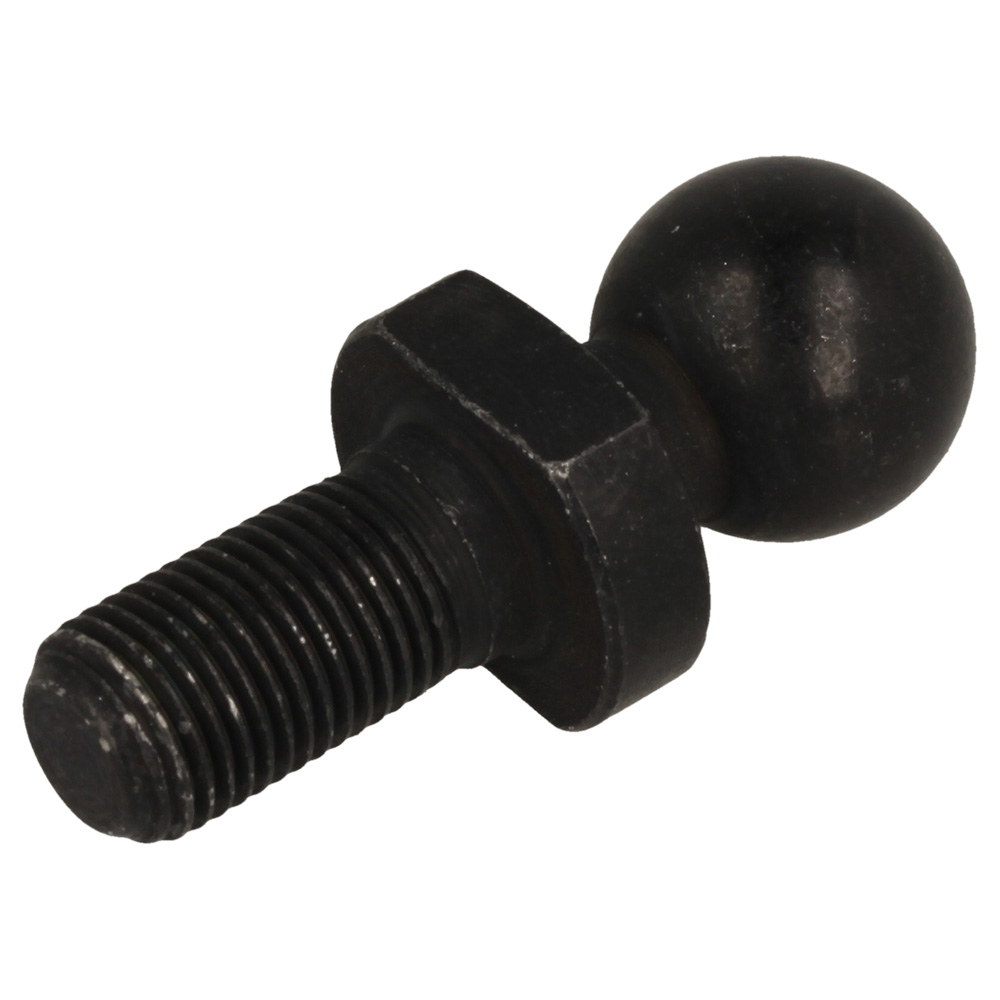

464932	AK464932 Out of stock	Ball Joint	£7.92 £6.60
468306	AK468306 Out of stock	Plate	£13.90 £11.58
468765	AK46876530 Out of stock	6170-021-8200-A Oil Drain Screw B&S	£17.04 £14.20
468766	AK468766 Out of stock	Oil Pipe Bung	£4.24 £3.53
468767	AK468767 Out of stock	Seal	£0.71 £0.59
468768	AK468768 Out of stock	Fuel Tap	£10.88 £9.07
468777	AK468777 Out of stock	Fuel Hose Tank	£2.98 £2.48

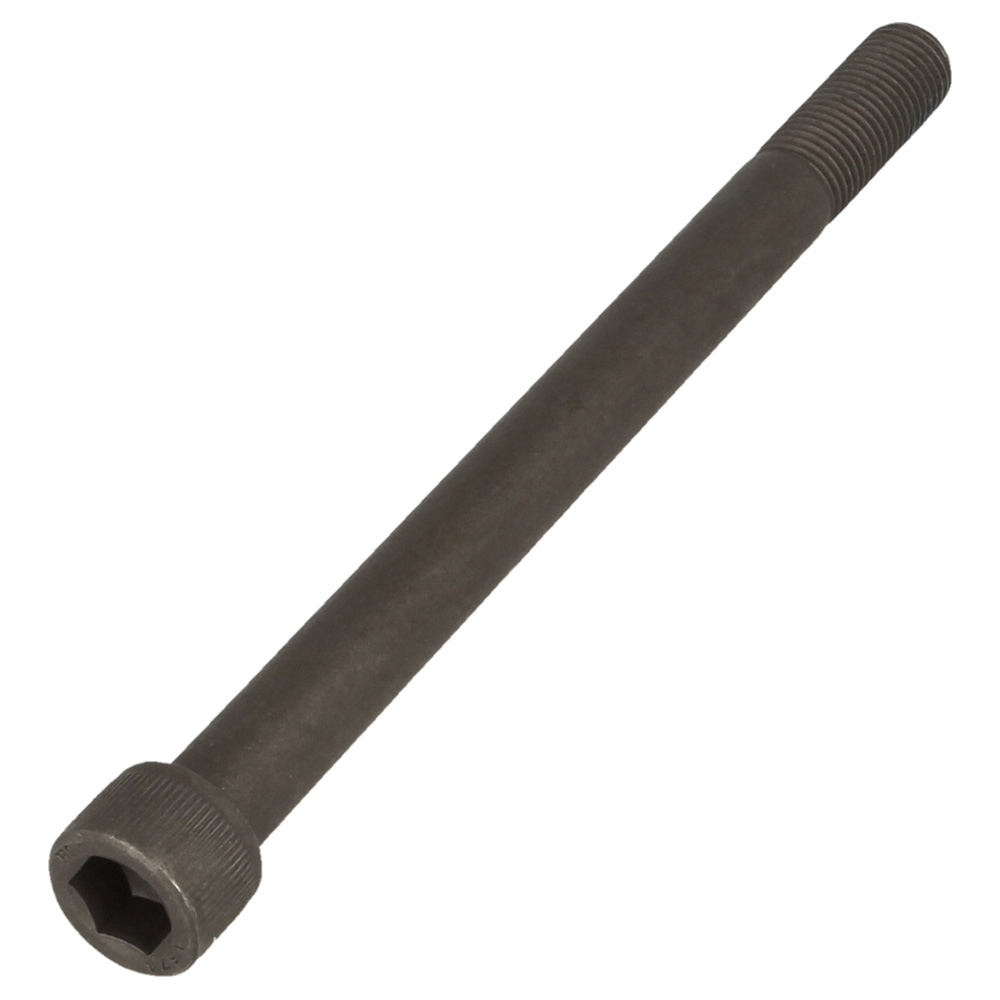

473394	AK473394 Out of stock	Screw	£7.92 £6.60
476172	AK476172 Out of stock	Pipe	£4.40 £3.67
476823	AK476823 Out of stock	Pulley	£5.70 £4.75
476824	AK47682430 Out of stock	6170-708-2000-A Motor Shaft Thrust	£13.30 £11.08
493167	AK493167 Out of stock	Screw	£39.31 £32.76
514704	AK514704 Out of stock	Spring	£0.71 £0.59
514706	AK514706 Out of stock	Ball Joint	£9.14 £7.62
515246	AK51524630 Out of stock	Use Ak51524630	£1.74 £1.45
521583	AK521583 Out of stock	Exhaust Elbow	£29.57 £24.64
521585	AK521585 Out of stock	Exhaust Elbow	£29.56 £24.63
521684	AK521684 Out of stock	Clutch	£280.60 £233.83
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
544515	AK544515 Out of stock	Clip	£0.73 £0.61
692795	AK692795 Out of stock	Nut	£1.24 £1.03
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700561	AK700561 Out of stock	Screw M10x25	£1.24 £1.03
701083	AK701083 Out of stock	Washer	£0.71 £0.59
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
701985	AK703550 Out of stock	Wheel Bolt	£23.34 £19.45
702254	AK702254 Out of stock	Washer M10 (Alt Use Ak700202)	£1.02 £0.85
703813	AK703813 Out of stock	Nut - Check For Unf 10x1 Order Ak706018	£0.71 £0.59
704128	AK704128 Out of stock	Screw	£0.71 £0.59
704534	AK704534 Out of stock	Nut M10	£0.71 £0.59
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
705260	AK705260 Out of stock	Clip	£0.71 £0.59
705360	AK705360 Out of stock	Screw M10 Fine x 35	£2.40 £2.00
705968	AK705968 Out of stock	Screw M6x15	£0.71 £0.59
706018	AK706018 In stock	Nut	£0.71 £0.59
706161	AK706161 Out of stock	Nut	£0.73 £0.61
46110730	AK46110730 Out of stock	Link	£7.57 £6.31
46110830	AK46110830 Out of stock	Lever	£7.38 £6.15
46826330	AK468263 Out of stock	Use Ak468263	£13.76 £11.47
46870530	AK46870530 Out of stock	Connection	£3.42 £2.85
47311530	AK473115 Out of stock	Use Ak473115	£2.63 £2.19
47311630	AK47311630 In stock	Rod	£25.99 £21.66
47312030	AK458130 Out of stock	Gear	£32.98 £27.48
47317310	AK47317330 In stock	Disc	£8.78 £7.32
47339530	AK47339530 Out of stock	Bolt	£7.38 £6.15
47353601	AK47353601 Out of stock	Chassis	£459.74 £383.12
47687130	AK47687130 Out of stock	Shaft	£35.38 £29.48
51461810	AK51461810 Out of stock	Gasket	£2.45 £2.04
