AL-KO Solo Comfort T13-93.3 HD - 127689 - Chassis

Name: AL-KO Solo Comfort T13-93.3 HD - 127689 - Chassis
SKU: AK127689_2-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Solo Comfort T13-93.3 HD - 127689 - Chassis

Description

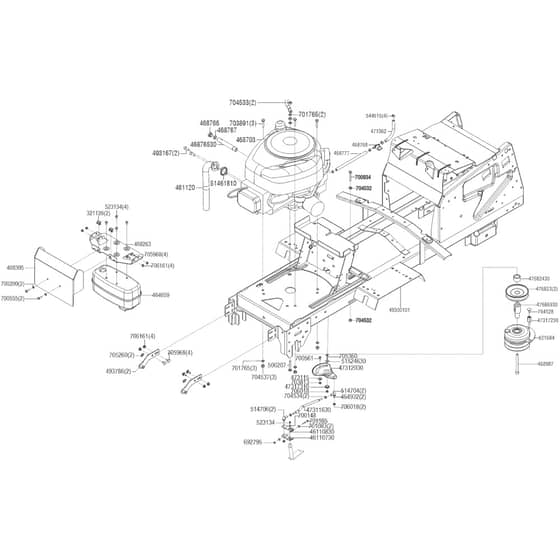

AL-KO Solo Comfort T13-93.3 HD - 127689 - Chassis - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
461120	AK461120 Out of stock	Exhaust Pipe	£29.71 £24.76
464659	AK46444510 Out of stock	Use Ak46444510	£49.68 £41.40
464932	AK464932 Out of stock	Ball Joint	£7.80 £6.50
468263	AK468263 Out of stock	Plate	£13.76 £11.47
468305	AK468305 Out of stock	Exhaust Plate	£9.90 £8.25
468766	AK468766 Out of stock	Oil Pipe Bung	£4.24 £3.53
468767	AK468767 Out of stock	Seal	£0.72 £0.60
468768	AK468768 Out of stock	Fuel Tap	£10.88 £9.07
468777	AK468777 Out of stock	Fuel Hose Tank	£2.98 £2.48
468987	AK468987 Out of stock	Screw	£7.49 £6.24
471362	AK471362 Out of stock	Fuel Line	£5.81 £4.84
473115	AK473115 Out of stock	Bearing	£2.52 £2.10
476823	AK476823 Out of stock	Pulley	£5.70 £4.75
493167	AK493167 Out of stock	Screw	£39.31 £32.76
493786	AK493786 Out of stock	Hood Hinge Comfort New	£14.42 £12.02
500207	AK500207 Out of stock	Screw M8x50	£2.11 £1.76
514704	AK514704 Out of stock	Spring	£0.72 £0.60
514706	AK514706 Out of stock	Ball Joint	£8.88 £7.40
521684	AK521684 Out of stock	Clutch	£280.60 £233.83
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
544515	AK544515 Out of stock	Clip	£0.73 £0.61
692795	AK692795 Out of stock	Nut	£1.24 £1.03
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700561	AK700561 Out of stock	Screw M10x25	£1.24 £1.03
700934	AK700934 Out of stock	Screw	£1.24 £1.03
701083	AK701083 Out of stock	Washer	£0.71 £0.59
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
701985	AK703550 Out of stock	Wheel Bolt	£23.34 £19.45
703813	AK703813 Out of stock	Nut - Check For Unf 10x1 Order Ak706018	£0.71 £0.59
703891	AK703891 Out of stock	Screw	£4.03 £3.36
704128	AK704128 Out of stock	Screw	£3.26 £2.72
704532	AK704532 Out of stock	Nut M6	£0.71 £0.59
704533	AK704533 Out of stock	Nut	£0.71 £0.59
704534	AK704534 Out of stock	Nut M10	£0.71 £0.59
704537	AK704537 Out of stock	Lock Nut M8	£0.94 £0.78
705260	AK705260 Out of stock	Clip	£0.71 £0.59
705360	AK705360 Out of stock	Screw M10 Fine x 35	£2.40 £2.00
705968	AK705968 Out of stock	Screw M6x15	£0.71 £0.59
706018	AK706018 Out of stock	Nut	£0.71 £0.59
706161	AK706161 Out of stock	Nut	£0.73 £0.61
46110730	AK46110730 Out of stock	Link	£7.57 £6.31
46110830	AK46110830 Out of stock	Lever	£7.38 £6.15
46876530	AK46876530 Out of stock	Drain Screw	£16.72 £13.93
47311630	AK47311630 In stock	Rod	£19.57 £16.31
47312030	AK458130 In stock	Gear	£32.77 £27.31
47317230	AK47317230 Out of stock	Bolt	£5.50 £4.58
47317310	AK47317330 Out of stock	Disc	£7.08 £5.90
47682430	AK47682430 Out of stock	Spacer	£13.30 £11.08
47686930	AK47686930 Out of stock	Shaft	£39.50 £32.92
49300101	AK49300101 Out of stock	Chassis	£495.36 £412.80
51461810	AK51461810 Out of stock	Gasket	£2.45 £2.04
51524630	AK51524630 Out of stock	Washer M10	£1.68 £1.40
