AL-KO Premium T16-105.6 HD V2 - 127370 - Deck: 3.2016 - 10.2016

Name: AL-KO Premium T16-105.6 HD V2 - 127370 - Deck: 3.2016 - 10.2016
SKU: AK127370_6_3_2016_10_2016-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Premium T16-105.6 HD V2 - 127370 - Deck: 3.2016 - 10.2016

Description

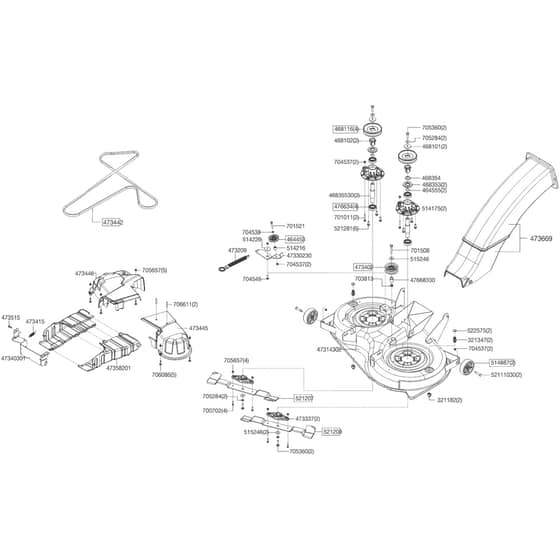

AL-KO Premium T16-105.6 HD V2 - 127370 - Deck - Parts Diagram

3.2016 - 10.2016

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Out of stock	Jet	£3.68 £3.07
321347	AK321347 Out of stock	Hose Connector	£7.97 £6.64
464453	AK464453 Out of stock	V-Pulley Small	£19.16 £15.97
464555	AK464555 Out of stock	Seal	£1.00 £0.83
468101	AK468101 Out of stock	Washer	£2.28 £1.90
468102	AK468102 Out of stock	Driver	£5.46 £4.55
468116	AK468116 Out of stock	Pulley Half (126mm Dia)	£5.71 £4.76
468353	AK468353 Out of stock	Washer	£1.80 £1.50
468354	AK46835430 Out of stock	Use Ak46835430	£2.45 £2.04
473209	AK473209 Out of stock	Spring - Tensioner Pulley - L x 157 No Rubber	£9.22 £7.68
473337	AK473337 Out of stock	Blade Boss	£21.94 £18.28
473402	AK473402 Out of stock	Pulley	£20.20 £16.83
473415	AK473415 Out of stock	Spring	£2.98 £2.48
473442	AK473442 Out of stock	Belt	£67.43 £56.19
473445	AK473445 Out of stock	Belt Cover	£19.32 £16.10
473446	AK473446 Out of stock	Cover For Belt Right	£23.08 £19.23
473515	AK473515 Out of stock	Sholuder Bolt	£3.18 £2.65
473669	AK493286 Out of stock	Chute When Nil 476813	£83.48 £69.57
476634	AK476634 Out of stock	Bearing	£8.95 £7.46
514175	AK514175 Out of stock	Bearing Block	£30.98 £25.82
514216	AK514216 Out of stock	Case	£2.68 £2.23
514220	AK514220 Out of stock	Spacer	£4.74 £3.95
514887	AK514887 Out of stock	Deck Wheel	£15.68 £13.07
515246	AK51524630 Out of stock	Use Ak51524630	£1.74 £1.45
521207	AK521207 Out of stock	Blade R/H - 102/105cm	£47.62 £39.68
521208	AK521208 Out of stock	Blade L/H - 102/105cm	£47.62 £39.68
521281	AK458568 Out of stock	Screw - Self Tapping	£2.11 £1.76
522575	AK522575 Out of stock	O-Ring	£1.25 £1.04
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
701011	AK701011 Out of stock	Screw M8x50	£1.24 £1.03
701508	AK701508 Out of stock	Screw	£2.11 £1.76
701521	AK701521 Out of stock	Screw M8x40	£1.24 £1.03
703813	AK703813 Out of stock	Nut - Check For Unf 10x1 Order Ak706018	£0.71 £0.59
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
704545	AK704545 Out of stock	Screw M8x25	£0.71 £0.59
705284	AK705284 Out of stock	Spring Washer M10	£3.53 £2.94
705360	AK705360 Out of stock	Screw M10 Fine x 35	£2.40 £2.00
705657	AK705657 In stock	Nut M6	£1.06 £0.88
706086	AK706086 Out of stock	Screw M6x20	£0.73 £0.61
706611	AK706611 Out of stock	45mm Pins	£0.88 £0.73
46835530	AK46835530 Out of stock	Blade Shaft	£33.86 £28.22
47314302	AK493562 Out of stock	Use Ak47314301	£401.95 £334.96
47330230	AK47330230 Out of stock	Bracket	£20.00 £16.67
47340301	AK47340301 Out of stock	Bracket	£21.23 £17.69
47358201	AK47358201 Out of stock	Guard	£30.02 £25.02
47668330	AK47668330 Out of stock	Spacer	£4.40 £3.67
52111030	AK521110 Out of stock	Wheel Bolt	£7.22 £6.02
