AL-KO Powerline T18-102 HD II - 118720 - Transmission

Name: AL-KO Powerline T18-102 HD II - 118720 - Transmission
SKU: AK118720_3-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline T18-102 HD II - 118720 - Transmission

Description

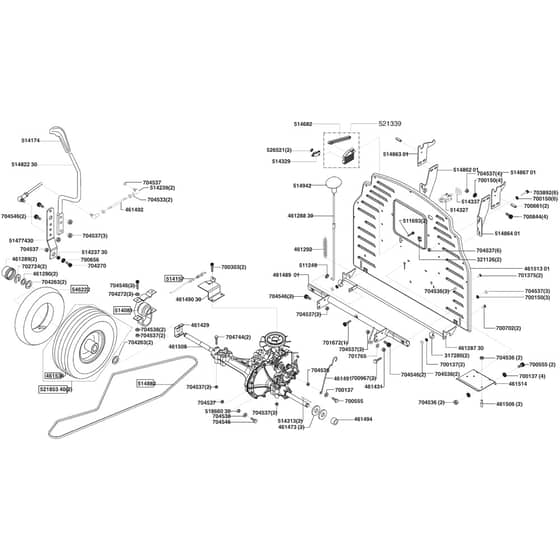

AL-KO Powerline T18-102 HD II - 118720 - Transmission - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
317280	AK317280 Out of stock	Clip	£3.00 £2.50
461289	AK461289 Out of stock	Cap	£4.48 £3.73
461290	AK461290 Out of stock	Washer	£2.10 £1.75
461292	AK461292 Out of stock	Spring	£4.39 £3.66
461429	AK461429 Out of stock	Plate	£6.16 £5.13
461431	AK461431 Out of stock	Nut	£0.73 £0.61
461473	AK461473 Out of stock	Disc	£10.16 £8.47
461491	AK461491 Out of stock	Rod	£8.08 £6.73
461492	AK46149230 Out of stock	Use Ak46149230	£7.02 £5.85
461494	AK46149430 Out of stock	Use Ak46149430	£5.09 £4.24
461506	AK461506 Out of stock	Bolt	£1.92 £1.60
461536	AK471020 Out of stock	Use Ak471020	£91.64 £76.37
511249	AK511249 Out of stock	Grip Fix Washer - 7mm	£1.25 £1.04
511693	AK468878 Out of stock	Use Ak468878	£0.71 £0.59
514081	AK514081 Out of stock	Bearing Assembly	£32.99 £27.49
514157	AK514157 Out of stock	Trans Brake Cable	£33.40 £27.83
514174	AK514174 Out of stock	Knob	£9.14 £7.62
514239	AK514239 In stock	Ball Joint	£8.45 £7.04
514313	AK514313 Out of stock	Key	£1.22 £1.02
514327	AK514327 Out of stock	Pressure Switch - (Grey Type)	£21.82 £18.18
514329	AK514329 Out of stock	Switch	£15.67 £13.06
514337	AK514337 Out of stock	Cap	£4.76 £3.97
514682	AK493511 Out of stock	Use Ak493511	£4.03 £3.36
514882	AK514882 Out of stock	Transmission Drive Belt	£54.94 £45.78
514942	AK514942 Out of stock	Button	£1.92 £1.60
521339	AK521339 Out of stock	Arm And Case Assy	£15.23 £12.69
526521	AK526521 Out of stock	Push Fix 2.5mm	£0.73 £0.61
546222	AK468870 Out of stock	Use Ak468870	£47.60 £39.67
700137	AK700137 Out of stock	Washer M6	£0.88 £0.73
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700303	AK703926 Out of stock	Use Ak703926	£1.69 £1.41
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700656	AK705284 Out of stock	Use Ak705284	£3.53 £2.94
700661	AK700661 Out of stock	Sleeve	£0.71 £0.59
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
700844	AK704128 Out of stock	Use Ak704128	£0.71 £0.59
700967	AK700967 Out of stock	Screw	£1.24 £1.03
701375	AK701375 Out of stock	Screw	£0.73 £0.61
701672	AK701672 Out of stock	Screw M8x45	£1.49 £1.24
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
703892	AK703892 Out of stock	Screw	£0.73 £0.61
704263	AK705617 Out of stock	Use Ak705617	£0.88 £0.73
704270	AK704270 Out of stock	Screw M8x25	£0.88 £0.73
704272	AK704272 Out of stock	Washer 8mm	£0.73 £0.61
704533	AK704533 Out of stock	Nut	£0.71 £0.59
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
704744	AK704744 Out of stock	Screw	£1.40 £1.17
46128730	AK46128730 Out of stock	Alko Rear Box Latch	£20.94 £17.45
46128830	AK46128830 Out of stock	Lever	£14.92 £12.43
46148901	AK46431601 Out of stock	Use Ak46431601	£49.48 £41.23
46149030	AK461490 Out of stock	Use Ak461490	£8.63 £7.19
46151301	AK46151301 Out of stock	Back Plate	£65.83 £54.86
51423730	AK514237 Out of stock	Use Ak514237	£1.76 £1.47
51477430	AK51477430 Out of stock	Plate	£8.78 £7.32
51482230	AK51482230 Out of stock	Gear-Shift Lever	£202.76 £168.97
51486201	AK51486201 Out of stock	Bearing Bracket Rh	£15.10 £12.58
51486301	AK51486301 Out of stock	Bearing Bracket Rh	£13.30 £11.08
51486401	AK51486401 Out of stock	Bearing Bracket	£14.92 £12.43
51486701	AK51486701 Out of stock	Bearing Bracket Lh	£11.77 £9.81
51866030	AK51866030 Out of stock	Sleeve	£1.40 £1.17
52185340	AK457684 Out of stock	Use Ak47101840	£169.70 £141.42
