AL-KO Powerline T18-102 HD II - 118720 - Cutter Deck

Name: AL-KO Powerline T18-102 HD II - 118720 - Cutter Deck
SKU: AK118720_5-group
Price: 0.53 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline T18-102 HD II - 118720 - Cutter Deck

Description

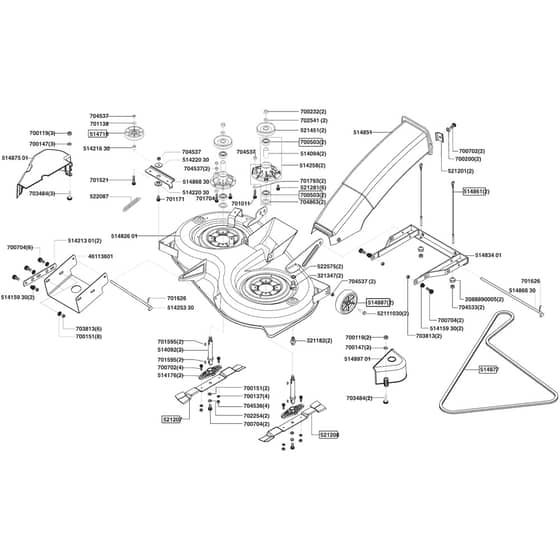

AL-KO Powerline T18-102 HD II - 118720 - Cutter Deck - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Out of stock	Jet	£3.68 £3.07
321347	AK321347 Out of stock	Hose Connector	£7.97 £6.64
514092	AK452585 Out of stock	Use Ak452585	£84.83 £70.69
514094	AK514094 Out of stock	Spacer	£11.20 £9.33
514176	AK514176 Out of stock	Blade Boss	£23.76 £19.80
514716	AK464454 Out of stock	Use Ak464454	£27.22 £22.68
514851	AK514851 Out of stock	Chute T102	£75.47 £62.89
514861	AK514861 Out of stock	Lift Cable	£8.68 £7.23
514877	AK514877 Out of stock	Deck Belt - (Twin Blade)	£83.62 £69.68
514887	AK514887 Out of stock	Deck Wheel	£15.68 £13.07
521201	AK521201 Out of stock	Disc	£1.50 £1.25
521207	AK521207 Out of stock	Blade R/H - 102/105cm	£47.62 £39.68
521208	AK521208 Out of stock	Blade L/H - 102/105cm	£47.62 £39.68
521281	AK458568 Out of stock	Screw - Self Tapping	£2.11 £1.76
521451	AK521451 Out of stock	Pulley	£41.65 £34.71
522087	AK522087 Out of stock	Spring	£7.79 £6.49
522575	AK522575 Out of stock	O-Ring	£1.25 £1.04
700119	AK700119 Out of stock	Nut M5	£1.76 £1.47
700137	AK700137 Out of stock	Washer M6	£0.88 £0.73
700147	AK703451 Out of stock	Washer	£0.64 £0.53
700151	AK700151 Out of stock	Washer M10	£0.73 £0.61
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700232	AK702801 Out of stock	Nut When Nil Use Ak702801	£3.36 £2.80
700503	AK476634 Out of stock	Use Ak476634	£8.95 £7.46
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
700704	AK700704 Out of stock	Screw M10x30	£1.56 £1.30
701011	AK701011 Out of stock	Screw M8x50	£1.24 £1.03
701138	AK706592 Out of stock	Use Ak706592	£0.71 £0.59
701171	AK701171 Out of stock	Screw M8x30	£0.88 £0.73
701521	AK701521 Out of stock	Screw M8x40	£1.24 £1.03
701595	AK701595 In stock	Key	£3.00 £2.50
701626	AK701626 Out of stock	R Clip	£0.96 £0.80
701704	AK701704 Out of stock	Screw M8x60	£1.33 £1.11
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702254	AK702254 Out of stock	Washer M10 (Alt Use Ak700202)	£1.02 £0.85
702541	AK702541 Out of stock	Washer M16	£0.71 £0.59
703484	AK703484 Out of stock	Screw M5x16	£0.71 £0.59
703813	AK703813 Out of stock	Nut - Check For Unf 10x1 Order Ak706018	£0.71 £0.59
704533	AK704533 Out of stock	Nut	£0.71 £0.59
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704863	AK704863 Out of stock	Seal	£3.34 £2.78
46113601	AK46113601 Out of stock	Front Height Adjuster	£34.22 £28.52
51415930	AK51415930 Out of stock	Spacer	£2.63 £2.19
51421301	AK51421301 Out of stock	Height Adjuster	£12.64 £10.53
51421630	AK514216 Out of stock	Use Ak514216	£2.68 £2.23
51422030	AK514220 Out of stock	Use Ak514220	£4.74 £3.95
51425330	AK51425330 Out of stock	Bar/Rod	£16.85 £14.04
51482601	AK51482601 Out of stock	Cutter Deck 102cm - Rear Discharge	£326.93 £272.44
51483401	AK51483401 Out of stock	Suspension Device - Rear Deck	£54.38 £45.32
51486630	AK51486630 Out of stock	Rod	£18.26 £15.22
51486830	AK514868 Out of stock	Use Ak514868	£7.43 £6.19
51487501	AK51487501 Out of stock	Pulley Guard 102cm Deck	£11.88 £9.90
51489701	AK51489701 Out of stock	Cover	£6.56 £5.47
52111030	AK521110 Out of stock	Wheel Bolt	£7.22 £6.02
2088890005	AK468923 Out of stock	Use Ak468923	£5.18 £4.32
