AL-KO Powerline T15-102 HDS - 118352 - Transmission: 2.2003 - 10.2003

Name: AL-KO Powerline T15-102 HDS - 118352 - Transmission: 2.2003 - 10.2003
SKU: AK118352_3_2_2003_10_2003-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Powerline T15-102 HDS - 118352 - Transmission: 2.2003 - 10.2003

Description

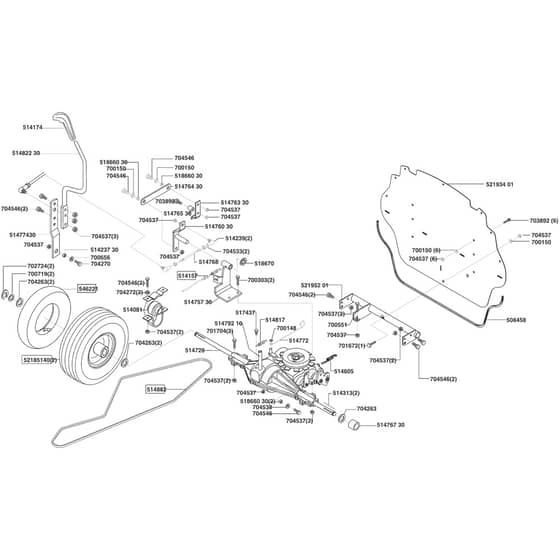

AL-KO Powerline T15-102 HDS - 118352 - Transmission - Parts Diagram

2.2003 - 10.2003

Be the first to review this product

0 product questions

	Part No.	Details
514081	AK514081 Out of stock	Bearing Assembly	£32.99 £27.49
514157	AK514157 Out of stock	Trans Brake Cable	£33.40 £27.83
514174	AK514174 Out of stock	Knob	£9.14 £7.62
514239	AK514239 In stock	Ball Joint	£8.45 £7.04
514313	AK514313 Out of stock	Key	£1.22 £1.02
514605	AK514605 Out of stock	Return Spring	£4.39 £3.66
514768	AK514768 Out of stock	Rod	£3.12 £2.60
514772	AK514772 Out of stock	Bypass Bolt	£11.06 £9.22
514817	AK514817 Out of stock	Spring	£2.46 £2.05
514882	AK514882 Out of stock	Transmission Drive Belt	£54.94 £45.78
517437	AK517437 Out of stock	Screw	£0.73 £0.61
518670	AK518670 Out of stock	Washer 12mm	£1.56 £1.30
546221	AK468870 Out of stock	Use Ak546222	£47.60 £39.67
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700303	AK703926 Out of stock	Use Ak703926	£1.69 £1.41
700551	AK703891 Out of stock	Use Ak500071	£0.88 £0.73
700656	AK705284 Out of stock	Use Ak705284	£3.53 £2.94
700719	AK700719 Out of stock	Washer 22mm	£1.58 £1.32
701672	AK701672 Out of stock	Screw M8x45	£1.49 £1.24
701704	AK701704 Out of stock	Screw M8x60	£1.33 £1.11
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
703892	AK703892 Out of stock	Screw	£0.73 £0.61
704263	AK705617 Out of stock	Use Ak705617	£0.88 £0.73
704270	AK704270 Out of stock	Screw M8x25	£0.88 £0.73
704272	AK704272 Out of stock	Washer 8mm	£0.73 £0.61
704533	AK704533 Out of stock	Nut	£0.71 £0.59
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
51423730	AK514237 Out of stock	Use Ak514237	£1.76 £1.47
51475730	AK51475730 Out of stock	Bearing Pedestal	£57.22 £47.68
51476030	AK51476030 Out of stock	Reverse Transfer Lever	£33.71 £28.09
51476330	AK51476330 Out of stock	Control Arm	£19.32 £16.10
51476430	AK51476430 Out of stock	Bar	£4.24 £3.53
51476530	AK51476530 Out of stock	Spacer	£6.26 £5.22
51476730	AK51476730 Out of stock	Spacer Hydro	£6.94 £5.78
51477430	AK51477430 Out of stock	Plate	£8.78 £7.32
51482230	AK51482230 Out of stock	Gear-Shift Lever	£202.76 £168.97
51866030	AK51866030 Out of stock	Sleeve	£1.40 £1.17
52185140	AK46483340 Out of stock	Use Ak46483340	£149.20 £124.33
52193401	AK46151201 Out of stock	Flap	£49.68 £41.40
