AL-KO Powerline T15-102 HDS - 118352 - Cutter Deck: 2.2003 - 10.2003

Description

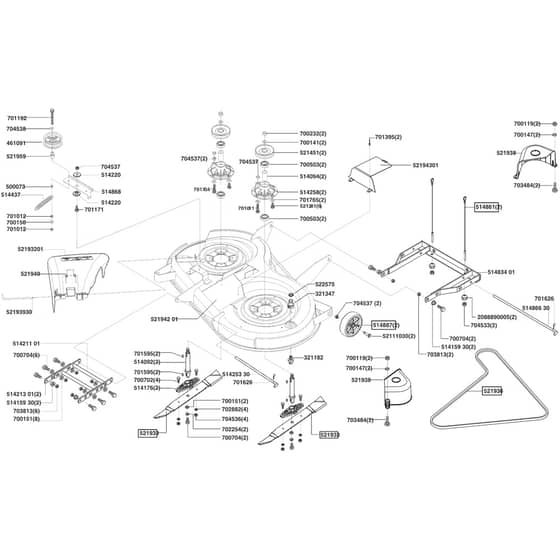

AL-KO Powerline T15-102 HDS - 118352 - Cutter Deck - Parts Diagram

2.2003 - 10.2003

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Out of stock	Jet	£3.68 £3.07
321347	AK321347 Out of stock	Hose Connector	£7.97 £6.64
461091	AK461091 Out of stock	Pulley	£25.79 £21.49
500073	AK500073 Out of stock	Nut	£1.16 £0.97
514092	AK452585 Out of stock	Use Ak452585	£84.83 £70.69
514094	AK514094 Out of stock	Spacer	£11.20 £9.33
514176	AK514176 Out of stock	Blade Boss	£23.76 £19.80
514220	AK514220 Out of stock	Spacer	£4.74 £3.95
514861	AK514861 Out of stock	Lift Cable	£8.68 £7.23
514868	AK514868 Out of stock	Tensioner	£7.43 £6.19
514887	AK514887 Out of stock	Deck Wheel	£15.68 £13.07
521281	AK458568 Out of stock	Screw - Self Tapping	£2.11 £1.76
521451	AK521451 Out of stock	Pulley	£41.65 £34.71
521933	AK521933 Out of stock	Blade	£40.13 £33.44
521936	AK521936 Out of stock	Drive Belt	£51.96 £43.30
521938	AK521938 Out of stock	Cover	£15.10 £12.58
521940	AK521940 Out of stock	Spring	£7.38 £6.15
521959	AK521959 Out of stock	Case	£3.17 £2.64
522575	AK522575 Out of stock	O-Ring	£1.25 £1.04
700119	AK700119 Out of stock	Nut M5	£1.76 £1.47
700141	AK702541 Out of stock	Use Ak702541	£0.71 £0.59
700147	AK703451 Out of stock	Washer	£0.64 £0.53
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700151	AK700151 Out of stock	Washer M10	£0.73 £0.61
700232	AK702801 Out of stock	Nut When Nil Use Ak702801	£3.36 £2.80
700503	AK476634 Out of stock	Use Ak476634	£8.95 £7.46
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
700704	AK700704 Out of stock	Screw M10x30	£1.56 £1.30
701011	AK701011 Out of stock	Screw M8x50	£1.24 £1.03
701012	AK701012 Out of stock	Nut	£1.15 £0.96
701171	AK701171 Out of stock	Screw M8x30	£0.88 £0.73
701192	AK701192 Out of stock	Screw	£2.11 £1.76
701395	AK701395 Out of stock	Rivet	£0.74 £0.62
701595	AK701595 In stock	Key	£3.00 £2.50
701626	AK701626 Out of stock	R Clip	£0.96 £0.80
701704	AK701704 Out of stock	Screw M8x60	£1.33 £1.11
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702254	AK702254 Out of stock	Washer M10 (Alt Use Ak700202)	£1.02 £0.85
702882	AK700137 Out of stock	Use Ak700137	£0.88 £0.73
703484	AK703484 Out of stock	Screw M5x16	£0.71 £0.59
703813	AK703813 Out of stock	Nut - Check For Unf 10x1 Order Ak706018	£0.71 £0.59
704533	AK704533 Out of stock	Nut	£0.71 £0.59
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
51415930	AK51415930 Out of stock	Spacer	£2.63 £2.19
51421101	AK46113601 Out of stock	Use Ak46113601	£34.22 £28.52
51421301	AK51421301 Out of stock	Height Adjuster	£12.64 £10.53
51425330	AK51425330 Out of stock	Bar/Rod	£16.85 £14.04
51483401	AK51483401 Out of stock	Suspension Device - Rear Deck	£54.38 £45.32
51486630	AK51486630 Out of stock	Rod	£18.26 £15.22
52111030	AK521110 Out of stock	Wheel Bolt	£7.22 £6.02
52193201	AK52193201 Out of stock	Exhaust Flap	£18.79 £15.66
52193930	AK52193930 Out of stock	Plug	£8.95 £7.46
52194201	AK46129601 Out of stock	Use Ak46129601	£561.55 £467.96
2088890005	AK468923 Out of stock	Use Ak468923	£5.18 £4.32
