AL-KO Easy-Mow 4610 H - 119087 - Main Assembly: 1.2008 - 4.2008

Name: AL-KO Easy-Mow 4610 H - 119087 - Main Assembly: 1.2008 - 4.2008
SKU: AK119087_1_1_2008_4_2008-group
Price: 0.31 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Easy-Mow 4610 H - 119087 - Main Assembly: 1.2008 - 4.2008

Description

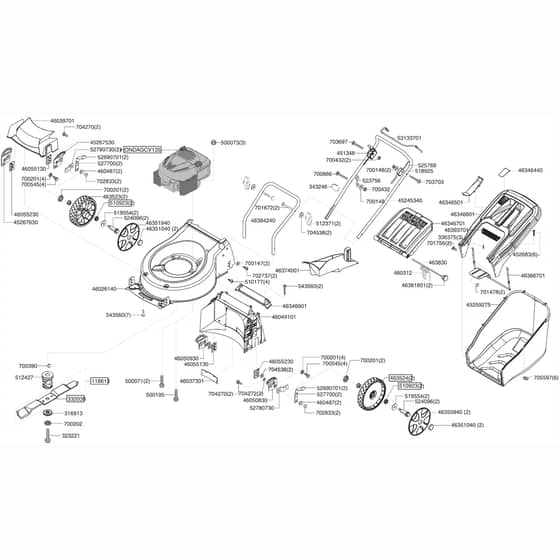

AL-KO Easy-Mow 4610 H - 119087 - Main Assembly - Parts Diagram

1.2008 - 4.2008

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Out of stock	Washer	£2.80 £2.33
323221	AK457347 Out of stock	Bolt	£3.04 £2.53
332039	AK440125 Out of stock	Blade 18"	£35.96 £29.97
336375	AK336375 Out of stock	Screw 14mm	£0.71 £0.59
343246	AK523982 Out of stock	Use Ak523982	£0.37 £0.31
451348	AK531828 Out of stock	Use Ak531828	£23.44 £19.53
452683	AK336003 Out of stock	Screw	£0.86 £0.72
460312	AK460312 Out of stock	Spring	£6.38 £5.32
463523	AK463523 Out of stock	Front Wheel - 180mm	£18.19 £15.16
463524	AK463524 Out of stock	Rear Wheel Assy	£21.07 £17.56
463830	AK463830 Out of stock	Bar	£1.82 £1.52
500071	AK456208 Out of stock	Ak500071	£1.06 £0.88
500073	AK500073 Out of stock	Nut	£1.16 £0.97
500195	AK500195 Out of stock	Screw	£2.30 £1.92
510177	AK526611 Out of stock	Screw 14mm	£1.06 £0.88
510923	AK510923 Out of stock	Bearing	£6.84 £5.70
512371	AK544675 Out of stock	Use Ak544675	£2.82 £2.35
512427	AK512427 Out of stock	Blade Boss 22mm	£17.34 £14.45
518925	AK474669 Out of stock	Cable Holder	£4.08 £3.40
519554	AK519554 Out of stock	Spacer	£1.25 £1.04
523756	AK523756 Out of stock	Guide	£2.24 £1.87
525769	AK525769 Out of stock	Opc Cable	£20.28 £16.90
527700	AK52770030 Out of stock	Use Ak52770030	£6.85 £5.71
543560	AK543560 Out of stock	Screw 10mm	£0.88 £0.73
700147	AK703451 Out of stock	Washer	£0.64 £0.53
700201	AK700201 Out of stock	Washer M8	£0.73 £0.61
700202	AK700202 Out of stock	Grip Fix Washer - M10	£0.72 £0.60
700390	AK700390 Out of stock	Woodruff Key	£0.73 £0.61
700432	AK700432 Out of stock	Dome Nut M6	£0.71 £0.59
700545	AK700545 Out of stock	Bolt M8x16	£0.71 £0.59
700866	AK700866 Out of stock	Screw M6x30	£0.71 £0.59
701478	AK701478 Out of stock	Dome Nut M5	£0.73 £0.61
701672	AK701672 Out of stock	Screw M8x45	£1.39 £1.16
701756	AK701756 Out of stock	Screw M5x10	£0.71 £0.59
702737	AK702737 Out of stock	Screw St4.8x19mm	£0.94 £0.78
702833	AK704537 Out of stock	Use Ak704537	£0.94 £0.78
703697	AK703697 Out of stock	Screw M6x55	£1.00 £0.83
703703	AK703703 Out of stock	Screw	£0.88 £0.73
704270	AK704270 Out of stock	Screw M8x25	£0.88 £0.73
704272	AK704272 Out of stock	Washer 8mm	£0.73 £0.61
704538	AK704538 Out of stock	Washer M8	£0.88 £0.73
705597	AK705597 Out of stock	Clip	£0.88 £0.73
45245340	AK45245340 Out of stock	Top Handle	£34.22 £28.52
45259275	AK456010 Out of stock	Use Ak46381601	£40.01 £33.34
45267530	AK45267530 Out of stock	Height Quadrant	£7.38 £6.15
45267630	AK45267630 Out of stock	Height Quadrant	£7.38 £6.15
46026140	AK46026140 Out of stock	Housing - 4 Height Levers	£80.71 £67.26
46037301	AK46037301 Out of stock	Cover	£2.33 £1.94
46039701	AK46026601 Out of stock	Front Cover	£12.46 £10.38
46049101	AK46049101 Out of stock	Casing	£27.91 £23.26
46050830	AK46050830 Out of stock	Quadrant	£7.92 £6.60
46050930	AK46050930 Out of stock	Quadrant	£6.16 £5.13
46055130	AK46055130 Out of stock	Wheel Bracket	£6.50 £5.42
46055230	AK46055230 Out of stock	Wheel Bracket	£6.77 £5.64
46346440	AK46346401 Out of stock	Use Ak46346401	£1.08 £0.90
46346501	AK46346540 Out of stock	Use Ak46346540	£5.11 £4.26
46346601	AK46346601 Out of stock	Upper Grass Box Black	£24.86 £20.72
46346901	AK46346901 Out of stock	Cover	£7.06 £5.88
46350940	AK46350940 Out of stock	Hub Cap	£2.63 £2.19
46351040	AK46351040 Out of stock	Cap	£0.73 £0.61
46351940	AK46351940 Out of stock	Wheel Cap - 150mm	£2.41 £2.01
46366701	AK46366701 Out of stock	Bag Frame	£42.13 £35.11
46374001	AK46374001 Out of stock	Mulch Wedge - 46cm	£17.18 £14.32
46381801	AK46051201 Out of stock	Use Ak46051201	£1.24 £1.03
46384240	AK46384240 Out of stock	Lower Handle	£24.25 £20.21
46393701	AK46393702 Out of stock	Cover	£3.74 £3.12
52690701	AK526907 Out of stock	Use Ak526907	£3.17 £2.64
52780730	AK52780730 In stock	Bracket	£4.80 £4.00
53133701	AK5313370210 Out of stock	Opc Handle Use Ak5313370210	£18.08 £15.07
