AL-KO Concord T15-102 - 118332 - Chassis: from 10.2004

Description

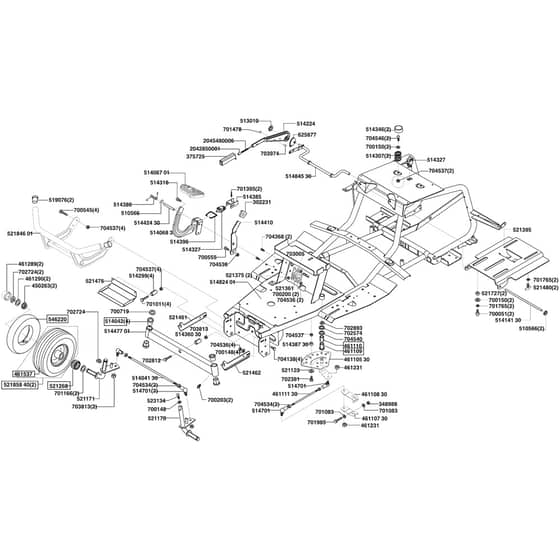

AL-KO Concord T15-102 - 118332 - Chassis - Parts Diagram

from 10.2004

Be the first to review this product

0 product questions

	Part No.	Details
302231	AK302231 Out of stock	Grip	£6.48 £5.40
348988	AK692795 Out of stock	Nut	£1.24 £1.03
375725	AK375725 Out of stock	Handle	£9.83 £8.19
450263	AK450263 Out of stock	Bush	£2.51 £2.09
461109	AK461109 Out of stock	Bush	£9.00 £7.50
461110	AK461110 Out of stock	Bush	£3.53 £2.94
461231	AK461231 Out of stock	Nut	£0.71 £0.59
461289	AK461289 Out of stock	Cap	£4.48 £3.73
461290	AK461290 Out of stock	Washer	£2.10 £1.75
461537	AK461535 Out of stock	Use Ak461535	£60.16 £50.13
510566	AK510566 Out of stock	Fastener 8mm	£1.24 £1.03
513010	AK513010 Out of stock	Fastener	£5.24 £4.37
514042	AK514042 Out of stock	Bush	£11.06 £9.22
514224	AK514224 Out of stock	Lever	£72.40 £60.33
514299	AK514299 Out of stock	Spacer	£3.17 £2.64
514307	AK514307 Out of stock	Seat Spring	£4.60 £3.83
514316	AK514316 Out of stock	Screw	£1.24 £1.03
514327	AK514327 Out of stock	Pressure Switch - (Grey Type)	£21.82 £18.18
514346	AK514346 Out of stock	Cap	£1.43 £1.19
514385	AK514385 Out of stock	Holder	£2.30 £1.92
514386	AK514386 Out of stock	Spring Rh	£4.04 £3.37
514396	AK51439630 Out of stock	Use Ak51439630	£2.11 £1.76
514410	AK514410 Out of stock	Arm Rh	£13.00 £10.83
514701	AK514701 Out of stock	Ball Joint - Alt Nut Lower Migb/T6171 M10x1	£17.47 £14.56
519076	AK519076 Out of stock	Plug - 3.0cm	£1.13 £0.94
521123	AK521123 Out of stock	Washer	£5.09 £4.24
521170	AK51403730 Out of stock	Use Ak51403730	£35.46 £29.55
521171	AK51403830 Out of stock	Use Ak51403830	£34.85 £29.04
521268	AK521268 Out of stock	Bearing - 20x30x55	£9.62 £8.02
521361	AK521361 Out of stock	Tractor Solenoid	£31.20 £26.00
521375	AK521375 Out of stock	Nut	£0.71 £0.59
521395	AK521395 Out of stock	Bracket W/Spring	£41.33 £34.44
521461	AK521461 Out of stock	R/H Bracket	£5.47 £4.56
521462	AK521462 Out of stock	L/H Bracket	£5.47 £4.56
521475	AK521475 Out of stock	Plate	£12.08 £10.07
521480	AK521480 Out of stock	Wingnut	£2.10 £1.75
521727	AK52172730 Out of stock	Use Ak52172730	£1.76 £1.47
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
546220	AK546220 Out of stock	Tube	£41.93 £34.94
625877	AK625877 Out of stock	Gear Segment	£7.02 £5.85
700051	AK700051 Out of stock	Screw M8x20	£0.71 £0.59
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700203	AK700203 Out of stock	Grease Nipple	£0.88 £0.73
700545	AK700545 Out of stock	Bolt M8x16	£0.71 £0.59
700555	AK700555 Out of stock	Bolt	£0.71 £0.59
700719	AK700719 Out of stock	Washer 22mm	£1.58 £1.32
701011	AK701011 Out of stock	Screw M8x50	£1.24 £1.03
701083	AK701083 Out of stock	Washer	£0.71 £0.59
701166	AK701166 Out of stock	Washer	£0.71 £0.59
701395	AK701395 Out of stock	Rivet	£0.74 £0.62
701478	AK701478 Out of stock	Dome Nut M5	£0.73 £0.61
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
701985	AK703550 Out of stock	Wheel Bolt	£23.34 £19.45
702381	AK702381 Out of stock	Screw	£0.90 £0.75
702574	AK702574 Out of stock	Washer	£1.68 £1.40
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
702812	AK705433 Out of stock	Use Ak705433	£1.92 £1.60
702893	AK702893 Out of stock	Clip	£0.73 £0.61
703813	AK703813 Out of stock	Nut - Check For Unf 10x1 Order Ak706018	£0.71 £0.59
703974	AK703974 Out of stock	Screw	£0.71 £0.59
704138	AK705968 Out of stock	Use Ak705968	£0.71 £0.59
704368	AK704368 Out of stock	Screw	£0.73 £0.61
704534	AK704534 Out of stock	Nut M10	£0.71 £0.59
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704540	AK704540 Out of stock	Washer M12	£0.71 £0.59
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
46110530	AK46110530 Out of stock	Quadrant	£47.94 £39.95
46110730	AK46110730 Out of stock	Link	£7.57 £6.31
46110830	AK46110830 Out of stock	Lever	£7.38 £6.15
46111130	AK46111130 Out of stock	Height Adj Bar	£6.50 £5.42
51406830	AK51406830 Out of stock	Throttle Arm	£21.07 £17.56
51436030	AK51436030 Out of stock	Bush	£4.56 £3.80
51438730	AK51438730 Out of stock	Spacer	£2.98 £2.48
51442430	AK51442430 Out of stock	Shaft	£5.81 £4.84
51447701	AK521078 Out of stock	Use Ak521078	£76.34 £63.62
51482401	AK51482401 Out of stock	Frame T102	£615.23 £512.69
51484530	AK51484530 Out of stock	Shaft	£30.02 £25.02
52184601	AK52184601 Out of stock	Bumper	£60.54 £50.45
52185840	AK493536 Out of stock	Use Ak46483440	£91.24 £76.03
2042850001	AK2042850001 Out of stock	Button	£4.48 £3.73
2045480006	AK2045480006 Out of stock	Spring	£11.59 £9.66
