AL-KO Concord T15-102 - 118246 - Engine: before 4.2002

Name: AL-KO Concord T15-102 - 118246 - Engine: before 4.2002
SKU: AK118246_4_before_4_2002-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T15-102 - 118246 - Engine: before 4.2002

Description

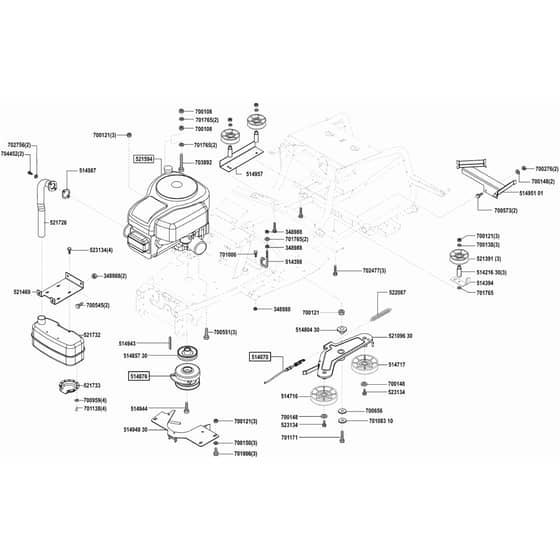

AL-KO Concord T15-102 - 118246 - Engine - Parts Diagram

before 4.2002

Be the first to review this product

0 product questions

	Part No.	Details
348988	AK692795 Out of stock	Nut	£1.24 £1.03
514070	AK514070 Out of stock	Tractor Clutch Cable	£27.54 £22.95
514394	AK514394 Out of stock	Guide	£9.83 £8.19
514398	AK514398 Out of stock	Guide	£3.68 £3.07
514716	AK464454 Out of stock	Use Ak464454	£27.22 £22.68
514717	AK464455 Out of stock	Use Ak464455	£32.63 £27.19
514876	AK464115 Out of stock	Use Ak464115	£258.05 £215.04
514943	AK514943 Out of stock	Key	£1.16 £0.97
514944	AK514944 Out of stock	Bolt 75mm	£9.16 £7.63
514987	AK514987 Out of stock	Sealing Flange Exhaust B&S	£4.94 £4.12
521391	AK464453 Out of stock	Use Ak464453	£19.16 £15.97
521469	AK521469 Out of stock	Plate	£8.95 £7.46
521726	AK521726 Out of stock	Pipe	£32.46 £27.05
521732	AK46444510 Out of stock	Use Ak46444510	£49.68 £41.40
521733	AK521733 Out of stock	Deflector	£9.66 £8.05
522087	AK522087 Out of stock	Spring	£7.79 £6.49
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
700108	AK704533 Out of stock	Nut - M8	£0.71 £0.59
700121	AK704537 Out of stock	Use Ak704537	£1.16 £0.97
700138	AK704538 Out of stock	Washer M8	£0.86 £0.72
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700276	AK704536 In stock	Use Ak704536	£0.88 £0.73
700545	AK700545 Out of stock	Bolt M8x16	£0.71 £0.59
700551	AK703891 Out of stock	Use Ak500071	£0.88 £0.73
700573	AK706086 Out of stock	Use Ak706086	£0.73 £0.61
700656	AK705284 Out of stock	Use Ak705284	£3.53 £2.94
700959	AK700959 Out of stock	Washer	£0.73 £0.61
701006	AK704546 Out of stock	Use Ak704546	£0.71 £0.59
701138	AK706592 Out of stock	Use Ak706592	£0.71 £0.59
701171	AK701171 Out of stock	Screw M8x30	£0.88 £0.73
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702477	AK702477 Out of stock	Screw	£1.69 £1.41
702756	AK702756 Out of stock	Tooth Lock Washer	£0.73 £0.61
703892	AK703892 Out of stock	Screw	£0.73 £0.61
51421630	AK514216 Out of stock	Use Ak514216	£2.68 £2.23
51480430	AK51480430 Out of stock	Spacer	£2.98 £2.48
51485730	AK51485730 Out of stock	Pulley	£56.17 £46.81
51495101	AK51495101 Out of stock	Guide	£32.14 £26.78
52109630	AK52109630 Out of stock	Pulley Arm	£51.24 £42.70
70108310	AK701083 Out of stock	Use Ak701083	£0.71 £0.59
