AL-KO Concord T13-85 - 110820 - Cutter Deck: 10.2000 - 1.2001

Name: AL-KO Concord T13-85 - 110820 - Cutter Deck: 10.2000 - 1.2001
SKU: AK110820_5_10_2000_1_2001-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T13-85 - 110820 - Cutter Deck: 10.2000 - 1.2001

Description

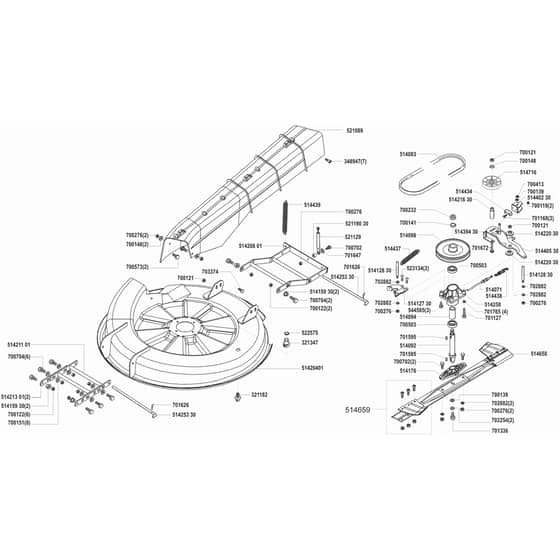

AL-KO Concord T13-85 - 110820 - Cutter Deck - Parts Diagram

10.2000 - 1.2001

Be the first to review this product

0 product questions

	Part No.	Details
321182	AK321182 Out of stock	Jet	£3.68 £3.07
321347	AK321347 Out of stock	Hose Connector	£7.97 £6.64
348947	AK470375 Out of stock	Screw	£0.89 £0.74
514083	AK514083 Out of stock	Belt - (Single Blade Deck)	£36.48 £30.40
514092	AK452585 Out of stock	Use Ak452585	£84.83 £70.69
514094	AK514094 Out of stock	Spacer	£11.20 £9.33
514098	AK514098 Out of stock	Pulley	£58.87 £49.06
514176	AK514176 Out of stock	Blade Boss	£23.76 £19.80
514434	AK514434 Out of stock	Brake Pad	£40.01 £33.34
514438	AK514438 Out of stock	Spring	£8.77 £7.31
514439	AK514439 Out of stock	Spring - No Longer Available	£9.88 £8.23
514658	AK514658 Out of stock	82cm Blade	£92.40 £77.00
514659	AK514659 Out of stock	Blade Tips - Kit (2 x Uplift Wings & Fixings)	£25.98 £21.65
514716	AK464454 Out of stock	Use Ak464454	£27.22 £22.68
521089	AK521089 Out of stock	Chute	£64.93 £54.11
521129	AK521129 Out of stock	Height Adjust Cable	£27.25 £22.71
522575	AK522575 Out of stock	O-Ring	£1.25 £1.04
523134	AK523134 Out of stock	Screw M6x12 St	£0.71 £0.59
544585	AK458568 Out of stock	Use Ak521281	£2.11 £1.76
700119	AK700119 Out of stock	Nut M5	£1.76 £1.47
700121	AK704537 Out of stock	Use Ak704537	£1.16 £0.97
700122	AK703813 Out of stock	Use Ak703813	£0.71 £0.59
700139	AK704539 Out of stock	Washer M10	£0.71 £0.59
700141	AK702541 Out of stock	Use Ak702541	£0.71 £0.59
700151	AK700151 Out of stock	Washer M10	£0.73 £0.61
700232	AK702801 Out of stock	Nut When Nil Use Ak702801	£3.36 £2.80
700276	AK704536 In stock	Use Ak704536	£0.88 £0.73
700413	AK700413 Out of stock	Circlip	£1.50 £1.25
700503	AK476634 Out of stock	Use Ak476634	£8.95 £7.46
700573	AK706086 Out of stock	Use Ak706086	£0.73 £0.61
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
700704	AK700704 Out of stock	Screw M10x30	£1.56 £1.30
701127	AK704744 Out of stock	Use Ak704744	£1.40 £1.17
701168	AK701745 Out of stock	Screw	£1.40 £1.17
701336	AK701336 Out of stock	Bolt 10x35	£1.82 £1.52
701595	AK701595 In stock	Key	£3.00 £2.50
701626	AK701626 Out of stock	R Clip	£0.96 £0.80
701647	AK701647 Out of stock	Washer	£0.71 £0.59
701672	AK701672 Out of stock	Screw M8x45	£1.49 £1.24
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702254	AK702254 Out of stock	Washer M10 (Alt Use Ak700202)	£1.02 £0.85
702882	AK700137 Out of stock	Use Ak700137	£0.88 £0.73
703374	AK700963 Out of stock	Use Ak700963	£1.15 £0.96
51412730	AK51412730 Out of stock	Bracket	£7.52 £6.27
51412830	AK51412830 Out of stock	Bar	£7.50 £6.25
51415930	AK51415930 Out of stock	Spacer	£2.63 £2.19
51420401	AK51420401 Out of stock	Cutter Deck 82cm	£495.31 £412.76
51420801	AK51420801 Out of stock	Rear Height Adjuster	£45.65 £38.04
51421101	AK46113601 Out of stock	Use Ak46113601	£34.22 £28.52
51421301	AK51421301 Out of stock	Height Adjuster	£12.64 £10.53
51421630	AK514216 Out of stock	Use Ak514216	£2.68 £2.23
51422030	AK514220 Out of stock	Use Ak514220	£4.74 £3.95
51425330	AK51425330 Out of stock	Bar/Rod	£16.85 £14.04
51439430	AK514394 Out of stock	Use Ak514394	£9.83 £8.19
51440230	AK51440230 Out of stock	Bracket	£7.38 £6.15
51440530	AK51440530 Out of stock	Bracket	£41.26 £34.38
52119030	AK52119030 Out of stock	Case	£18.22 £15.18
