AL-KO Concord T13-102 - 110918 - Transmission: from 10.2002

Name: AL-KO Concord T13-102 - 110918 - Transmission: from 10.2002
SKU: AK110918_3_from_10_2002-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Concord T13-102 - 110918 - Transmission: from 10.2002

Description

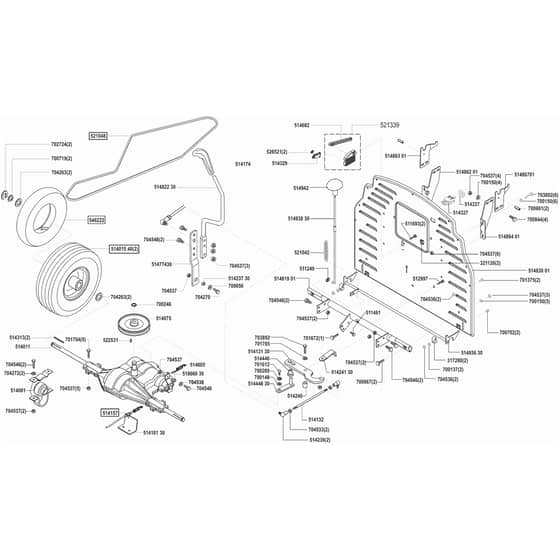

AL-KO Concord T13-102 - 110918 - Transmission - Parts Diagram

from 10.2002

Be the first to review this product

0 product questions

	Part No.	Details
317280	AK317280 Out of stock	Clip	£3.00 £2.50
511249	AK511249 Out of stock	Grip Fix Washer - 7mm	£1.25 £1.04
511461	AK511461 Out of stock	Screw	£1.14 £0.95
511693	AK468878 Out of stock	Use Ak468878	£0.71 £0.59
512997	AK512997 Out of stock	Screw	£2.02 £1.68
514011	AK514011 Out of stock	Gearbox	£971.98 £809.98
514075	AK514075 Out of stock	Pulley	£63.17 £52.64
514081	AK514081 Out of stock	Bearing Assembly	£32.99 £27.49
514132	AK51413230 Out of stock	Use Ak51413230	£5.60 £4.67
514157	AK514157 Out of stock	Trans Brake Cable	£33.40 £27.83
514174	AK514174 Out of stock	Knob	£9.14 £7.62
514239	AK514239 In stock	Ball Joint	£8.45 £7.04
514240	AK51424030 Out of stock	Use Ak51424030	£4.22 £3.52
514313	AK514313 Out of stock	Key	£1.22 £1.02
514327	AK514327 Out of stock	Pressure Switch - (Grey Type)	£21.82 £18.18
514329	AK514329 Out of stock	Switch	£15.67 £13.06
514337	AK514337 Out of stock	Cap	£4.76 £3.97
514446	AK51444630 Out of stock	Use Ak51444630	£3.32 £2.77
514605	AK514605 Out of stock	Return Spring	£4.39 £3.66
514682	AK493511 Out of stock	Use Ak493511	£4.03 £3.36
514942	AK514942 Out of stock	Button	£1.92 £1.60
521042	AK521042 Out of stock	Spring	£4.04 £3.37
521048	AK521048 Out of stock	Transmission Belt	£54.53 £45.44
521339	AK521339 Out of stock	Arm And Case Assy	£15.23 £12.69
522531	AK522531 Out of stock	Key	£2.45 £2.04
526521	AK526521 Out of stock	Push Fix 2.5mm	£0.73 £0.61
546222	AK468870 Out of stock	Use Ak468870	£47.60 £39.67
700137	AK700137 Out of stock	Washer M6	£0.88 £0.73
700150	AK700150 Out of stock	Spacer M8	£1.15 £0.96
700200	AK700200 Out of stock	Washer	£0.71 £0.59
700246	AK700246 Out of stock	Circlip	£1.24 £1.03
700656	AK705284 Out of stock	Use Ak705284	£3.53 £2.94
700661	AK700661 Out of stock	Sleeve	£0.71 £0.59
700702	AK700702 Out of stock	Screw M6x25	£0.88 £0.73
700719	AK700719 Out of stock	Washer 22mm	£1.58 £1.32
700844	AK704128 Out of stock	Use Ak704128	£0.71 £0.59
700967	AK700967 Out of stock	Screw	£1.24 £1.03
701375	AK701375 Out of stock	Screw	£0.73 £0.61
701612	AK701612 Out of stock	Screw	£2.11 £1.76
701672	AK701672 Out of stock	Screw M8x45	£1.49 £1.24
701704	AK701704 Out of stock	Screw M8x60	£1.33 £1.11
701765	AK700201 Out of stock	Washer M8	£0.73 £0.61
702724	AK702724 Out of stock	E-Clip	£0.88 £0.73
703892	AK703892 Out of stock	Screw	£0.73 £0.61
704263	AK705617 Out of stock	Use Ak705617	£0.88 £0.73
704270	AK704270 Out of stock	Screw M8x25	£0.88 £0.73
704272	AK704272 Out of stock	Washer 8mm	£0.73 £0.61
704533	AK704533 Out of stock	Nut	£0.71 £0.59
704536	AK704536 In stock	Nut M6	£0.88 £0.73
704537	AK704537 Out of stock	Lock Nut M8	£1.16 £0.97
704538	AK704538 Out of stock	Washer M8	£0.86 £0.72
704546	AK704546 Out of stock	Screw M8x20	£0.71 £0.59
51401540	AK457684 Out of stock	Use Ak47101840	£169.70 £141.42
51413130	AK51413130 Out of stock	Lever	£9.49 £7.91
51418130	AK51418130 Out of stock	Counter Roller	£2.83 £2.36
51423730	AK514237 Out of stock	Use Ak514237	£1.76 £1.47
51424130	AK51424130 Out of stock	Bracket	£11.69 £9.74
51444830	AK51444830 Out of stock	Gear Shift Lever	£8.44 £7.03
51477430	AK51477430 Out of stock	Plate	£8.78 £7.32
51481901	AK51481901 Out of stock	Stiffening Tube	£41.87 £34.89
51482230	AK51482230 Out of stock	Gear-Shift Lever	£202.76 £168.97
51483801	AK46151301 Out of stock	Use Ak46151301	£65.83 £54.86
51486201	AK51486201 Out of stock	Bearing Bracket Rh	£15.10 £12.58
51486301	AK51486301 Out of stock	Bearing Bracket Rh	£13.30 £11.08
51486401	AK51486401 Out of stock	Bearing Bracket	£14.92 £12.43
51486701	AK51486701 Out of stock	Bearing Bracket Lh	£11.77 £9.81
51493630	AK51493630 Out of stock	Box Clutch T102	£20.71 £17.26
51493830	AK46128830 Out of stock	Use Ak46128830	£14.92 £12.43
51866030	AK51866030 Out of stock	Sleeve	£1.40 £1.17
