827M - 2023 - 2T0090283/M23 - Mountfield Ride On Mower Blade Diagram

Description

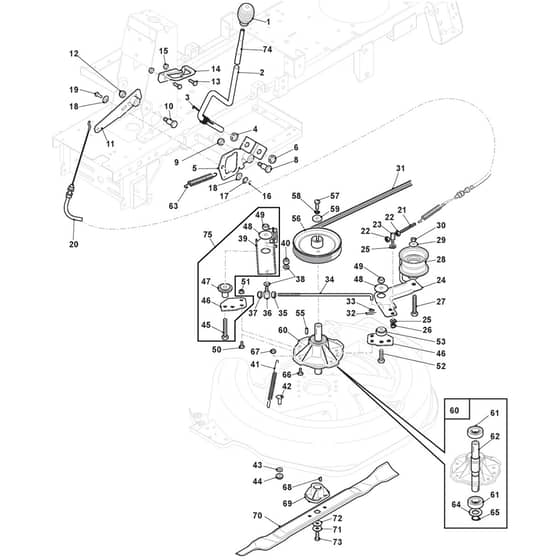

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2023

Model Type - MJ 66 4E

Art.N - 2T0090283/M23

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125394510/0 Out of stock	Knob	£4.02 £3.35
2	MO327315149/0 Out of stock	Lever	£16.68 £13.90
3	MO127430595/0 Out of stock	Spring	£4.96 £4.13
4	MO112521370/0 Out of stock	Washer	£1.48 £1.23
5	MO384317099/0 Out of stock	Lever	£15.41 £12.84
6	MO122020050/0 Out of stock	Ring	£1.48 £1.23
8	MO127510122/1 Out of stock	Bracket	£5.63 £4.69
9	MO112154210/0 In stock	Nut	£1.61 £1.34
11	MO384773577/0 Out of stock	Bracket	£13.12 £10.93
13	MO112815200/0 In stock	Screw	£1.48 £1.23
14	MO327734065/0 Out of stock	Sector	£4.97 £4.14
15	MO112292102/0 Out of stock	Nut	£1.61 £1.34
16	MO112436050/0 In stock	Plate	£1.74 £1.45
19	MO125510085/1 Out of stock	Pin	£1.48 £1.23
20	MO384004606/0 Out of stock	Blades Engagement Wire	£38.20 £31.83
21	MO127840058/2 Out of stock	Tie Rod	£11.95 £9.96
24	MO384307001/1 In stock	Tightener Lever	£15.79 £13.16
27	MO112691600/0 Out of stock	Screw	£1.74 £1.45
28	MO127604008/0 Out of stock	Pulley	£89.05 £74.21
29	MO112523060/0 In stock	Washer	£1.48 £1.23
31	MO135061428/0 In stock	Belt	£37.49 £31.24
32	MO124487995/0 In stock	Cotter Pin	£1.48 £1.23
34	MO127034085/0 Out of stock	Connecting Rod	£8.57 £7.14
35	MO112293200/0 In stock	Nut	£1.48 £1.23
36	MO127510126/0 Out of stock	Pin White Galvanized	£4.82 £4.02
36	MO125510168/0 Out of stock	Pin Black Galvanized	£4.28 £3.57
38	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
40	MO112155000/0 In stock	Nut	£1.48 £1.23
41	MO127430592/0 Out of stock	Brake Spring	£5.50 £4.58
42	MO9897-0820-16 Out of stock	Screw	£1.91 £1.59
43	MO112521350/0 In stock	Washer	£1.48 £1.23
44	MO112293201/0 In stock	Nut	£1.61 £1.34
45	MO112692395/2 Out of stock	Screw	£3.08 £2.57
46	MO327772191/0 Out of stock	Bracket	£5.60 £4.67
47	MO127047021/0 Out of stock	Bushing	£6.29 £5.24
48	MO112523090/0 Out of stock	Washer	£1.74 £1.45
49	MO112155020/0 Out of stock	Nut	£1.61 £1.34
50	MO112818700/0 In stock	Screw	£1.48 £1.23
52	MO112794400/0 Out of stock	Screw	£2.00 £1.67
53	MO127047017/0 In stock	Bushing	£4.96 £4.13
55	MO112139480/0 In stock	Feather	£1.61 £1.34
56	MO127604014/0 Out of stock	Pulley	£37.49 £31.24
57	MO112793102/0 In stock	Screw	£1.48 £1.23
58	MO112583500/0 Out of stock	Grower	£1.48 £1.23
59	MO125670007/0 Out of stock	Washer	£1.87 £1.56
60	MO384207251/0 Out of stock	Blade Shaft Support	£99.30 £82.75
61	MO119216047/0 In stock	Bearing	£15.00 £12.50
62	MO127023003/0 Out of stock	Shaft	£33.48 £27.90
63	MO125430259/0 Out of stock	Spring	£4.55 £3.79
64	MO325160501/1 Out of stock	Dust Cover Disc	£1.66 £1.38
65	MO112609260/0 Out of stock	Seeger	£1.74 £1.45
66	MO9959-0825-16 Out of stock	Screw	£1.66 £1.38
69	MO125463200/0 In stock	Blade Holder	£9.04 £7.53
70	MO184109505/0 In stock	Blade Winged	£39.47 £32.89
72	MO112523080/0 In stock	Washer	£1.48 £1.23
73	MO112735694/0 In stock	Screw	£1.87 £1.56
74	MO327315151/1 Out of stock	Lever	£20.36 £16.97
75	MO384220506/1 Out of stock	Blade Brake Kit	£31.82 £26.52
