827M - 2023 - 2T0090283/M23 - Mountfield Ride On Mower B&S Engine Diagram

827M - 2023 - 2T0090283/M23 - Mountfield Ride On Mower B&S Engine Diagram
827M - 2023 - 2T0090283/M23 - Mountfield Ride On Mower B&S Engine Diagram

Description

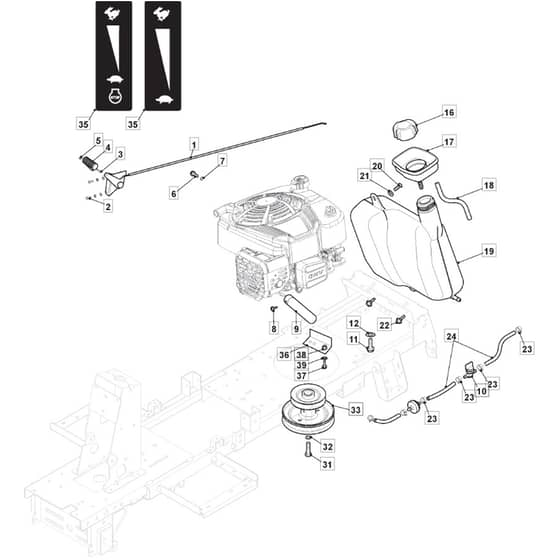

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2023

Model Type - MJ 66 4E

Art.N - 2T0090283/M23

Ref. Img. Part No. Details
  1 Throttle Cable
Throttle Cable
MO184000256/0 Out of stock
Throttle Cable
£20.88 £17.40

  2 Screw
Screw
MO125943012/0 Out of stock
Screw
£1.48 £1.23

  3 Screw
Screw
MO112726388/0 Out of stock
Screw
£1.48 £1.23

  4 Knob
Knob
MO125394501/0 Out of stock
Knob
£1.48 £1.23

  5 Nut
Nut
MO112290800/0 Out of stock
Nut
£1.48 £1.23

  6 Screw
Screw
MO112735599/0 Out of stock
Screw
£1.48 £1.23

  7 Washer
Washer
MO112540040/0 Out of stock
Washer
£1.34 £1.12

  8 Screw
Screw
MO112735110/0 Out of stock
Screw
£1.48 £1.23

  9 Exhaust Pipe
Exhaust Pipe
MO118738252/0 Out of stock
Exhaust Pipe
£12.85 £10.71

  10 Shut Out Valve
Shut Out Valve
MO118566119/0 Out of stock
Shut Out Valve
£13.93 £11.61

  11 Screw
Screw
MO112735108/1 In stock
Screw
£2.00 £1.67

  12 Washer
Washer
MO112540070/0 Out of stock
Washer
£1.48 £1.23

  16 Fuel Cap
Fuel Cap
MO127790000/1 Out of stock
Fuel Cap
£6.30 £5.25

  17 Tank Protection
Tank Protection
MO327600180/0 Out of stock
Tank Protection
£3.82 £3.18

  18 Fuel Discharge Pipe
Fuel Discharge Pipe
MO327869054/1 Out of stock
Fuel Discharge Pipe
£21.26 £17.72

  19 Fuel Tank
Fuel Tank
MO327733008/0 Out of stock
Fuel Tank
£52.20 £43.50

  20 Screw
Screw
MO112727801/0 Out of stock
Screw
£1.48 £1.23

  21 Washer
Washer
MO112523040/0 In stock
Washer
£1.48 £1.23

  22 Screw
Screw
MO125943010/0 In stock
Screw
£1.87 £1.56

  23 Fair Led
Fair Led
MO118375051/1 Out of stock
Fair Led
£1.74 £1.45

  24 Connecting Tube
Connecting Tube
MO325869035/1 Out of stock
Connecting Tube
£8.92 £7.43

  31 Screw
Screw
MO112735694/0 In stock
Screw
£1.87 £1.56

  32 Washer
Washer
MO112543000/0 Out of stock
Washer
£1.48 £1.23

  33 Pulley
Pulley
MO384601501/1 Out of stock
Pulley
£52.20 £43.50

  35 Label
Label
MO114366874/0 Out of stock
Label
£2.28 £1.90

  36 Bracket
Bracket
MO327772239/0 Out of stock
Bracket
£8.92 £7.43

  37 Screw
Screw
MO112791213/1 Out of stock
Screw
£1.48 £1.23

  38 Nut To 31-8-2014
Nut To 31-8-2014
MO112292102/0 In stock
Nut To 31-8-2014
£1.61 £1.34

  38 Nut From 01-9-2014
Nut From 01-9-2014
MO112154510/0 In stock
Nut From 01-9-2014
£1.48 £1.23

  39 Washer
Washer
MO9694-0001-00 Out of stock
Washer
£1.66 £1.38


Description

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2023

Model Type - MJ 66 4E

Art.N - 2T0090283/M23
