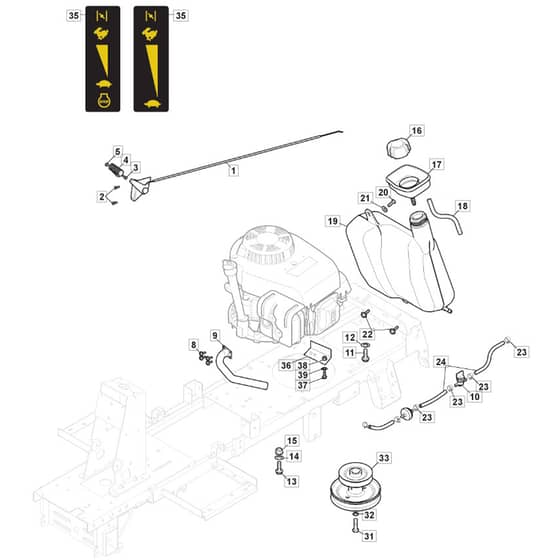

827M - 2016-2022 - 2T0050483/M16 - Mountfield Ride On Mower Engine Diagram

Description

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2016-2022

Model Type - MJ 66 E

Art.N - 2T0050483/M16

Engine Model - ST 250 ES

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184000257/0 Out of stock	Throttle Cable	£17.65 £14.71
3	MO112726388/0 Out of stock	Screw	£1.39 £1.16
4	MO125394501/0 Out of stock	Knob	£1.39 £1.16
5	MO112290800/0 Out of stock	Nut	£1.39 £1.16
8	MO112735111/0 Out of stock	Screw	£1.66 £1.38
9	MO118738261/2 Out of stock	Exhaust Pipe	£40.61 £33.84
10	MO118566119/0 Out of stock	Shut Out Valve	£13.22 £11.02
11	MO112735109/2 In stock	Screw	£2.34 £1.95
12	MO112540070/0 Out of stock	Washer	£1.39 £1.16
14	MO112521350/0 In stock	Washer	£1.39 £1.16
15	MO112154210/0 In stock	Nut	£1.54 £1.28
16	MO127790000/1 Out of stock	Fuel Cap	£6.30 £5.25
17	MO327600180/0 Out of stock	Tank Protection	£3.56 £2.97
18	MO327869054/1 Out of stock	Fuel Discharge Pipe	£20.44 £17.03
19	MO327733008/0 Out of stock	Fuel Tank	£49.54 £41.28
20	MO112727801/0 Out of stock	Screw	£1.39 £1.16
21	MO112523040/0 In stock	Washer	£1.39 £1.16
22	MO125943010/0 In stock	Screw	£1.78 £1.48
23	MO118375062/0 Out of stock	Fair Led	£1.66 £1.38
24	MO325869035/1 Out of stock	Connecting Tube	£8.51 £7.09
31	MO112736850/0 Out of stock	Screw	£2.17 £1.81
32	MO112543000/0 Out of stock	Washer	£1.39 £1.16
33	MO384601500/1 Out of stock	Pulley	£54.60 £45.50
35	MO114366874/0 Out of stock	Label	£2.17 £1.81
36	MO327772239/0 Out of stock	Bracket	£8.57 £7.14
37	MO112791213/1 Out of stock	Screw	£1.39 £1.16
38	MO112154510/0 In stock	Nut	£1.39 £1.16
39	MO9694-0001-00 Out of stock	Washer	£1.39 £1.16
