827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Steering Diagram

Name: 827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Steering Diagram
SKU: 827m_2t0045483_m13_steering-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

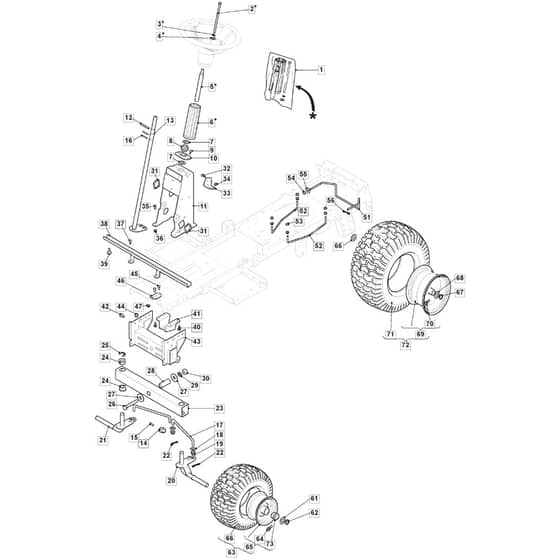

827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2013-2015

Model Type - MJ 66 E

Art.N - 2T0045483/M13

Engine Model - 5500 E.S. 196cc

Be the first to review this product

0 product questions

	Part No.	Details
3	MO112540260/0 Out of stock	Washer	£1.48 £1.23
4	MO112523070/0 Out of stock	Washer	£1.48 £1.23
6	MO384180219/0 Out of stock	Steering Wheel Support	£59.83 £49.86
7	MO125670023/0 Out of stock	Washer	£1.74 £1.45
8	MO122746617/0 Out of stock	Joint	£2.28 £1.90
9	MO112735122/0 Out of stock	Screw	£1.56 £1.30
10	MO327787091/0 Out of stock	Joint Support	£4.33 £3.61
11	MO384773575/0 Out of stock	Front Bracket Support	£38.20 £31.83
12	MO112620300/0 In stock	Spring Pin 6X50	£1.74 £1.45
13	MO384520051/0 Out of stock	Steering Column	£43.28 £36.07
14	MO327045074/0 Out of stock	Bushing	£2.54 £2.12
15	MO125943004/0 Out of stock	Screw	£1.74 £1.45
16	MO112620210/0 In stock	Elastic Pin	£1.48 £1.23
17	MO127034091/0 In stock	Rod	£8.10 £6.75
18	MO112521350/0 In stock	Washer	£1.48 £1.23
19	MO327045072/0 In stock	Bushing	£2.42 £2.02
20	MO384230415/0 Out of stock	Left Stub Axle for wheels 11"-15"	£63.66 £53.05
21	MO384230413/0 Out of stock	Right Stub Axle for wheels 11"-15"	£56.02 £46.68
22	MO124487995/0 Out of stock	Cotter Pin	£1.48 £1.23
23	MO327869061/0 Out of stock	Tube	£30.55 £25.46
24	MO127047019/0 Out of stock	Bushing	£3.61 £3.01
26	MO112794950/0 Out of stock	Screw	£3.74 £3.12
27	MO112523080/0 In stock	Washer	£1.48 £1.23
28	MO127160062/0 Out of stock	Spacer	£6.83 £5.69
29	MO112585100/0 Out of stock	Washer	£1.48 £1.23
30	MO112295200/0 Out of stock	Nut	£1.34 £1.12
33	MO327772199/0 Out of stock	Front Bracket	£4.72 £3.93
38	MO384783061/0 Out of stock	Footboard Support	£25.21 £21.01
39	MO127275000/0 Out of stock	Grommet	£2.94 £2.45
40	MO112735122/1 Out of stock	Screw	£1.56 £1.30
41	MO327772165/1 Out of stock	Bracket From 01-9-2013	£7.76 £6.47
42	MO112792611/0 Out of stock	Screw	£1.48 £1.23
44	MO112293201/0 In stock	Nut	£1.61 £1.34
45	MO112791200/1 Out of stock	Screw	£1.34 £1.12
46	MO327772209/0 Out of stock	Bracket	£3.95 £3.29
51	MO127294009/0 Out of stock	Belt Guide	£17.21 £14.34
52	MO127294010/1 Out of stock	Belt Guide	£19.15 £15.96
53	MO112292102/0 Out of stock	Nut	£1.61 £1.34
54	MO112154510/0 In stock	Nut	£1.48 £1.23
55	MO112521330/0 Out of stock	Washer	£1.48 £1.23
56	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
61	MO112521390/0 Out of stock	Washer	£1.74 £1.45
62	MO112000970/0 Out of stock	Ring (Benzing)	£1.48 £1.23
63	MO384680074/0 Out of stock	Front Wheel 13"	£89.11 £74.26
65	MO184044015/0 Out of stock	Front Wheel Rimm 13"	£50.93 £42.44
66	MO125590018/0 Out of stock	Tyre 13X5.00-6 P512 Wanda 13"	£46.87 £39.06
67	MO112001010/0 Out of stock	Benzing Ring	£1.74 £1.45
68	MO125670005/2 Out of stock	Washer	£3.89 £3.24
69	MO184044013/0 Out of stock	Rimm	£53.47 £44.56
70	MO125950000/0 Out of stock	Valve	£5.09 £4.24
71	MO127590068/0 Out of stock	Tyre 15X5.50-6 P512 Wanda 15"	£54.90 £45.75
72	MO384680076/0 Out of stock	Rear Wheel 15"	£115.85 £96.54
73	MO127122250/0 Out of stock	Bearing	£9.97 £8.31
