827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Engine Diagram

Description

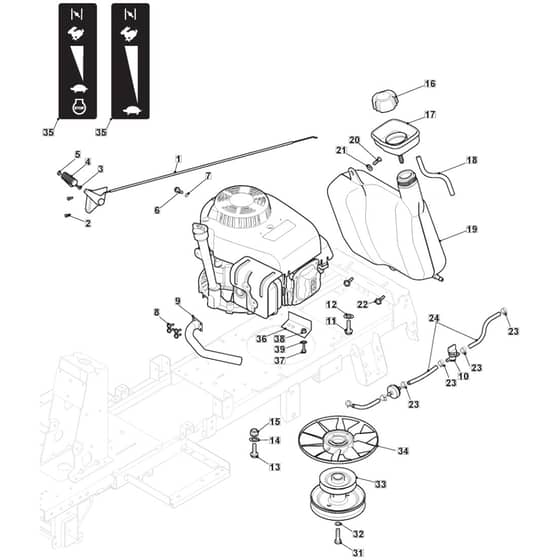

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2013-2015

Model Type - MJ 66 E

Art.N - 2T0045483/M13

Engine Model - 5500 E.S. 196cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184000256/0 Out of stock	Throttle Cable	£20.88 £17.40
2	MO125943012/0 Out of stock	Screw	£1.48 £1.23
3	MO112726388/0 Out of stock	Screw	£1.48 £1.23
4	MO125394501/0 Out of stock	Knob	£1.48 £1.23
5	MO112290800/0 Out of stock	Nut	£1.48 £1.23
6	MO112735599/0 Out of stock	Screw	£1.48 £1.23
7	MO112540040/0 Out of stock	Washer	£1.34 £1.12
8	MO112735110/0 Out of stock	Screw	£1.48 £1.23
9	MO118738261/2 Out of stock	Exhaust Pipe	£42.85 £35.71
10	MO118566119/0 Out of stock	Shut Out Valve	£13.93 £11.61
11	MO112735109/2 In stock	Screw From 01-9-2014	£2.28 £1.90
12	MO112540070/0 Out of stock	Washer	£1.48 £1.23
13	MO112691200/0 Out of stock	Screw	£1.61 £1.34
14	MO112521350/0 In stock	Washer	£1.48 £1.23
15	MO112154210/0 In stock	Nut	£1.61 £1.34
16	MO127790000/1 Out of stock	Fuel Cap	£6.30 £5.25
17	MO327600180/0 Out of stock	Tank Protection	£3.82 £3.18
18	MO327869054/1 Out of stock	Fuel Discharge Pipe	£21.26 £17.72
19	MO327733008/0 Out of stock	Fuel Tank	£52.20 £43.50
20	MO112727801/0 Out of stock	Screw	£1.48 £1.23
21	MO112523040/0 In stock	Washer	£1.48 £1.23
22	MO125943010/0 In stock	Screw	£1.87 £1.56
23	MO118375051/1 Out of stock	Fair Led	£1.74 £1.45
24	MO325869035/1 Out of stock	Connecting Tube	£8.92 £7.43
31	MO112736850/0 Out of stock	Screw	£2.28 £1.90
32	MO112543000/0 Out of stock	Washer	£1.48 £1.23
33	MO384601500/1 Out of stock	Pulley	£57.29 £47.74
34	MO327951200/0 Out of stock	Fan	£7.13 £5.94
35	MO114366874/0 Out of stock	Label From 01-9-2015	£2.28 £1.90
35	MO114366905/0 Out of stock	Label To 31-8-2015	£2.28 £1.90
36	MO327772239/0 Out of stock	Bracket	£8.92 £7.43
37	MO112791200/1 Out of stock	Screw	£1.34 £1.12
38	MO112154510/0 In stock	Nut From 01-9-2014	£1.48 £1.23
38	MO112292102/0 Out of stock	Nut To 31-8-2014	£1.61 £1.34
39	MO9694-0001-00 Out of stock	Washer	£1.66 £1.38
