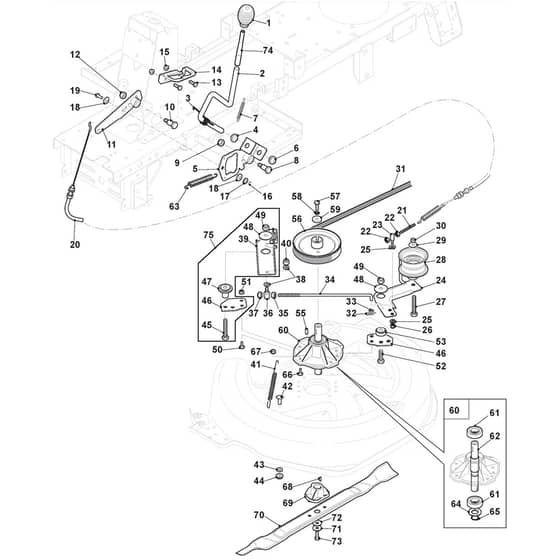

827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Blade Diagram

Name: 827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Blade Diagram
SKU: 827m_2t0045483_m13_blade-group
Price: 1.06 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

827M - 2013-2015 - 2T0045483/M13 - Mountfield Ride On Mower Blade Diagram

Description

Mountfield 827M Parts Diagram

Product Name - 827 M

Model Year - 2013-2015

Model Type - MJ 66 E

Art.N - 2T0045483/M13

Engine Model - 5500 E.S. 196cc

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125394510/0 Out of stock	Knob	£4.02 £3.35
2	MO327315149/0 Out of stock	Lever	£16.68 £13.90
3	MO127430595/0 Out of stock	Spring	£4.96 £4.13
4	MO112521370/0 Out of stock	Washer	£1.48 £1.23
5	MO384317099/0 Out of stock	Lever	£15.41 £12.84
6	MO122020050/0 Out of stock	Ring	£1.48 £1.23
7	MO125430208/1 Out of stock	Spring	£3.35 £2.79
9	MO112154210/0 In stock	Nut	£1.61 £1.34
10	MO127510122/1 Out of stock	Bracket	£5.63 £4.69
11	MO384773577/0 Out of stock	Bracket	£13.12 £10.93
13	MO112815200/0 In stock	Screw	£1.48 £1.23
14	MO327734065/0 Out of stock	Sector	£4.97 £4.14
15	MO112292102/0 Out of stock	Nut	£1.61 £1.34
16	MO112000930/0 In stock	Benzing Ring	£1.48 £1.23
19	MO125510085/1 Out of stock	Pin	£1.48 £1.23
20	MO384004606/0 Out of stock	Blades Engagement Wire	£38.20 £31.83
21	MO127840058/2 Out of stock	Tie Rod	£11.95 £9.96
23	MO127510126/0 Out of stock	Pin	£4.82 £4.02
24	MO384307001/1 In stock	Tightener Lever	£15.79 £13.16
25	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
27	MO112691600/0 Out of stock	Screw	£1.74 £1.45
29	MO112523060/0 In stock	Washer	£1.48 £1.23
35	MO112293200/0 In stock	Nut	£1.48 £1.23
40	MO112155000/0 In stock	Nut	£1.48 £1.23
43	MO112521350/0 In stock	Washer	£1.48 £1.23
44	MO112293201/0 In stock	Nut	£1.61 £1.34
45	MO112692395/2 Out of stock	Screw	£3.08 £2.57
48	MO112523090/0 Out of stock	Washer	£1.74 £1.45
49	MO112155020/0 Out of stock	Nut	£1.61 £1.34
52	MO112794400/0 Out of stock	Screw	£2.00 £1.67
55	MO112139480/0 In stock	Feather	£1.61 £1.34
57	MO112793102/0 In stock	Screw	£1.48 £1.23
58	MO112583500/0 Out of stock	Grower	£1.48 £1.23
65	MO112609260/0 Out of stock	Seeger	£1.74 £1.45
66	MO9959-0825-16 Out of stock	Screw From 01-9-2017	£1.66 £1.38
68	MO112139100/0 In stock	Key	£1.48 £1.23
71	MO112508128/0 In stock	Elastic Washer	£1.27 £1.06
72	MO112523080/0 In stock	Washer	£1.48 £1.23
73	MO112735694/0 In stock	Screw	£1.87 £1.56
75	MO384220506/1 Out of stock	Blade Brake Kit	£31.82 £26.52
