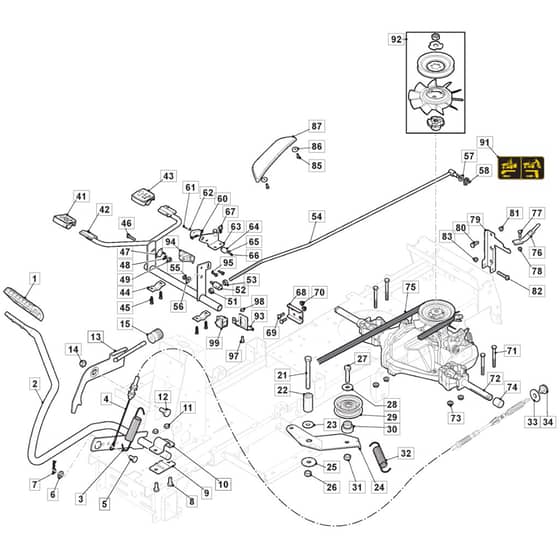

827H - 2013-2015 - 2T0065483/M13 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 827H Parts Diagram

Product Name - 827 H

Model Year - 2013-2015

Model Type - MJ 66 E Hydro

Art.N - 2T0065483/M13

Engine Model - 5500 E.S. 196cc

Be the first to review this product

0 product questions

	Part No.	Details
2	MO384503013/0 Out of stock	Pedal	£49.66 £41.38
4	MO384004604/0 Out of stock	Cable. Thread Engine Brake	£29.28 £24.40
5	MO127510120/1-1 Out of stock	Pin To S.N 22CA3RON021018	£4.15 £3.46
5	MO127510120/1 Out of stock	Pin From S.N 22CA3RON021019	£4.03 £3.36
6	MO112521350/0 In stock	Washer	£1.48 £1.23
7	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
9	MO325785350/0 Out of stock	Support	£1.66 £1.38
10	MO325547231/1 Out of stock	Plate	£4.20 £3.50
12	MO122524970/3 Out of stock	Pin	£1.61 £1.34
13	MO384002097/1 Out of stock	Brake Control Rod From S.N 22DA3RON017045	£13.84 £11.53
13	MO384002097/0 Out of stock	Brake Control Rod To S.N 22DA3RON017044	£13.75 £11.46
15	MO127395050/1 Out of stock	Knob	£2.81 £2.34
21	MO112691900/0 Out of stock	Screw	£1.74 £1.45
22	MO127160065/0 Out of stock	Spacer	£6.16 £5.13
23	MO122041980/0 Out of stock	Bushing	£1.48 £1.23
24	MO327315139/0 Out of stock	Tightener Lever	£5.99 £4.99
25	MO112523070/0 Out of stock	Washer	£1.48 £1.23
27	MO112691115/0 Out of stock	Screw	£1.48 £1.23
28	MO112523060/0 In stock	Washer	£1.48 £1.23
29	MO127604015/0 In stock	Pulley	£13.19 £10.99
30	MO127160064/0 Out of stock	Spacer	£4.82 £4.02
32	MO127430594/0 Out of stock	Spring	£5.35 £4.46
33	MO112521360/0 In stock	Washer	£1.48 £1.23
34	MO127510124/0 Out of stock	Pin	£4.02 £3.35
41	MO325110274/0 Out of stock	Clamp Cover Front	£5.60 £4.67
42	MO384503011/1 Out of stock	Drive Pedal	£44.56 £37.13
43	MO325110331/0 Out of stock	Clamp Cover Rear	£6.62 £5.52
44	MO327546015/2 Out of stock	Plate	£1.66 £1.38
45	MO112731350/0 Out of stock	Screw	£1.48 £1.23
47	MO127063022/0 Out of stock	Plastic Neutral Switch Cam F72 Hy.T.Torq	£2.41 £2.01
48	MO112521330/0 Out of stock	Washer	£1.48 £1.23
52	MO127510103/0 Out of stock	Pin	£4.02 £3.35
53	MO112293200/0 In stock	Nut	£1.48 £1.23
54	MO384002095/0 Out of stock	Rod	£25.21 £21.01
55	MO112523040/0 In stock	Washer	£1.48 £1.23
57	MO325670011/0 Out of stock	Antifriction Washer	£1.66 £1.38
58	MO112436050/0 In stock	Plate	£1.74 £1.45
60	MO119410609/1LC Out of stock	Microswitch	£25.85 £21.54
61	MO112735602/0 Out of stock	Screw	£1.48 £1.23
62	MO112581100/0 Out of stock	Grower	£1.27 £1.06
63	MO327543053/1 Out of stock	Backup Plate	£3.95 £3.29
64	MO327546019/0 Out of stock	Neutral Switch Fixing Plate	£1.40 £1.17
65	MO112540020/0 Out of stock	Washer	£1.48 £1.23
66	MO112290791/0 Out of stock	Nut	£1.48 £1.23
67	MO112735122/1 Out of stock	Screw	£1.56 £1.30
68	MO327772223/0 Out of stock	Bracket	£3.18 £2.65
69	MO112791213/1 Out of stock	Screw	£1.48 £1.23
71	MO112691600/0 Out of stock	Screw	£1.74 £1.45
72	MO118400980/0 Out of stock	Transmission Unit (Hydrogear T2-Ajbf-2X3C-16X1)	£861.17 £717.64
73	MO112154210/0 In stock	Nut	£1.61 £1.34
74	MO127160063/0 Out of stock	Spacer	£3.48 £2.90
75	MO135061429/0 Out of stock	Belt	£32.14 £26.78
76	MO327315137/0 Out of stock	Lever	£3.95 £3.29
77	MO112791011/0 Out of stock	Screw	£1.34 £1.12
78	MO112154510/0 In stock	Nut	£1.48 £1.23
79	MO327772187/0 Out of stock	Rear Bracket Support	£6.36 £5.30
80	MO112792611/0 Out of stock	Screw	£1.48 £1.23
82	MO112691400/0 Out of stock	Screw	£1.48 £1.23
83	MO112155000/0 In stock	Nut	£1.48 £1.23
85	MO112735110/0 Out of stock	Screw	£1.48 £1.23
86	MO112523030/0 Out of stock	Washer	£1.48 £1.23
87	MO327110507/0 Out of stock	Cover	£12.35 £10.29
91	MO114361451/0 Out of stock	Label	£2.94 £2.45
92	MO1139-2202-01 Out of stock	Fan Kit	£160.69 £133.91
93	MO327787107/0 Out of stock	Support	£7.90 £6.58
94	MO327063026/0 Out of stock	Cam	£3.56 £2.97
95	MO112735404/0 Out of stock	Screw	£1.48 £1.23
97	MO112791400/0 In stock	Screw	Was £1.34 £1.12 Special Price £0.89 £0.74
98	MO112292102/0 Out of stock	Nut	£1.61 £1.34
99	MO119410623/0 Out of stock	Micro Switch N.C.	£7.24 £6.03
