725M - 2009 - 2T0112483/UM9 - Mountfield Ride On Mower Frame Diagram

Description

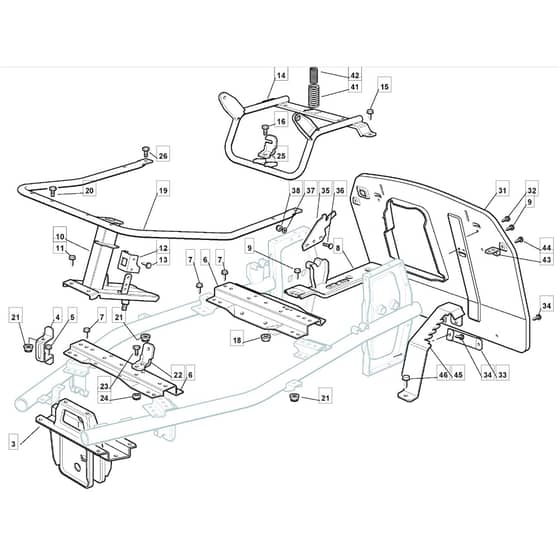

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2009

Model Type - EL 63

Art.N - 2T0112483/UM9

Be the first to review this product

0 product questions

	Part No.	Details
10	MO384783055/0 Out of stock	Steering Column Support From 01-9-2009	£86.57 £72.14
10	MO384783037/0 Out of stock	Steering Column Support To 31-8-2009	£63.66 £53.05
12	MO327772095/0 Out of stock	Micro Handbrake Stirrup Support	£1.66 £1.38
13	MO112735105/0 Out of stock	Screw	£1.48 £1.23
16	MO112793701/0 Out of stock	Screw	£1.48 £1.23
18	MO112293201/0 In stock	Nut	£1.61 £1.34
20	MO112792099/0 In stock	Screw	£1.34 £1.12
23	MO112791011/0 Out of stock	Screw	£1.34 £1.12
24	MO112154510/0 In stock	Nut	£1.48 £1.23
26	MO112791500/0 Out of stock	Screw	£1.48 £1.23
31	MO384545061/0 Out of stock	Rear Plate	£66.20 £55.17
36	MO112818690/0 Out of stock	Screw	£1.70 £1.42
37	MO112521350/0 In stock	Washer	£1.48 £1.23
38	MO112155000/0 In stock	Nut	£1.48 £1.23
41	MO127430567/0 Out of stock	Spring	£3.74 £3.12
42	MO127430569/2 Out of stock	Spring	£2.68 £2.23
44	MO112729600/0 Out of stock	Screw	£1.48 £1.23
46	MO112735122/0 Out of stock	Use 112735122.0	£1.56 £1.30
