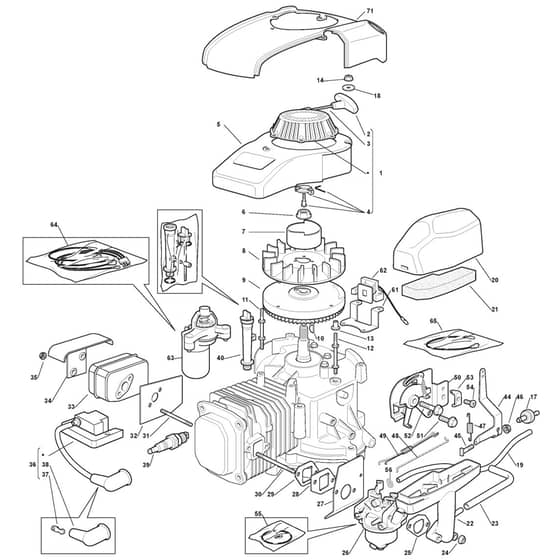

725M - 2008 - 299971533/M08 - Mountfield Ride On Mower R200ES Engine Diagram

Name: 725M - 2008 - 299971533/M08 - Mountfield Ride On Mower R200ES Engine Diagram
SKU: 725m_299971533_m08_r200es_engine-group
Price: 1.18 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2008 - 299971533/M08 - Mountfield Ride On Mower R200ES Engine Diagram

Description

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2008

Model Type - EL 63

Art.N - 299971533/M08

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550161/2 Out of stock	Starter Assy	£62.94 £52.45
2	MO118550768/0 Out of stock	Starter Handle	£11.38 £9.48
3	MO118550053/0 In stock	Starter Cord	Was £2.15 £1.79 Special Price £1.42 £1.18
4	MO118550004/1 In stock	Starter Pawl Set	£5.10 £4.25
5	MO118550162/0 Out of stock	Cover	£28.12 £23.43
7	MO118550198/0 In stock	Starter Cup	£6.02 £5.02
8	MO118550167/0 Out of stock	Flywheel Fan	£11.78 £9.82
9	MO118550169/0 Out of stock	Flywheel Ass.Y	£58.92 £49.10
11	MO118550171/0 Out of stock	Screw	£6.23 £5.19
17	MO118550166/0 Out of stock	Fuel Filter	£3.40 £2.83
19	MO118550340/0 In stock	Fuel Tube	£7.50 £6.25
20	MO118550160/0 Out of stock	Air Cleaner Cover	£12.32 £10.27
21	MO118550187/0 In stock	Air Filter	£4.96 £4.13
22	MO118550186/0 Out of stock	Air Filer Base	£13.52 £11.27
27	MO118550124/0 Out of stock	Heat Block	£6.65 £5.54
28	MO118550076/0 Out of stock	Intake Manifold	£7.84 £6.53
30	MO118550188/0 Out of stock	Screw	£5.63 £4.69
31	MO118550069/0 Out of stock	Double-Screw Bolt	£13.39 £11.16
39	9408 In stock	Spark Plug (Rn9Yc)	£3.72 £3.10
40	MO118550063/0 Out of stock	Oil Dipstick & Oil Fill Tube Assy	£21.02 £17.52
46	MO118550050/0 Out of stock	Nut	£5.27 £4.39
47	MO118550087/0 Out of stock	Spring	£5.35 £4.46
49	MO118550089/0 Out of stock	Governor Link.Spring Assy	£4.94 £4.12
50	MO118550092/1 Out of stock	Remote Control Assy	£16.33 £13.61
54	MO118550023/0 Out of stock	Screw	£1.87 £1.56
55	MO118550389/0 In stock	Gasket Carburettor Assy	£9.17 £7.64
62	MO118550174/0 Out of stock	Alternator	£36.16 £30.13
