725M - 2005 - 13-2657-15 - Mountfield Ride On Mower Deck Lifting Diagram

Description

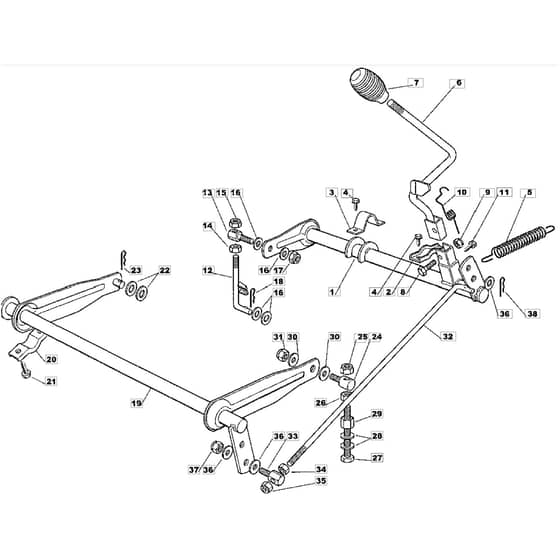

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2005

Model Type - EL 63

Art.N - 13-2657-15

Be the first to review this product

0 product questions

	Part No.	Details
3	MO325547037/2 Out of stock	Clamp	£3.18 £2.65
5	MO127430568/0 Out of stock	Spring	£4.85 £4.04
7	MO125394510/0 Out of stock	Knob	£4.02 £3.35
8	MO112674700/0 Out of stock	Screw	£1.48 £1.23
9	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
11	MO112729600/0 Out of stock	Screw	£1.48 £1.23
11	MO112729601/1 Out of stock	Screw	£1.48 £1.23
12	MO384002073/0 Out of stock	Rod	£18.97 £15.81
13	MO125510056/1 Out of stock	Pivot Bolt	£5.09 £4.24
20	MO327546015/2 Out of stock	Clamp	£1.66 £1.38
21	MO112731350/0 Out of stock	Screw	£1.48 £1.23
24	MO125510007/2 Out of stock	Pivot Bolt	£5.35 £4.46
26	MO112295200/0 Out of stock	Nut	£1.34 £1.12
27	MO112794970/0 Out of stock	Screw	£3.22 £2.68
28	MO112521360/0 In stock	Washer	£1.48 £1.23
29	MO112154250/0 Out of stock	Nut	£4.55 £3.79
30	MO325670008/1 Out of stock	Washer	£1.66 £1.38
31	MO112156602/0 In stock	Lock Nut	£1.34 £1.12
32	MO127034065/0 Out of stock	Rod	£62.57 £52.14
33	MO125510040/2 Out of stock	Pivot Bolt	£5.50 £4.58
34	MO112293200/0 In stock	Nut	£1.48 £1.23
36	MO325670011/0 Out of stock	Washer	£1.66 £1.38
37	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
38	MO124487997/0 Out of stock	Hair Pin	£1.48 £1.23
