725M - 2005 - 13-2657-15 - Mountfield Ride On Mower Controls Diagram

Description

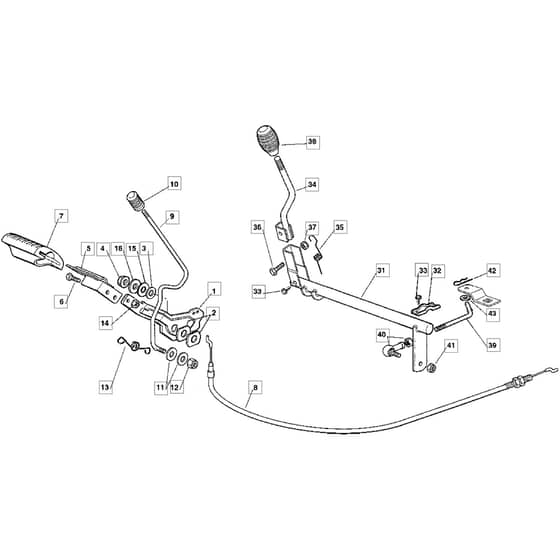

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2005

Model Type - EL 63

Art.N - 13-2657-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO327500051/1 Out of stock	Pedal	£5.72 £4.77
2	MO327670054/0 Out of stock	Washer	£12.95 £10.79
3	MO112521350/0 In stock	Washer	£1.48 £1.23
3	MO9699-0090-02 Out of stock	Washer	£1.91 £1.59
5	MO384503005/0 Out of stock	Pedal Upper	£13.87 £11.56
6	MO112791200/1 Out of stock	Screw	£1.34 £1.12
7	MO125110269/0 Out of stock	Clamp Cover	£3.48 £2.90
8	MO384207105/0 In stock	Cable	£18.46 £15.38
10	MO127395050/1 Out of stock	Knob	£2.81 £2.34
12	MO112154210/0 In stock	Nut	£1.61 £1.34
12	MO112293201/0 In stock	Nut	£1.61 £1.34
13	MO127430564/0 Out of stock	Sring	£1.87 £1.56
14	MO112292102/0 In stock	Nut	£1.61 £1.34
15	MO327670055/0 Out of stock	Antifriction Washer	£1.66 £1.38
16	MO112523060/0 In stock	Washer	£1.48 £1.23
31	MO384001021/0 Out of stock	Axle	£24.19 £20.16
32	MO327546015/2 Out of stock	Plate	£1.66 £1.38
33	MO112729601/1 Out of stock	Screw	£1.48 £1.23
33	MO112729600/0 Out of stock	Screw	£1.48 £1.23
36	MO112674700/0 Out of stock	Screw	£1.48 £1.23
37	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
38	MO125394510/0 Out of stock	Knob	£4.02 £3.35
40	MO122746601/0 Out of stock	Joint	£18.20 £15.17
40	MO122746610/0 Out of stock	Ball Joint	£20.09 £16.74
41	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
42	MO124487997/0 Out of stock	Cotter Pin	£1.48 £1.23
43	MO325670011/0 Out of stock	Anti-Friction Washer 8.2 X 19 X 0.8	£1.66 £1.38
