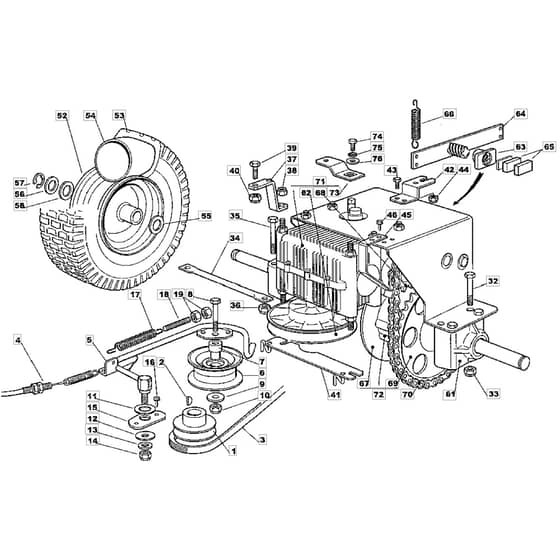

725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Transmission Diagram

Name: 725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Transmission Diagram
SKU: 725m_13_2657_32_transmission-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2002

Model Type - EL 63

Art.N - 13-2657-32

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127604006/2 Out of stock	Pulley	£57.29 £47.74
2	MO112139100/0 In stock	Key	£1.48 £1.23
3	MO135061406/0 In stock	Drive Belt	£41.51 £34.59
4	MO384207103/2 Out of stock	Wire	£16.68 £13.90
5	MO384317077/0 Out of stock	Hebel	£24.19 £20.16
6	MO127604007/0 Out of stock	Pulley	£48.20 £40.17
7	MO127047007/0 Out of stock	Bushing	£2.42 £2.02
8	MO112691200/0 Out of stock	Screw	£1.61 £1.34
9	MO112523070/0 Out of stock	Washer	£1.48 £1.23
11	MO327670054/0 Out of stock	Washer	£12.95 £10.79
12	MO325670011/0 Out of stock	Washer	£1.66 £1.38
13	MO112523060/0 In stock	Washer	£1.48 £1.23
17	MO125430208/1 Out of stock	Spring	£3.35 £2.79
18	MO125840005/0 Out of stock	Tie Rod	£2.81 £2.34
19	MO112293200/0 In stock	Nut	£1.48 £1.23
32	MO112692050/0 In stock	Screw	£1.74 £1.45
33	MO112293201/0 In stock	Nut	£1.61 £1.34
35	MO125943001/1 Out of stock	Screw	£1.87 £1.56
39	MO9997-0816-16 Out of stock	Screw	£1.66 £1.38
40	MO112155000/0 In stock	Lock Nut	£1.48 £1.23
41	MO384317101/0 Out of stock	Belt Guide	£28.01 £23.34
43	MO112791200/1 Out of stock	Screw	£1.34 £1.12
44	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
45	MO384394830/0 Out of stock	Spring	£5.09 £4.24
52	MO184044001/0 Out of stock	Rim-Rear	£71.29 £59.41
53	MO127590059/0 Out of stock	Tire	£50.88 £42.40
54	MO127590057/0 Out of stock	Inner Tube	£15.67 £13.06
55	MO112520010/0 Out of stock	Washer	£2.15 £1.79
56	MO125670005/2 Out of stock	Washer	£3.89 £3.24
57	MO112001000/0 Out of stock	Circlip	£1.74 £1.45
58	MO112521410/0 Out of stock	Washer	£1.74 £1.45
61	MO119700061/0 Out of stock	Bushing	£21.88 £18.23
62	MO119700050/0 Out of stock	Pulley	£20.89 £17.41
65	MO119700052/0 Out of stock	Brake Pad	£41.54 £34.62
66	MO119700048/0 Out of stock	Spring	£3.35 £2.79
67	MO119700054/0 Out of stock	Brake Disc	£36.06 £30.05
68	MO119700049/0 Out of stock	Pinion	£10.72 £8.93
69	MO119700055/0 Out of stock	Sprocket	£20.48 £17.07
70	MO119700047/0 Out of stock	Chain	£57.58 £47.98
72	MO118400971/1 Out of stock	Differential Pos 67. 69 incl.	£328.07 £273.39
76	MO322680009/0 Out of stock	Washer	£1.52 £1.27
