725M - 2002 - 13-2657-12 - Mountfield Ride On Mower Body Diagram

Name: 725M - 2002 - 13-2657-12 - Mountfield Ride On Mower Body Diagram
SKU: 725m_13_2657_12_body-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2002 - 13-2657-12 - Mountfield Ride On Mower Body Diagram

Description

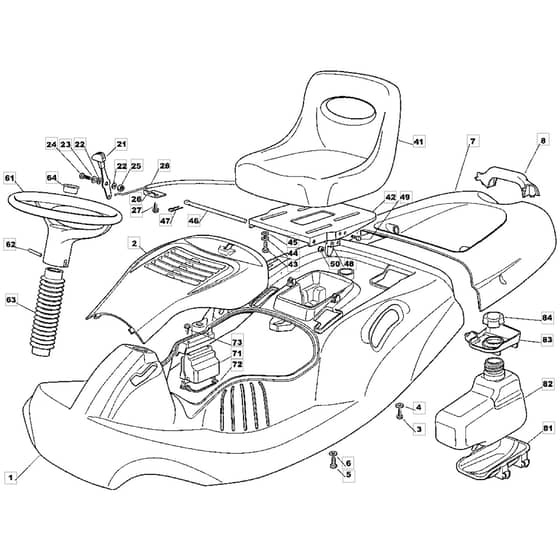

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2002

Model Type - EL 63

Art.N - 13-2657-12

Be the first to review this product

0 product questions

	Part No.	Details
3	MO112735410/0 Out of stock	Screw	£1.48 £1.23
5	MO112735402/0 In stock	Screw	£1.48 £1.23
6	MO112521360/0 In stock	Washer	£1.48 £1.23
7	MO327110357/1 Out of stock	Grass Catcher Cover-Red	£68.75 £57.29
8	MO127394000/0 Out of stock	Handle	£3.35 £2.79
21	MO381007280/2 Out of stock	Throttle Lever	£3.18 £2.65
22	MO112523040/0 In stock	Washer	£1.48 £1.23
23	MO112530060/0 Out of stock	Washer	£1.34 £1.12
24	MO112791500/0 Out of stock	Screw	£1.48 £1.23
25	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
26	MO322981467/0 Out of stock	Plate	£1.66 £1.38
28	MO184000252/0 Out of stock	Throttle Cable	£15.41 £12.84
43	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
44	MO112583500/0 Out of stock	Washer	£1.48 £1.23
45	MO112523060/0 In stock	Washer	£1.48 £1.23
46	MO127864052/1 Out of stock	Pin	£6.29 £5.24
47	MO124487997/0 Out of stock	Hair Pin	£1.48 £1.23
48	MO327063021/1 Out of stock	Cam	£7.46 £6.22
49	MO112789100/0 Out of stock	Screw	£1.48 £1.23
50	MO112154330/0 Out of stock	Nut	£1.48 £1.23
62	MO112620305/0 Out of stock	Pin	£1.74 £1.45
63	MO127600114/1 Out of stock	Guard	£8.44 £7.03
64	MO325120230/0 Out of stock	Cap	£3.06 £2.55
71	MO127600119/0 Out of stock	Guard	£3.35 £2.79
72	MO127600118/0 Out of stock	Guard	£2.54 £2.12
73	MO112727810/0 Out of stock	Screw	£1.48 £1.23
82	MO127733002/1 Out of stock	Tank	£30.80 £25.67
83	MO127600113/0 Out of stock	Guard	£1.87 £1.56
84	MO127790000/1 Out of stock	Tank Cap	£6.30 £5.25
