Description
Replacement part suitable for the following makes & models;
Ariens (Height Adjuster)
Emperor 30" - 925002, 925003, 925004, 925005, 925006, 925007, 925011, 925012, 925013
Emperor 38" - 925008, 925009
LM21 - 911005, 911008
LM21C - 911012
LM21S - 911006, 911009, 911010
LM21SC - 911011, 911013
LM21SE - 911007
Cub Cadet
HDS 3185, HDS 3186, HDS 3200, HDS 3235
MTD
580 A, Deluxe 5 LD, Deluxe LD, E 350, E 400, Gartentiller 3, Gartentiller 3 N, Gartentiller 5, IB 120, T 035, T/430
Snapper (Chain Case)
25069T 6hp - 80098
250815B - 80022
250815BE - 80023
25659BE 6.5hp - 80101
26069T 6hp - 80102
28108BE 10hp - 80099
281123BV 11hp - 7800102
2811523BV 11.5hp - 7084940, 7800647
2811524BV 11.5hp - 7800784
2812523BVE 12.5hp - 7085622, 7800104, 7800649
2812524BVE 12.5hp - 7800785
2813523BVE 13.5hp - 7085624
3011523BV 11.5hp - 7084941, 7800103, 7800648
3012523BVE 12.5hp - 7085623, 7800105, 7800650
3013523BVE 13.5hp - 7085625, 7800697
3014524BVE 14.5hp - 7800786
33147KE 14hp - 80027
331523KVE 15hp - 7084879, 7800106
331723BVE 17hp - 7084954, 7800107
3317523BVE 17.5hp - 7800254, 7800652
3317524BVE 17.5hp - 7800787
E2512523BVE 12.5hp - 7084651, 7800116, 7800117, 7800139, 7800499, 7800500, 7800653, 7800657, 7800658, 7805626
E2813523BVE 13.5hp - 7085686, 7800118, 7800501, 7800655, 7800659
E2814523BVE 14.5hp - 7800790
E331523KVE 15hp - 7084888, 7800119, 7800502, 7800656, 7800660
E3317523BVE 17.5hp - 7800718
LT12D331B 12hp - 80083
LT12D331TV 12hp - 80081
LT12D411B 12hp - 80084
LT12D411TV 12hp - 80082
YT16D334K 16hp - 80089
YT16D414K 16hp - 80090
YT16D484K 16hp - 80091
Yard-Man
DT 550, FT 350, YM 400 E
Note! If you're not sure this is right, please contact the sales office with your model numbers
Product Specifications
| Unit of Sale | 1 |
|---|---|
| Lead Time | Please Contact us for availability |

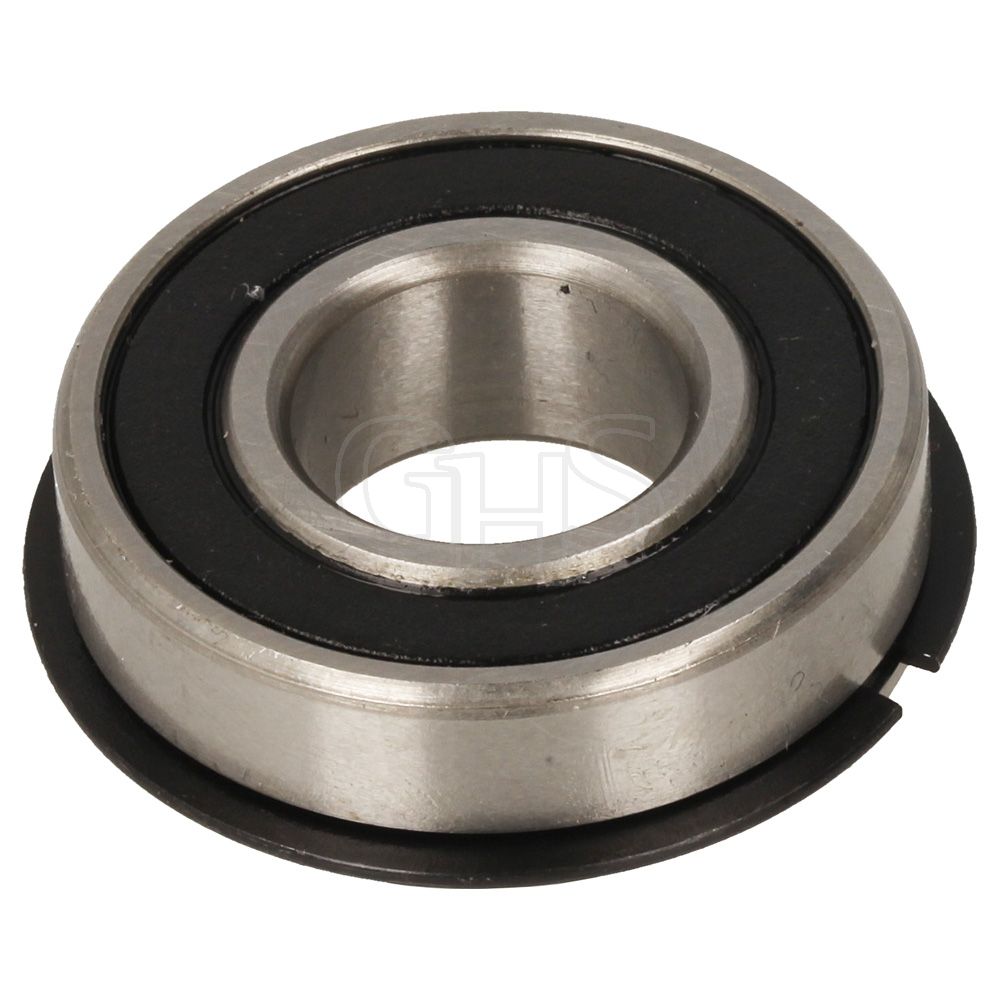

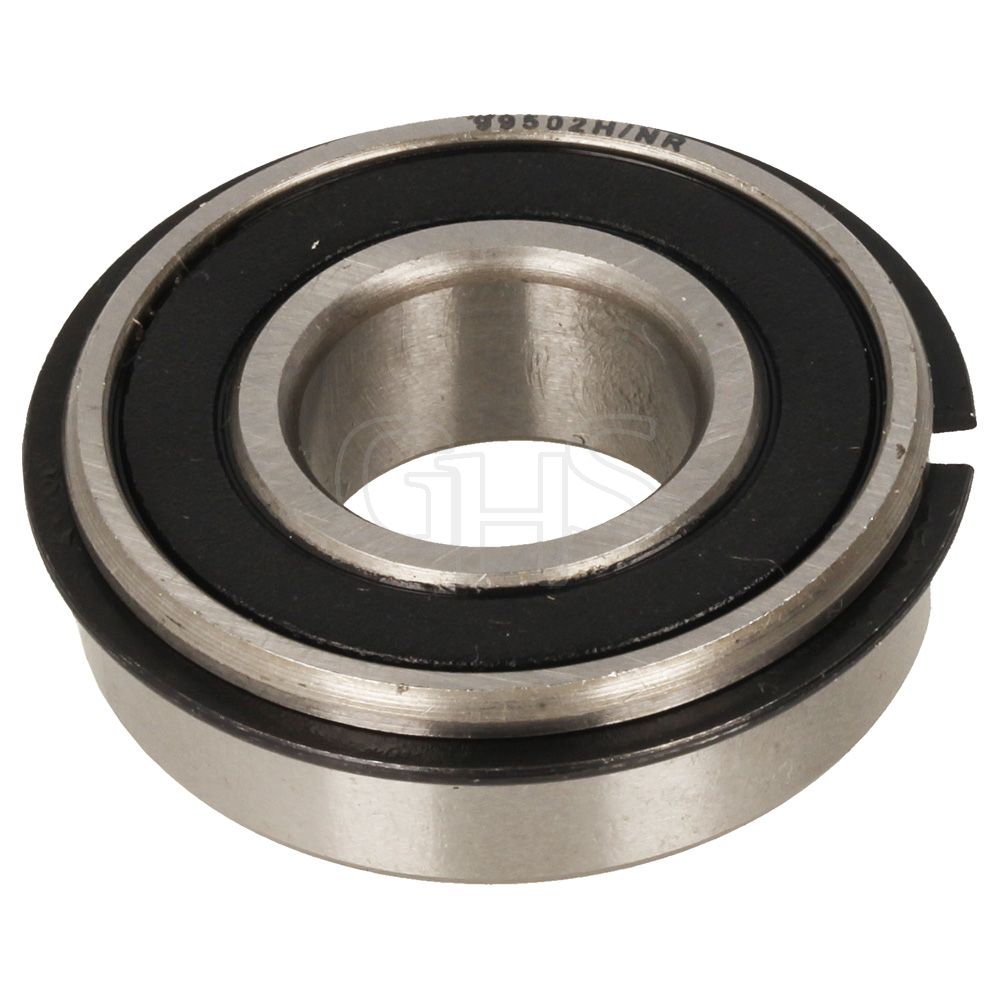

| Size | Approx - Height 11mm ID 15.88mm OD 34.93mm |
| Manufacturer | WAR TEC |
| Fits Brands | Ariens, Dixon, Gravely, MTD, Murray, Snapper |
| Part Type | Non-Genuine Part |
| Cross References | 05408900, 05415100, 05416200, 5028, 539125206, 036778, 741-0155, 6203, 10756, 1-0756, 7010756, 7010756YP, 79339 |
