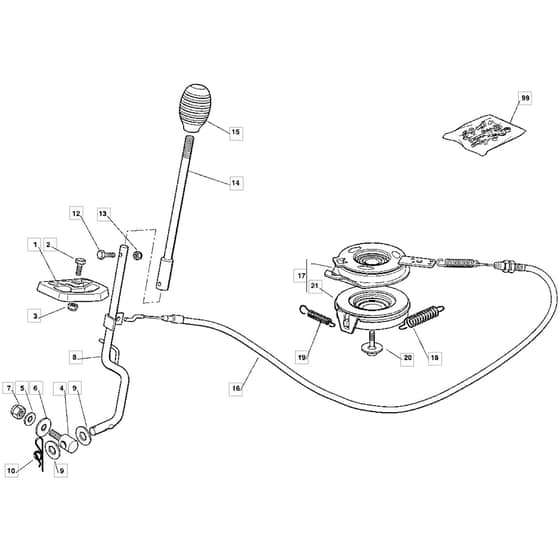

625M - 2004 - 13-2659-14 - Mountfield Ride On Mower Clutch Diagram

625M - 2004 - 13-2659-14 - Mountfield Ride On Mower Clutch Diagram
625M - 2004 - 13-2659-14 - Mountfield Ride On Mower Clutch Diagram

Description

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2004

Model Type - EL 63

Art.N - 13-2659-14

Ref. Img. Part No. Details
  1 Gliding Shoe
Gliding Shoe
MO127487001/0 Out of stock
Gliding Shoe
£1.61 £1.34

  2 Screw
Screw
MO112791200/1 Out of stock
Screw
£1.34 £1.12

  3 Lock Nut
Lock Nut
MO112154510/0 In stock
Lock Nut
£1.48 £1.23

  4 Pin
Pin
MO127510107/0 Out of stock
Pin
£5.22 £4.35

  5 Washer
Washer
MO325670011/0 Out of stock
Washer
£1.66 £1.38

  6 Washer
Washer
MO322672152/0 Out of stock
Washer
£1.52 £1.27

  7 Lock Nut
Lock Nut
MO112155000/0 In stock
Lock Nut
£1.48 £1.23

  9 Thrust Easher
Thrust Easher
MO321660100/0 Out of stock
Thrust Easher
£1.91 £1.59

  10 Elastic Pin
Elastic Pin
MO9598-0002-02 Out of stock
Elastic Pin
£1.66 £1.38

  12 Screw
Screw
MO112789020/0 Out of stock
Screw
£1.61 £1.34

  13 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.48 £1.23

  14 Engagement Lever-Upper
Engagement Lever-Upper
MO184317079/0 Out of stock
Engagement Lever-Upper
£17.57 £14.64

  15 Knob
Knob
MO125394510/0 Out of stock
Knob
£4.02 £3.35

  16 Wire
Wire
MO384207104/1 Out of stock
Wire
£30.55 £25.46

  17 Mechanical Clutch Ass.Y Pos 21 incl.
Mechanical Clutch Ass.Y Pos 21 incl.
MO118399065/1 Out of stock
Mechanical Clutch Ass.Y Pos 21 incl.
£247.73 £206.44

  18 Spring
Spring
MO127430579/0 Out of stock
Spring
£12.23 £10.19

  19 Spring
Spring
MO122450110/0 In stock
Spring
£7.09 £5.91

  20 Screw
Screw
MO112735460/0 Out of stock
Screw
£8.83 £7.36

  21 Mec.Clutch-Lower Part
Mec.Clutch-Lower Part
MO118399066/1 Out of stock
Mec.Clutch-Lower Part
£199.52 £166.27


Description

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2004

Model Type - EL 63

Art.N - 13-2659-14
