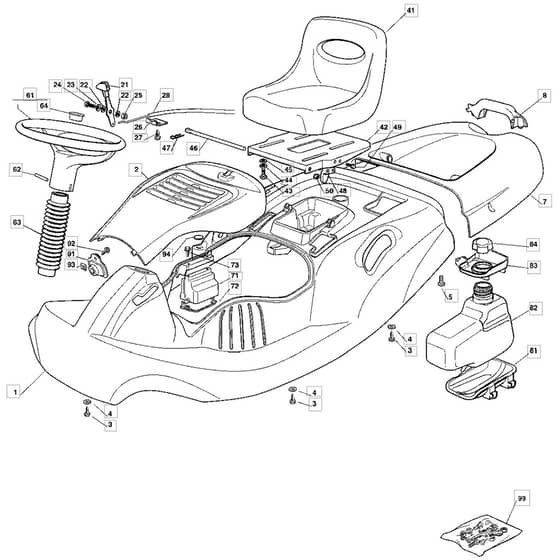

625M - 2004 - 13-2659-14 - Mountfield Ride On Mower Body Diagram

Name: 625M - 2004 - 13-2659-14 - Mountfield Ride On Mower Body Diagram
SKU: 625m_13_2659_14_body-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

625M - 2004 - 13-2659-14 - Mountfield Ride On Mower Body Diagram

Description

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2004

Model Type - EL 63

Art.N - 13-2659-14

Be the first to review this product

0 product questions

	Part No.	Details
1	MO327110378/1 Out of stock	Wheels Cover Red	£190.46 £158.72
2	MO127110374/0 Out of stock	Engine Cover	£46.99 £39.16
3	MO112735410/0 Out of stock	Screw	£1.39 £1.16
5	MO112735402/0 In stock	Screw	£1.39 £1.16
7	MO327110357/1 Out of stock	Grass Catcher Cover-Red	£64.76 £53.97
8	MO127394000/0 Out of stock	Handle	£14.20 £11.83
21	MO381007280/2 Out of stock	Throttle Lever	£2.92 £2.43
22	MO112523040/0 In stock	Washer	£1.39 £1.16
23	MO112530060/0 Out of stock	Washer	£1.28 £1.07
24	MO112791500/0 Out of stock	Screw	£1.39 £1.16
25	MO112154510/0 In stock	Lock Nut	£1.39 £1.16
26	MO322981467/0 Out of stock	Plate	£1.39 £1.16
28	MO184000252/0 Out of stock	Throttle Cable	£14.74 £12.28
43	MO9997-0820-16 Out of stock	Screw	£1.28 £1.07
44	MO112583500/0 Out of stock	Washer	£1.39 £1.16
45	MO112523060/0 In stock	Washer	£1.39 £1.16
46	MO127864052/1 Out of stock	Pin	£5.98 £4.98
47	MO124487997/0 Out of stock	Hair Pin	£1.39 £1.16
48	MO327063021/1 Out of stock	Cam	£7.08 £5.90
49	MO112789100/0 Out of stock	Screw	£1.39 £1.16
50	MO112154330/0 Out of stock	Nut	£1.39 £1.16
62	MO112620305/0 Out of stock	Pin	£1.66 £1.38
63	MO127600114/1 Out of stock	Guard	£147.49 £122.91
64	MO325120230/0 Out of stock	Cap	£2.80 £2.33
71	MO127600119/0 Out of stock	Guard	£3.17 £2.64
72	MO127600118/0 Out of stock	Guard	£2.54 £2.12
73	MO112727810/0 Out of stock	Screw	£1.39 £1.16
82	MO127733002/1 Out of stock	Tank	£154.46 £128.72
83	MO127600113/0 Out of stock	Guard	£1.78 £1.48
84	MO127790000/1 Out of stock	Tank Cap	£6.30 £5.25
91	MO327790010/1 Out of stock	Cap	£9.02 £7.52
92	MO112735598/0 Out of stock	Screw	£1.78 £1.48
93	MO112437503/0 Out of stock	Lock Plate	£1.78 £1.48
