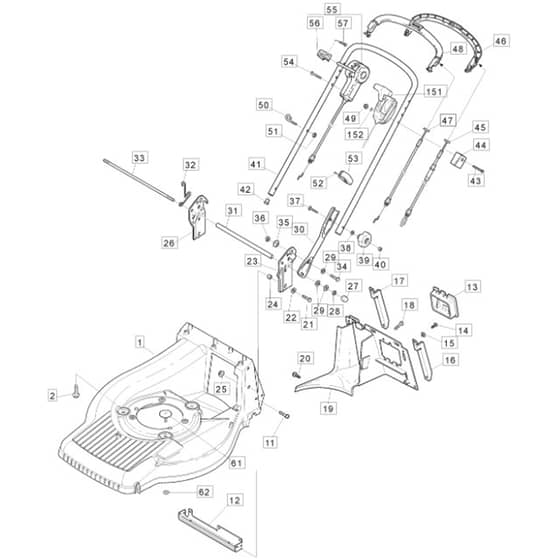

550 R - 2005 - 12-9704-80 - Mountfield Rotary Mower Handle Diagram

Name: 550 R - 2005 - 12-9704-80 - Mountfield Rotary Mower Handle Diagram
SKU: 550_r_12_9704_80_handle-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

550 R - 2005 - 12-9704-80 - Mountfield Rotary Mower Handle Diagram

Description

Mountfield 550 R Parts Diagram

Product Name - 550 R

Model Year - 2005

Model Type -

Art.N - 12-9704-80

Be the first to review this product

0 product questions

	Part No.	Details
2	MO120001064/0 Out of stock	Screw	£9.64 £8.03
11	MO112735592/0 Out of stock	Screw	£1.87 £1.56
13	MO322109531/0 Out of stock	Battery Holder	£14.34 £11.95
14	MO112728124/0 Out of stock	Screw	£1.48 £1.23
15	MO112523040/0 In stock	Washer	£1.48 £1.23
18	MO112735664/0 In stock	Screw	£1.34 £1.12
19	MO322108278/0 Out of stock	Rear Attachment	£38.20 £31.83
20	MO112728300/0 Out of stock	Screw	£1.48 £1.23
21	MO9997-0820-16 Out of stock	Screw	£1.40 £1.17
22	MO112523060/0 In stock	Washer	£1.48 £1.23
25	MO112293201/0 In stock	Nut	£1.61 £1.34
27	MO118203854/0 Out of stock	Ring Nut	£1.48 £1.23
28	MO112293200/0 In stock	Nut	£1.48 £1.23
30	MO381006614/0 Out of stock	Handle-Lower Part	£39.47 £32.89
32	MO122430312/0 Out of stock	Eye Link	£5.89 £4.91
34	MO112793301/0 Out of stock	Screw	£1.48 £1.23
35	MO322041955/0 Out of stock	Bushing	£1.66 £1.38
37	MO112819110/0 In stock	Screw	£1.74 £1.45
38	MO122680006/1 In stock	Washer	£1.74 £1.45
39	MO122399900/0 In stock	Knob	£1.48 £1.23
42	MO9403-0062-01 Out of stock	Plug	£1.40 £1.17
43	MO112727787/0 Out of stock	Screw	£1.74 £1.45
44	MO322551685/0 In stock	Cable Holder	£7.13 £5.94
45	MO381000697/0 In stock	Clutch Cable	£19.28 £16.07
46	MO381003297/1 In stock	Clutch Lever	£20.75 £17.29
47	MO181000687/0 In stock	Cable. Thread Engine Brake	£12.72 £10.60
47	MO181000688/0 Out of stock	Cable. Thread Engine Brake	£12.92 £10.77
48	MO381003298/1 In stock	Control Handle (Eng.Brake	£31.82 £26.52
49	MO112154510/0 In stock	Lock Nut	£1.48 £1.23
50	MO122430313/0 In stock	Eye Link	£3.74 £3.12
51	MO112292100/0 Out of stock	Nut	£1.34 £1.12
52	MO112728706/0 In stock	Screw	£1.48 £1.23
53	MO322192001/0 Out of stock	Cable Holder	£1.66 £1.38
54	MO112728702/0 Out of stock	Screw	£1.48 £1.23
55	MO381007098/0 In stock	Variator Control	£44.56 £37.13
56	MO322399809/0 Out of stock	Knob	£1.66 £1.38
61	MO322820057/0 Out of stock	Cap	£13.14 £10.95
62	MO112604899/0 In stock	Locking Washer	£1.48 £1.23
151	MO181007128/0 In stock	Throttle Cable	£23.04 £19.20
