534 WSQE_B - 2017 - 295546528/AMZ - Mountfield Rotary Mower Deck Diagram

Name: 534 WSQE_B - 2017 - 295546528/AMZ - Mountfield Rotary Mower Deck Diagram
SKU: 534_wsqe_b_295546528_amz_deck-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

534 WSQE_B - 2017 - 295546528/AMZ - Mountfield Rotary Mower Deck Diagram

Description

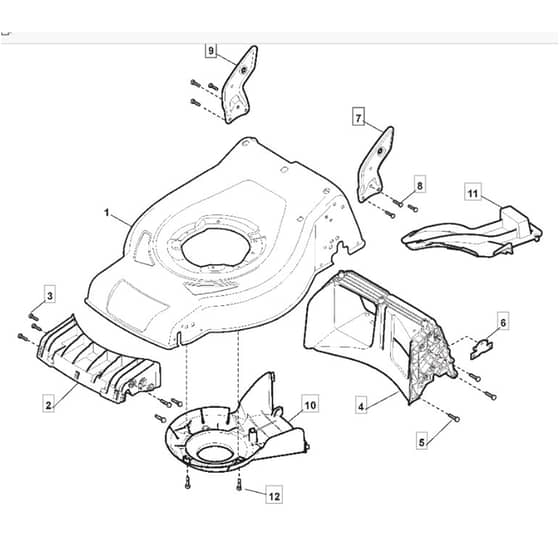

Mountfield 534 WSQE_B Parts Diagram

Product Name - 534 WSQE-B

Model Year - 2017

Model Type - CSC 534 WSQE

Art.N - 295546528/AMZ

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322108308/0 Out of stock	Rear Conveyor Assy	£13.24 £11.03
3	MO112728904/0 Out of stock	Screw	£1.48 £1.23
4	MO322108392/0 Out of stock	Rear Conveyor Assy	£19.09 £15.91
6	MO322545213/0 Out of stock	Plate	£1.66 £1.38
7	MO381005167/0 Out of stock	Left Bracket Standard Black Knob To 31-8-2017	£7.76 £6.47
7	MO381005183/1 Out of stock	Left Bracket	£9.55 £7.96
7	MO381005167/1 Out of stock	Left Bracket Standard Black Knob From 01-9-2017	£7.76 £6.47
8	MO112727801/0 Out of stock	Screw	£1.48 £1.23
9	MO381005165/0 Out of stock	Right Bracket Standard Black Knob To 31-8-2017	£7.76 £6.47
9	MO381005165/1 Out of stock	Right Bracket Standard Black Knob From 01-9-2017	£7.26 £6.05
9	MO381005181/1 Out of stock	Right Bracket	£9.17 £7.64
10	MO322060250/1 In stock	Belt Protection	£10.19 £8.49
11	MO322140244/1 In stock	Mulching Plug	£15.41 £12.84
12	MO112728903/0 In stock	Self-Tap Screw 4.8 X 25 Use 112728531.0	£1.34 £1.12
