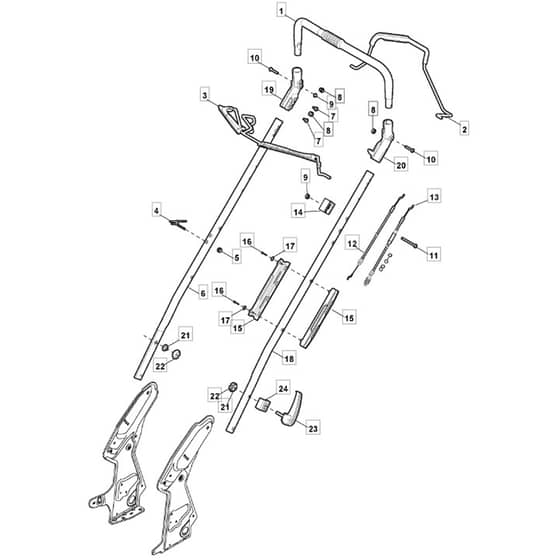

532 PD 4S AVS - 2010 - 290557033/M10 - Mountfield Rotary Mower Upper Handle Diagram

532 PD 4S AVS - 2010 - 290557033/M10 - Mountfield Rotary Mower Upper Handle Diagram
532 PD 4S AVS - 2010 - 290557033/M10 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield 532 PD 4S AVS Parts Diagram

Product Name - 532 PD 4S AVS

Model Year - 2010

Model Type - DML 554 W TR 4S

Art.N - 290557033/M10

Ref. Img. Part No. Details
  1 Handle Tube
Handle Tube
MO381006670/2 Out of stock
Handle Tube
£26.74 £22.28

  2 Lever. Driving
Lever. Driving
MO381003349/0 Out of stock
Lever. Driving
£45.83 £38.19

  3 Lever. Engine Brake Red
Lever. Engine Brake Red
MO381003344/1 Out of stock
Lever. Engine Brake Red
£47.10 £39.25

  4 Spring
Spring
MO122430309/0 Out of stock
Spring
£2.94 £2.45

  5 Nut
Nut
MO112154330/0 Out of stock
Nut
£1.48 £1.23

  6 Handle Black. Right
Handle Black. Right
MO381006895/0 Out of stock
Handle Black. Right
£33.10 £27.58

  7 Screw
Screw
MO112735662/1 Out of stock
Screw
£2.28 £1.90

  8 Bushing
Bushing
MO322041967/1 Out of stock
Bushing
£1.66 £1.38

  9 Nut
Nut
MO112154510/0 In stock
Nut
£1.48 £1.23

  10 Screw
Screw
MO112728721/0 Out of stock
Screw
£1.74 £1.45

  11 Screw
Screw
MO112727786/0 Out of stock
Screw
£1.87 £1.56

  12 Cable. Thread Engine Brake
Cable. Thread Engine Brake
MO181030066/0 Out of stock
Cable. Thread Engine Brake
£14.89 £12.41

  13 Cable Rear Drive
Cable Rear Drive
MO381030068/0 Out of stock
Cable Rear Drive
£21.26 £17.72

  14 Cable Holder
Cable Holder
MO322551639/0 In stock
Cable Holder
£13.50 £11.25

  15 Protection
Protection
MO322806644/0 Out of stock
Protection
£2.42 £2.02

  16 Screw
Screw
MO112727812/0 Out of stock
Screw
£1.48 £1.23

  17 Washer
Washer
MO112523000/1 Out of stock
Washer
£1.48 £1.23

  18 Handle Black. Left
Handle Black. Left
MO381006897/0 Out of stock
Handle Black. Left
£43.28 £36.07

  19 Joint Sleeve Grey Right
Joint Sleeve Grey Right
MO322488301/0 Out of stock
Joint Sleeve Grey Right
£23.04 £19.20

  20 Joining Sleeve Grey Left
Joining Sleeve Grey Left
MO322488303/0 Out of stock
Joining Sleeve Grey Left
£23.04 £19.20

  21 Nut
Nut
MO112154220/0 Out of stock
Nut
£1.48 £1.23

  22 Black Knob
Black Knob
MO322399835/0 Out of stock
Black Knob
£1.91 £1.59

  23 Locking Handle Lever
Locking Handle Lever
MO381103359/1 In stock
Locking Handle Lever
£4.84 £4.03

  24 Handle Bracket
Handle Bracket
MO322680017/0 Out of stock
Handle Bracket
£1.66 £1.38


Description

Mountfield 532 PD 4S AVS Parts Diagram

Product Name - 532 PD 4S AVS

Model Year - 2010

Model Type - DML 554 W TR 4S

Art.N - 290557033/M10
