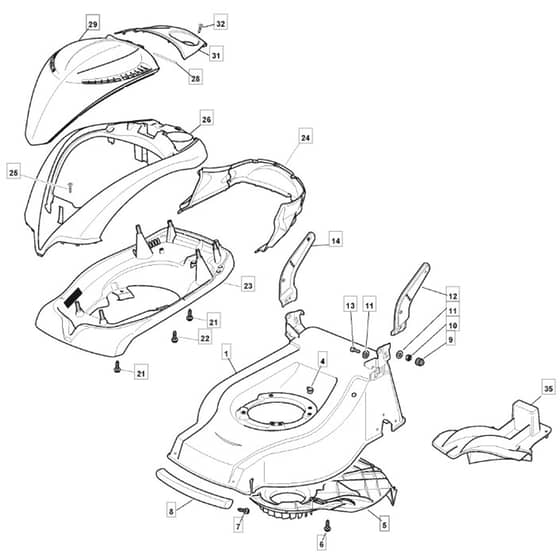

5310 PD - 2008 - 291572043/C - Mountfield Rotary Mower Chassis Diagram

Name: 5310 PD - 2008 - 291572043/C - Mountfield Rotary Mower Chassis Diagram
SKU: 5310_pd_291572043_c_chassis-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

5310 PD - 2008 - 291572043/C - Mountfield Rotary Mower Chassis Diagram

Description

Mountfield 5310 PD Parts Diagram

Product Name - 5310 PD SILENT

Model Year - 2008

Model Type - CAL 534 TR SIL

Art.N - 291572043/C

Be the first to review this product

0 product questions

	Part No.	Details
4	MO322291150/0 Out of stock	Rubber Insert	£1.66 £1.38
5	MO322060224/0 Out of stock	Belt Protection To 31-8-2009	£19.86 £16.55
6	MO112728460/0 Out of stock	Screw	£1.48 £1.23
7	MO112735404/0 Out of stock	Screw	£1.48 £1.23
9	MO118203854/0 Out of stock	Cap	£1.48 £1.23
10	MO112155000/0 In stock	Nut	£1.48 £1.23
11	MO122671653/0 Out of stock	Washer	£1.48 £1.23
13	MO112793301/0 Out of stock	Screw	£1.48 £1.23
21	MO112728300/0 Out of stock	Screw	£1.48 £1.23
22	MO112728696/0 Out of stock	Screw	£1.48 £1.23
25	MO112728706/0 In stock	Screw	£1.48 £1.23
35	MO322140234/0 Out of stock	Mulching Plug [Ca53]	£14.14 £11.78
