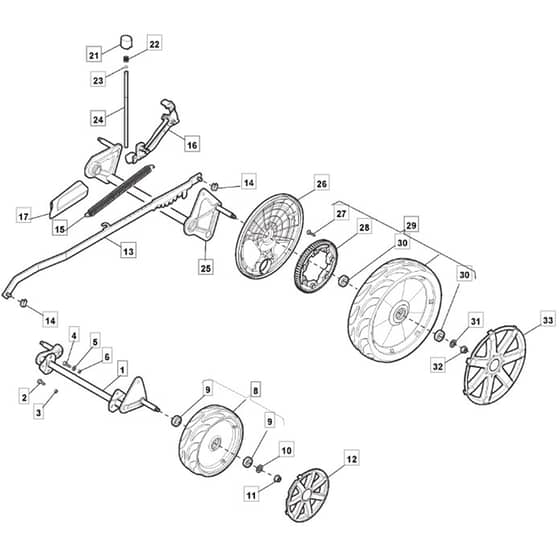

531 PD 4S AVS - 2010 - 290553043/M10 - Mountfield Rotary Mower Wheels Diagram

Name: 531 PD 4S AVS - 2010 - 290553043/M10 - Mountfield Rotary Mower Wheels Diagram
SKU: 531_pd_4s_avs_290553043_m10_wheels-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

531 PD 4S AVS - 2010 - 290553043/M10 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield 531 PD 4S AVS Parts Diagram

Product Name - 531 PD 4S AVS

Model Year - 2010

Model Type - DML 554 W TR 4S

Art.N - 290553043/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381002869/0 Out of stock	Front Wheel Axle To 31-August-2009	£49.66 £41.38
1	MO381302801/0 Out of stock	Front Wheel Axle From 01-9-2009	£44.56 £37.13
2	MO112815206/0 In stock	Screw	£1.48 £1.23
3	MO112154510/0 In stock	Nut	£1.48 £1.23
4	MO112727799/0 Out of stock	Screw	£1.74 £1.45
5	MO112523040/0 In stock	Washer	£1.48 £1.23
8	MO381007394/1 Out of stock	Wheel	£31.82 £26.52
10	MO112521350/0 In stock	Washer	£1.48 £1.23
11	MO112155000/0 In stock	Nut	£1.48 £1.23
12	MO322110687/0 Out of stock	Hub Cap Grey	£2.42 £2.02
13	MO381002035/0 Out of stock	Rod. Height Adjustment From 01-9-2009	£53.47 £44.56
14	MO112436050/0 In stock	Plate	£1.74 £1.45
15	MO122450459/1 Out of stock	Spring	£11.71 £9.76
16	MO381003337/1 Out of stock	Lever	£35.65 £29.71
23	MO112000930/0 In stock	Benzing Ring	£1.48 £1.23
25	MO381002899/0 Out of stock	Rear Wheel Axle From 01-9-2009	£62.38 £51.98
26	MO322600179/0 Out of stock	Internal Wheel Protectection	£5.86 £4.88
27	MO112728706/0 In stock	Screw	£1.48 £1.23
28	MO322120113/0 Out of stock	Wheels Crown	£11.08 £9.23
29	MO381007398/1 Out of stock	Wheel	£57.29 £47.74
30	MO119216035/0 In stock	Bearing	£3.35 £2.79
33	MO322110599/0 Out of stock	Diamond Hub Cap D.300 [Grey]	£4.20 £3.50
