531 PD 4S AVS - 2010 - 290553043/M10 - Mountfield Rotary Mower Engine Diagram

Description

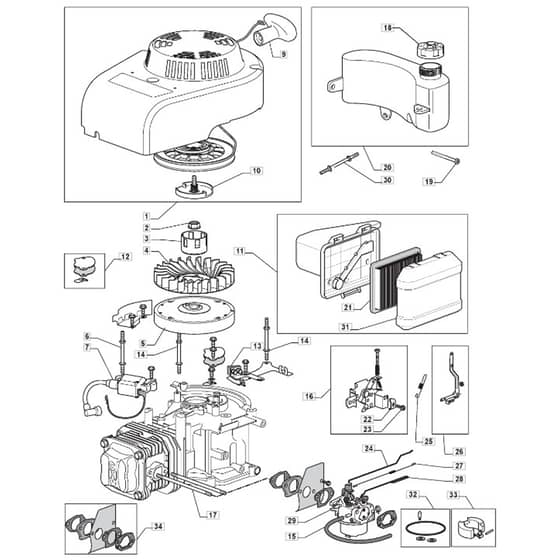

Mountfield 531 PD 4S AVS Parts Diagram

Product Name - 531 PD 4S AVS

Model Year - 2010

Model Type - DML 554 W TR 4S

Art.N - 290553043/M10

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118550277/1 Out of stock	Starter Assy	£92.40 £77.00
2	MO118550336/0 Out of stock	Nut	£5.76 £4.80
3	MO118550335/0 Out of stock	Starter Cup	£21.42 £17.85
4	MO118550254/0 Out of stock	Flywheel Fan	£19.88 £16.57
5	MO118550253/0 Out of stock	Flywheel Ass.Y	£91.06 £75.88
6	MO118550301/0 Out of stock	Stud Bolt	£6.29 £5.24
7	MO118550255/1 In stock	Electronic Coil	£50.88 £42.40
9	MO118550274/0 Out of stock	Starter Handle	£14.72 £12.27
10	MO118550275/1 In stock	Starter Pawl Set	£11.65 £9.71
11	MO118550737/0 In stock	Air Cleaner Assy	£22.50 £18.75
13	MO118550376/0 Out of stock	Flywheel Brake Assy	£37.49 £31.24
14	MO118550302/0 Out of stock	Stud Bolt	£7.51 £6.26
15	MO118550428/0 Out of stock	Fuel Pipe	£6.90 £5.75
16	MO118550259/0 Out of stock	Remote Control Assy	£28.12 £23.43
17	MO118550299/0 Out of stock	Stud Bolt	£7.50 £6.25
18	MO118550943/1 In stock	Fuel Cap	£14.72 £12.27
19	MO118550314/0 In stock	Fuel Filter	£4.15 £3.46
20	MO118550316/1 Out of stock	Fuel Tank	£40.18 £33.48
21	MO118550257/0 In stock	Air Filter	£11.05 £9.21
23	MO118550338/0 Out of stock	Screw	£6.70 £5.58
25	MO118550261/0 Out of stock	Spring	£2.68 £2.23
27	MO118550263/0 Out of stock	Spring	£2.68 £2.23
28	MO118550265/0 Out of stock	Choke Control Rod	£3.18 £2.65
29	MO118550252/0 Out of stock	Carburetor	£66.95 £55.79
30	MO118550315/0 Out of stock	Stud Bolt	£7.37 £6.14
31	MO118550396/0 Out of stock	Air Cleaner Cover	£23.44 £19.53
32	MO118550388/0 Out of stock	Kit Repair. Carburettor	£13.93 £11.61
33	MO118550389/0 In stock	Kit Repair	£9.17 £7.64
34	MO118550249/0 Out of stock	Carburettor Gasket Set	£17.54 £14.62
