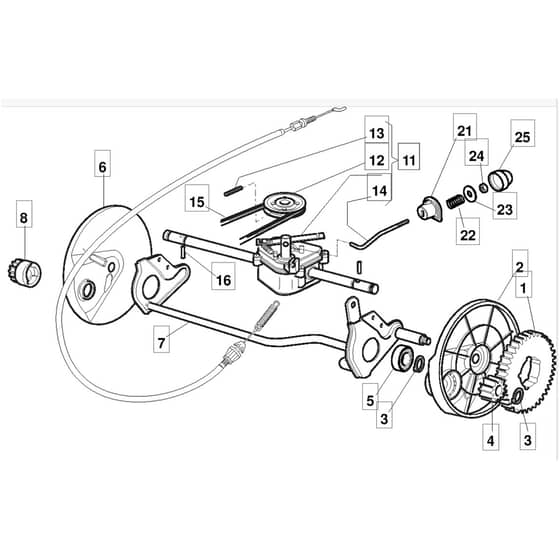

513 PD - 2008 - 294538143/UM8 - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield 513 PD Parts Diagram

Product Name - 513 PD

Model Year - 2008

Model Type - TD 534 TR 4S

Art.N - 294538143/UM8

Be the first to review this product

0 product questions

	Part No.	Details
1	MO122120105/2 Out of stock	Ring Gear	£9.44 £7.87
2	MO122600093/0 Out of stock	Left Wheel Protection	£3.22 £2.68
3	MO112608600/0 Out of stock	Seeger	£1.48 £1.23
4	MO122570120/1 In stock	Left Pinion	£7.03 £5.86
5	MO119216035/0 Out of stock	Bearing	£3.35 £2.79
6	MO122600092/0 Out of stock	Right Wheel Protection	£3.22 £2.68
7	MO381000147/0 In stock	Rear Wheel Axle	Was £26.74 £22.28 Special Price £17.23 £14.36
8	MO322570138/0 In stock	Right Pinion	£7.03 £5.86
11	MO181003092/0 In stock	Gear Box (General Transmission) From 01-9-2005	£107.80 £89.83
11	MO181003076/1 Out of stock	G.T. Gear Box (General Transmission) From 01-9-2003 To 31-8-2005	£115.16 £95.97
11	MO181003081/1 Out of stock	Gear Box Bi.Ci.Di (Bi. Ci. Di.) From 01-9-2005	£137.95 £114.96
11	MO181003059/2 Out of stock	Gear Box (General Transmission) To 31-8-2003	£140.60 £117.17
12	MO122601909/0 In stock	Pulley	£5.35 £4.46
13	MO112645705/0 Out of stock	Elastic Pin ø5X32	£1.48 £1.23
14	MO122033283/0 In stock	Adjustment Rod (General Transmission)	£4.43 £3.69
15	MO135063902/1 In stock	Belt	£9.44 £7.87
16	MO122753000/0 In stock	Pin	£1.48 £1.23
21	MO122041957/1 Out of stock	Bushing	£1.48 £1.23
22	MO122450063/0 Out of stock	Spring	£1.48 £1.23
23	MO322680009/0 Out of stock	Washer	£1.52 £1.27
24	MO112154510/0 In stock	Nut	£1.48 £1.23
25	MO122110230/0 In stock	Hub Cover	£1.48 £1.23
